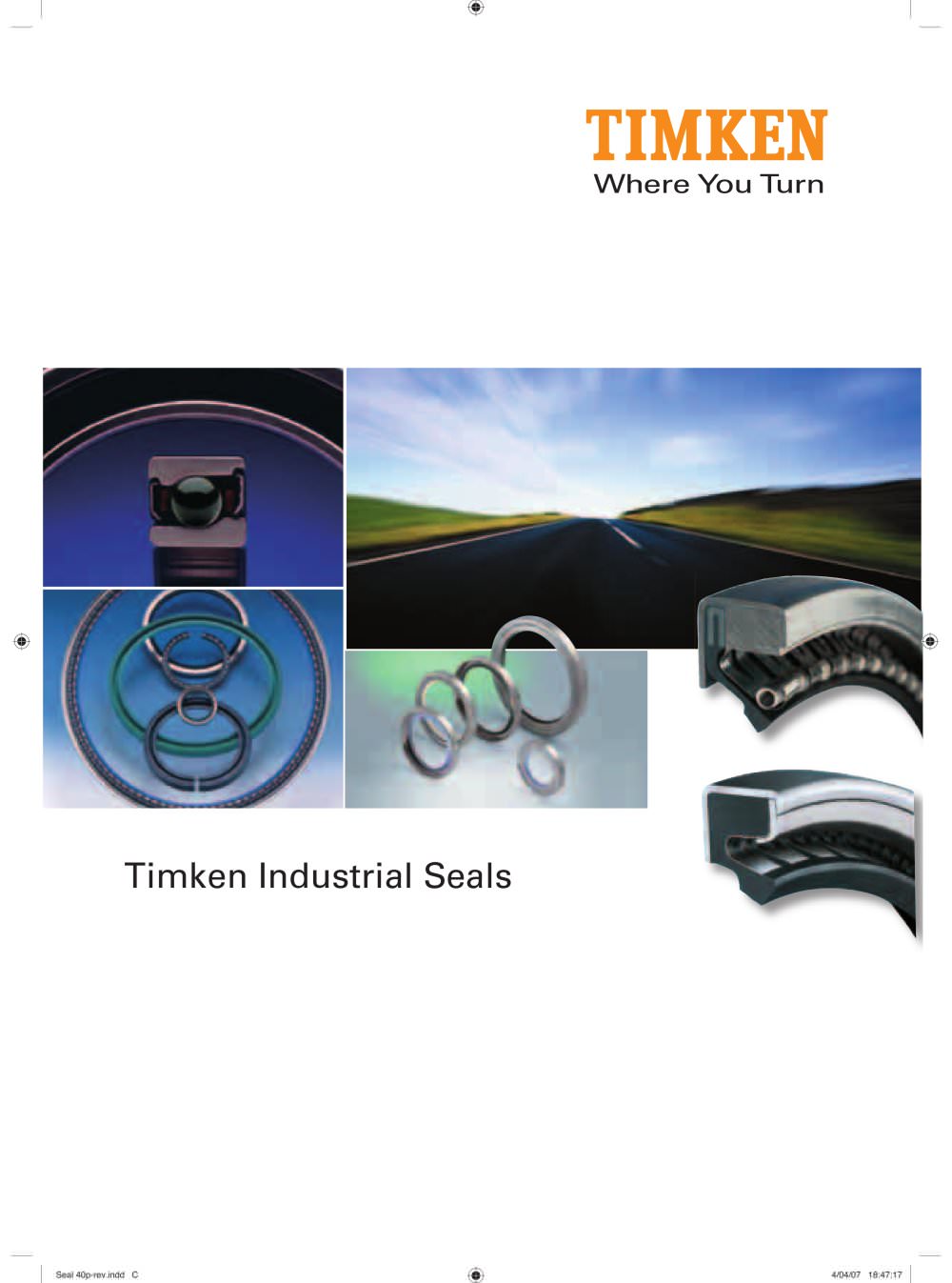

Timken Industrial Seals

Timken Industrial Seals

Product catalog summary

Overview: Timken Industrial Seals are designed for high performance in challenging industrial applications, using special elastomers for durability and resistance to abrasion, temperature, and chemicals. The seals are color-coded for easy identification.

Seal Models and Features:

Model 64: Suitable for harsh conditions in industries like pulp, paper, aluminum, and steel, handling large misalignments and high speeds with a unique spring assembly.
Model 53 and 63: Designed for smaller diameters and lower speeds, similar to Model 64 but without a garter spring.
Model 59: Combines Model 64's features with easier installation using a vulcanized finger spring.
Model 23 and 26: Used in heavy machinery, available in split versions for challenging installations, requiring a cover plate for non-pressurized applications.

Technical Specifications:

Available in materials like silicone and MILL-RIGHT® compounds for various applications.
Designed for specific shaft diameters, speeds, and misalignments with detailed tolerances and installation dimensions.
Sealing surface requirements include specific surface finish and hardness for optimal performance.

Universal Oil Seals: Versatile seals available in split and endless versions, handling significant radial misalignment and dynamic runout, with pressure-resistant models.

Installation and Maintenance:

Seals require a retainer ring for increased hermeticity.
Housing bores should be chamfered for easier installation.
Seals should be checked for damage and lubricated before installation.

Warnings: Proper maintenance and handling are crucial to prevent equipment failure and ensure safety.

PS-SEAL® Series Overview: High-performance sealing solution using GYLON® material for elasticity, low friction, and minimal wear, suitable for high speeds, temperatures, and pressures, resistant to chemicals, and applicable in industries like food and pharmaceuticals.

Specifications: Suitable for speeds up to 45 m/s, temperatures from -60°C to +260°C, and pressures up to 25 bar. Shaft surface requirements include specific roughness and hardness levels.

Applications: Used in centrifuge machinery, compressors, mixers, and pumps, effective under pressurized and vacuum conditions.

Product Versions: Includes PS-SEAL Standard, Lip, Special, and Floating Seal Device, catering to different application needs.

ATEX Conformity: Can be manufactured to comply with ATEX Directive 94/9/EC for safety in explosive atmospheres.

Conclusion: PS-SEAL series offers a reliable sealing solution for demanding applications, providing an alternative to mechanical seals and packings.

Additional Information: Includes installation instructions, application limits, and recommendations for consulting specialists for customized solutions. Contact information and application data sheets are available for further inquiries.
