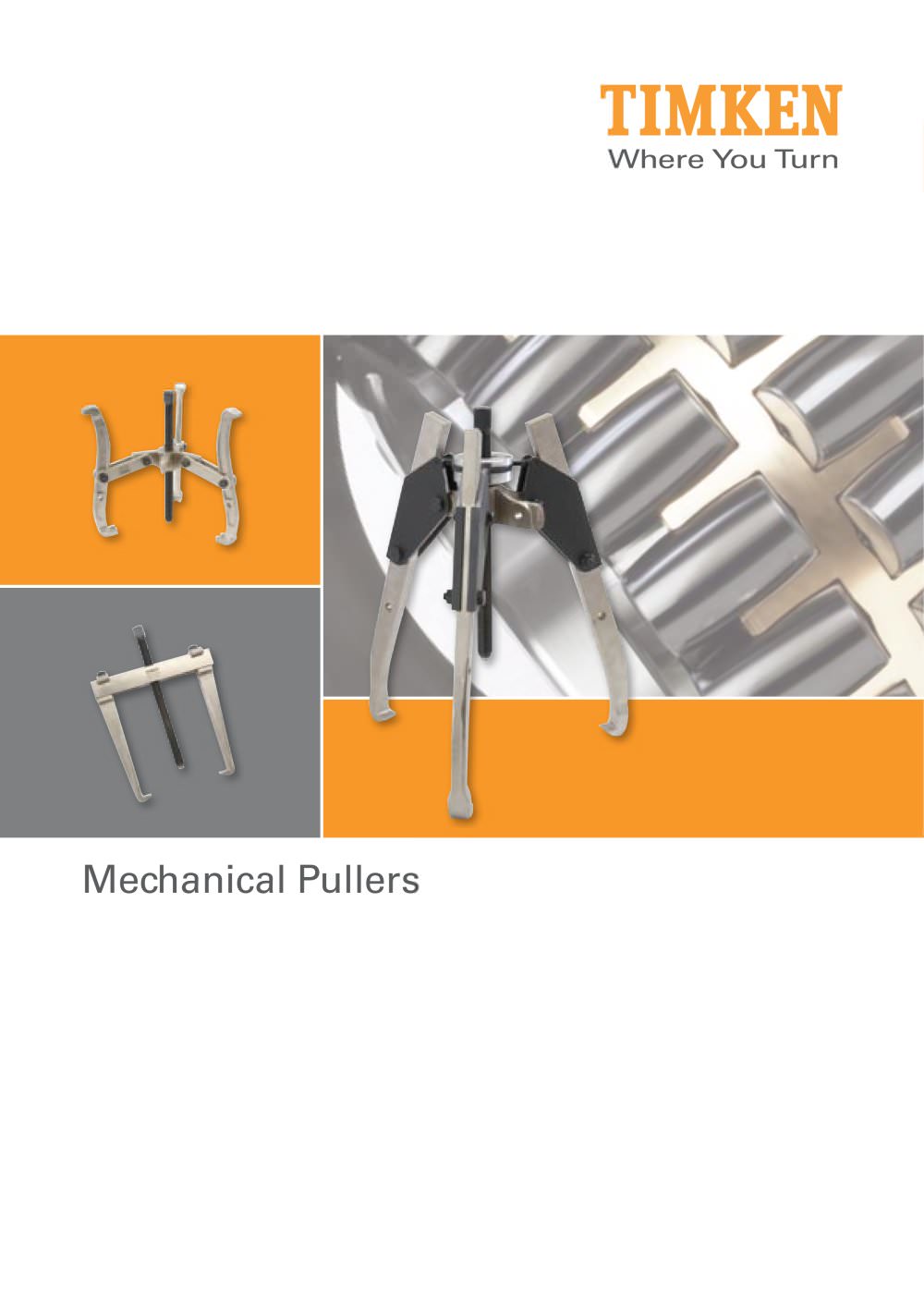

Mechanical Puller Catalog

Mechanical Puller Catalog

Product catalog summary

Overview
Timken offers a wide range of mechanical pullers designed to facilitate maintenance tasks and extend equipment life. These tools are crucial for the safe and efficient removal of bearings and other shaft-fitted components.

Mechanical Pullers
Timken provides various models, including two-arm and three-arm designs. Two-arm models are ideal for compact spaces, while three-arm models ensure equal load distribution. All models can remove bearings, wheels, bushings, gears, and pulleys.

Series C1000 Standard Duty Pullers
These pullers are designed for quick and safe removal of components, with withdrawal forces ranging from 2 to 20 tons.

Series C9100 Heavy Duty Pullers
These are designed for tougher applications, featuring pre-cast arms for durability and available in metric spindle dimensions.

Series C1800 Multiple Puller Sets
These sets are versatile, designed for field service engineers, and include multiple jaw sets for internal and external pulling actions.

Series C1700 Thin Arm Pullers
Designed for confined spaces, these pullers ensure equal load distribution with their three-arm models.

Series E1400 and E1300 Pullers
These include self-centering three-arm external pullers with adjustable arms for various applications.

Series E1700 Electric Motor Ball Bearing Extractor
Specifically designed for removing electric motor ball bearings, optimized for maximum bearing outer diameter.

Series E1200 Bearing Separator
Developed to extract bearings, gears, and other tight shaft-fitted parts, providing support with flat separator plates.

Customer Support
Timken offers field support to help customers choose appropriate tools and identify solutions to enhance productivity and cost savings.

Specifications
Details on internal pullers, ball bearing extractors, external puller sets, and stud extractors, including models, dimensions, and weights.

Procedures
Instructions on using internal pullers and ball bearing extraction, including necessary preparations and tool engagement.

Models and Components
Details on puller sets, point protectors, and stud extractors, including component selection and assembly.

Key Data
Dimensions and weights are provided in metric and imperial units, with specific Timken part numbers for identification and ordering.

Conclusion
The document serves as a comprehensive guide for selecting and using Timken's mechanical pullers and bearing removal tools, offering essential specifications and procedural guidance for effective application.
