Introduction
The document provides an overview of the spring testing machines manufactured by Jinan Shijin Group Co., in collaboration with Time Group Inc. It highlights the company's extensive experience, technological advancements, and strategic partnership that enhance their capabilities.

Company Overview
Jinan Shijin Group Co., established in 1952, is a leading manufacturer of testing machines in China. The company produces 6000 sets of testing machines annually and has reached international standards through a strategic alliance with Time Group Inc. in 2003.

Technological Advancements
The company focuses on continuous technological development with a team of over 60 professional technicians. They have launched several new testing machines into the international market, emphasizing innovation, speed, and cost-effectiveness.

Product Specifications
The document details various models of spring testing machines:

TLS-S100A and TLS-S500/1000A: Used for testing helix springs for tension and compression, featuring high-resolution AD conversion chips and digital calibration compensation.
TLS-V200 and TNS-S5000A: Designed for precise testing of small springs and torsional springs, respectively, with features like auto-zeroing and overload protection.
TLS-YxxII Series: Uses frequency conversion techniques for high-speed testing, offering features like peak value retention and overload protection.

Key Features and Applications
The machines are widely used by spring manufacturers, low voltage component factories, power machinery factories, and educational institutes. They offer features like digital display, manual and automatic loading, and overload protection, ensuring high precision and efficiency.

Conclusion
The document underscores the commitment of Jinan Shijin Group Co. and Time Group Inc. to innovation and excellence in the field of testing machines, providing reliable and efficient solutions for various industrial applications.

Detailed Specifications and Features
The document provides detailed specifications and features of various testing machines designed for testing the tension, compression, torsion, and fatigue of springs and other materials.

1. Tension & Compression Testing Machines (TLS-S Series):

Suitable for testing precision extension and compression springs, as well as fragile materials.
Features include dual digital display, automatic return to initial position, peak value holding, overload protection, and data retrieval.
Specifications vary by model, with maximum test loads ranging from 100N to 20000N and testing speeds from 0.5 to 600 mm/min.

2. Torsion Testing Machines (TNS-S Series):

Used for testing the torsion angle and torque of various springs and elastic components.
Features include digital display of torsion angle and torque, automatic revision of angle displacement, and overload protection.
Maximum test torque ranges from 500 N.mm to 100000 N.mm.

3. Micro-computer Controlled Testing Machines (TLS-W Series):

Designed for intensity tests and mechanical performance analysis of springs.
Features include automatic data collection, overload protection, and powerful data processing capabilities.
Max load capacities range from 1N to 20000N.

4. Pneumatic Spring Compression Sorting Testing Machines (TLS-YQ Series):

Utilize pneumatic loading for quick testing of large quantities of springs.
Features include adjustable test space, cylinder travel, and operating speed.
Capacity is 10N with a minimum reading of 0.001 kN.

5. Mechanical Spring Tension & Compression Testing Machines (TLS-J Series):

Used for testing load and displacement of coil helix springs.
Features include dial display, manual or mechanical loading, and overload protection.
Maximum test loads range from 1000N to 5000N.

6. Hydraulic Spring Compression Testing Machines (TYE-W Series):

PLC controlled and hydraulic loaded, suitable for testing large springs.
Features include automatic data processing and adjustable test space.
Capacity ranges from 300kN to 500kN.

7. Spring Fatigue Testing Machines (TPJ Series):

Designed for fatigue testing of coil helix springs.
Features include adjustable amplitude and frequency, and auto-stop functions.
Max static load ranges from 1000N to 50000N.

8. Software Features:

Windows-based control software with customizable test norms and flexible operational methods.
Includes powerful data collection, diagram analysis, and statistical functions.
Allows for customized test reports and automatic result calculations.

Catalog excerpts

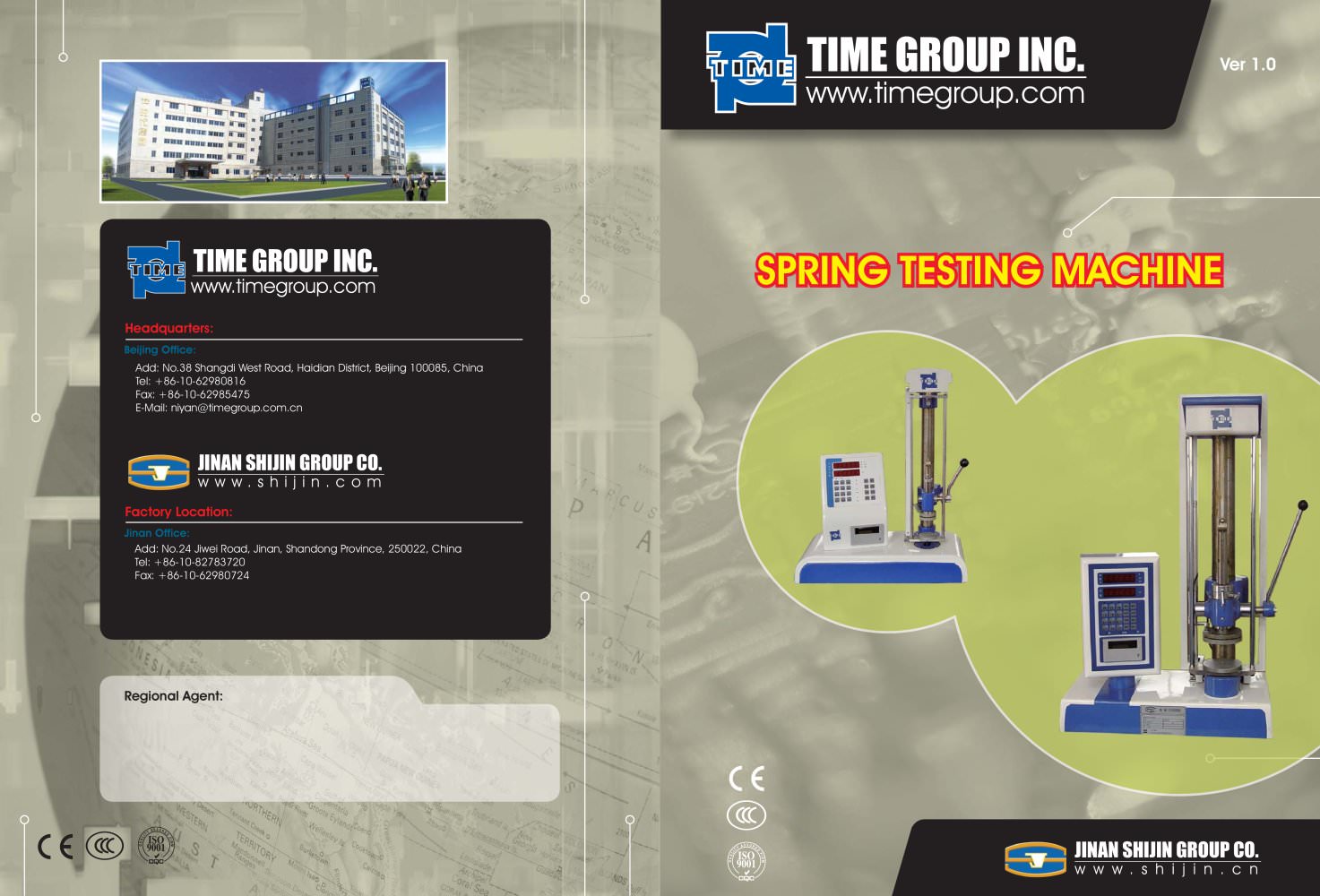

Ver 1.0 SPRING TESTING MACHINE JINAN SHIJIN GROUP CO. w w w . s h i j i n . c n Ve Regional Agent: Headquarters: Beijing Office: Add: No.38 Shangdi West Road, Haidian District, Beijing 100085, China Tel: +86-10-62980816 Fax: +86-10-62985475 E-Mail: [email protected] Add: No.24 Jiwei Road, Jinan, Shandong Province, 250022, China Tel: +86-10-82783720 Fax: +86-10-62980724 Factory Location: JINAN SHIJIN GROUP CO. w w w . s h i j i n . c o m Jinan Office:

Open the catalog to page 1

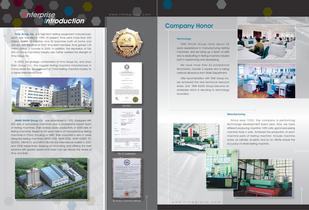

Company Honor Technology: TIME SHIJIN Group have about 60 years experience in manufacturing testing machines, and we bring up a team of elite who is dedicating in testing machine industry both in researching and developing. We have more than 60 professional technicians, include 3 experts who is taking national allowance from State Department. After recombination with TIME Group Inc. we achieved the real technical resource share, and TIME SHIJIN Group become an enterprise which is devoting to technology innovation. Manufacturing: Since year 1952, the company is performing technology development...
