Voltage Sensor

Product catalog summary

Description: The Model 160B(R) Voltage Sensor is designed to detect over or under voltage conditions. It features a single set-point mechanism where input voltages above the setpoint energize the output contacts, and voltages below de-energize them. The dead band between pull-in and drop-out is less than one percent. Wiring is facilitated through 1/4” quick connect terminals, and the device includes a 2-second restart delay, with 'R' versions offering a 5-minute delay. The setpoint range is adjustable to approximately 35% of the maximum voltage, and it operates across frequencies from 50 to 400 Hz.

Specifications: The Model 160B is available in three versions: 160B120 (120VAC), 160B240 (208/240VAC), and 160B480 (480VAC). The AC adjustment ranges are 80-130V, 160-250V, and 380-480V respectively. It features a short cycle delay of 2 seconds (5 minutes for 'R' versions), set-point stability of ±1%, and a dead band of approximately 5%. The trip delay is fixed at 0.5 seconds, and the contact rating is SPDT 10A at 240VAC resistive. The relay life expectancy is 10 million mechanical operations and 100,000 electrical operations at rated load. The device operates within a temperature range of -40º to +131º F and offers transient protection of 2500V for 10ms. It is housed in an ABS plastic enclosure and weighs 4 oz.

Installation: The Model 160B is a surface-mounted device that can be installed in any convenient location. Connections are made using 1/4” terminal lugs. For under-voltage sensing, connect the load control circuit to the terminal marked C and NO, and for over-voltage sensing, connect to C and NC. Adjustments can be made to set the desired trip point for under or over-voltage conditions.

Troubleshooting: If the sensor fails to operate, verify all connections, ensure the correct source voltage is present, and check all fuses. Persistent issues should be directed to the factory for assistance.

Safety: The device contains potentially hazardous voltages at its terminals. All electrical power should be removed when connecting or disconnecting wiring. Installation and servicing should be performed by qualified personnel.

Warranty: The Model 160B is warranted to be free from defects in materials and workmanship for one year from the date of purchase. Repair or replacement is available under warranty conditions.

Catalog excerpts

Nominal AC Voltage 120VAC 208/240VAC 480VAC AC Adjustment Range 80-130V 160-250V 380-480V Frequency 50 - 400 Hz Short Cycle Delay Short cycle restart delay - 2 seconds ғR versions - 5 minutes Set-point Stability Ա 1% Dead Band Approx. 5% Trip Delay . 5 seconds - fixed Contact Rating SPDT 10A at 240VAC resistive Expected Relay Life Mech: 10 million operations Elec: 100,000 operations at rated load Termination Method 1/4 quick connect terminals Operating Temperature - 40Ժ to +131 F Transient Protection 2500V for 10msec Burden 5mA maximum > Enclosure Material ABS plastic Weight 4 oz. > ORDERING INFORMATION order by: MODEL RESTART DELAY VOLTAGE options: 160B R 120 VAC 240 VAC 480 VAC example: 160B - R - 240 orders a 240VAC sensor w/ optional 5 min delay. Remove the ړR for the standard 2 second delay Doc No. 87A255 08/07 ԩ 2007 > TIME MARK CORPORATION TIME MARK is a division of size="-2">

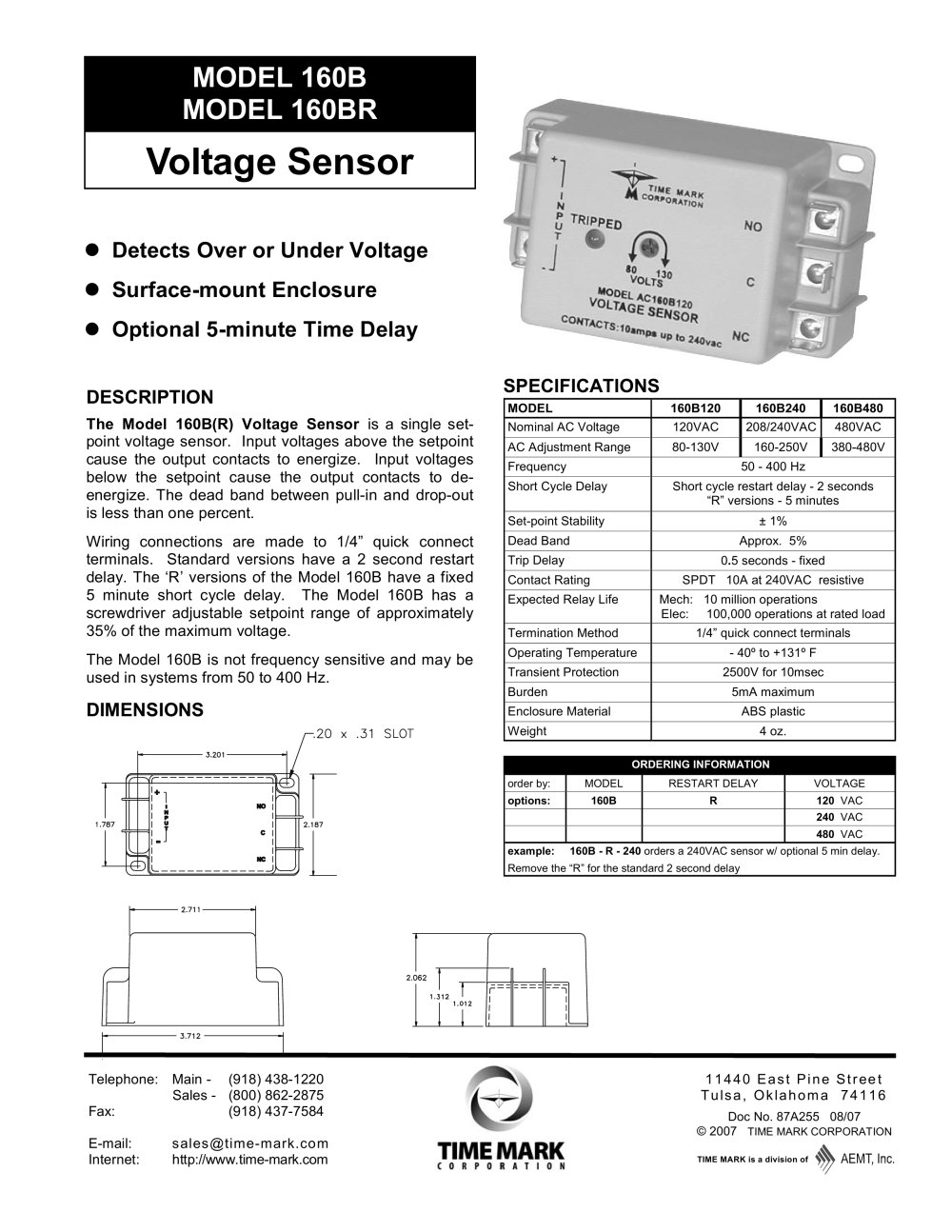

Open the catalog to page 1

The Model 160B is a single setpoint voltage sensing relay. This surface-mounted device can be installed in any convenient location. Attach 1/4 terminal lugs to the input voltage wires, and connect to the terminals marked INPUT (refer to the Typical Application diagram).Apply power. The internal relay contacts transfer when the input power is above the adjustable trip point. > For under voltage sensing , connect the load control circuit to the terminal marked C and NO . For over voltage sensing ,connect the load control circuit to the terminals marked C and NC . > L2L1 Note: While adjusting theModel...

Open the catalog to page 2

Voltage Sensor

Voltage Sensor
