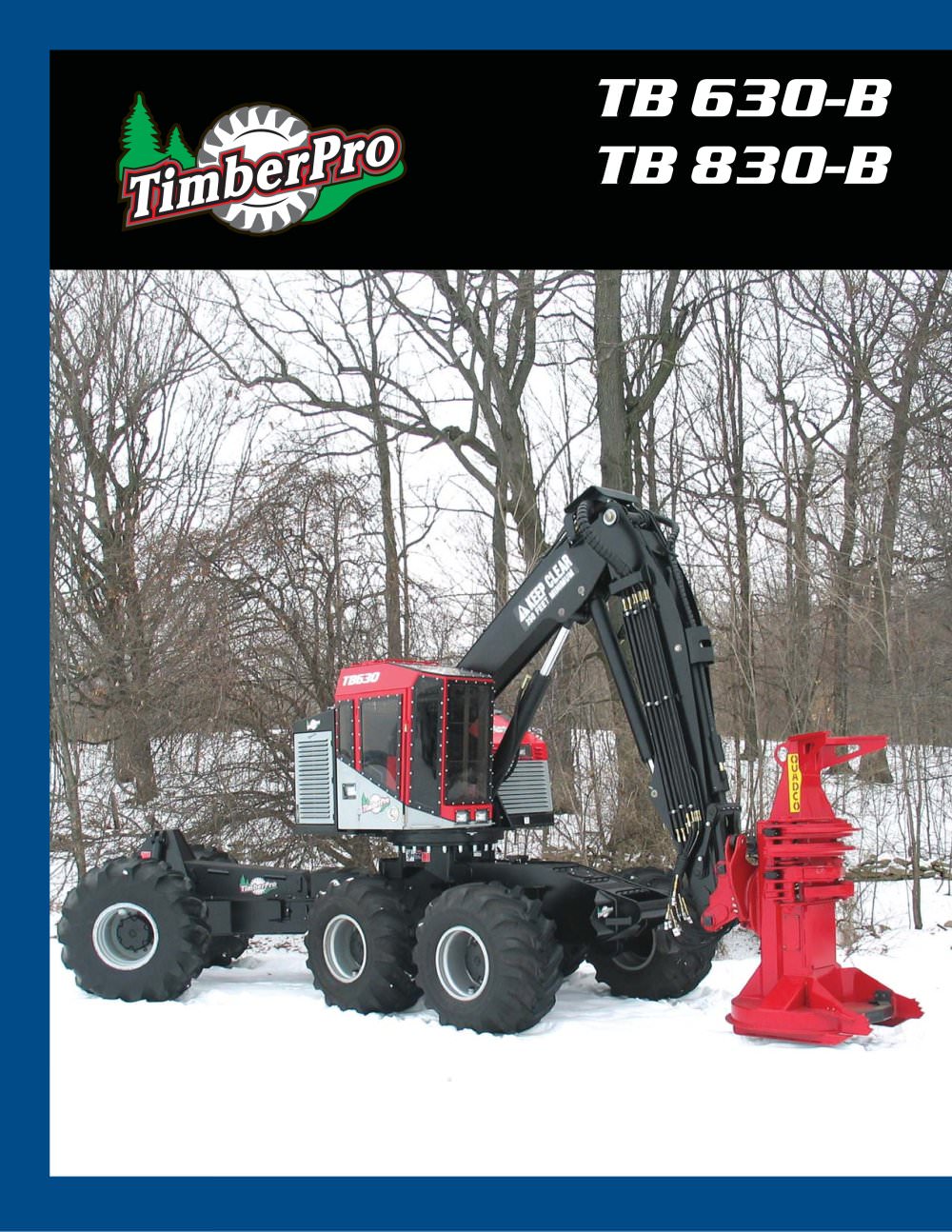

1 / 6 PagesView full catalog

wheeled harvester

Product catalog summary
Overview: The TimberPro TB 630 and TB 830 are specialized wheeled machines designed for handling large cutting attachments such as the Log Max 9000, Risley Rolly II, and Quadco disc saws. These machines are optimized for increased production, especially on rough terrain or when dealing with scattered timber. A key feature is the 360° continuous rotation, allowing operators to work efficiently around the machine.
Specifications: Both models are equipped with a Cummins 8.3 engine delivering 300 HP, a 24-volt electrical system, and a 100-gallon fuel tank. The machines feature heavy-duty bogie axles, large swing bearings, and no tail swing for enhanced visibility. The operator's cab is designed for comfort and safety, with features like a heated air-ride seat, reduced noise levels, and certification for ROPS, OPS, and FOPS.
Hydraulics: The machines come with Voac control valves and the IQAN digital MDL control system, which includes energy-saving features and easier troubleshooting. The hydraulic system includes a 60-gallon oil reservoir, 10-micron return oil filter, and a closed-loop drive circuit.
Options and Features: Optional features include a 6' squirt boom for extended reach, feller buncher booms, and various tire configurations. The machines also offer enhanced service access, dual lock cylinders for the oscillating rear axle, and an energy-efficient closed-loop wheel drive system.
Lift Capacity: The lift capacity varies depending on the attachment and reach, with the feller buncher capable of lifting up to 24,700 lbs at 10 feet and the harvester up to 12,880 lbs at 15 feet.
Additional Features: The machines include an IQAN MDL Control System for easier adjustments and CAN networking, a large hydraulic oil cooler with auto-reversing fans, and a high-temp wrap on the muffler and exhaust manifold for safety.
Contact Information: TimberPro Inc., 1407 Industrial Dr., PO Box 415, Shawano WI 54166 USA. Tel: 715-524-7899, Fax: 715-524-7898, Email: [email protected], Website: www.timberpro.com
See more

Catalog excerpts

wheeled harvester-2

The TimberPro TB 830 and TB 630 are the only wheeled machines in the world designed to handle larger cutting attachments like the Log Max 9000, Risley Rolly II and Quadco disc saws. The TimberPro line of wheeled harvester and feller bunchers are proven to increase production especially on rough terrain or when cutting scattered timber. The TimberPro line of machines come standard with 360 continuous rotation allowing the operator to always face his/her work. This feature also gives the operator the ability to harvest timber 360а around the machine. Including the option to work over the rear of...

 Open the catalog to page 2
wheeled harvester-3

A/C CondenserPump Gearbox CoolerRadiator Pump Gearbox cooler, A/C Condensor, Air to Air cooler and Radiator mounted side by side to allow less restriction of airflow and nothing to trap debris Air to Air Cooler Increased visibilty to the boom side - NEW - IQAN MDL Control Syste m Large comfortable cab with heated air-ride seat, reduced noise levels, Rops, Ops, and Fops certifiedExtra large hydraulic oil cooler with auto-reversing fans Air > (energy saving features, easier adjustments, easier troubleshooti n and CAN networking for reduced wiring) f syst e pressu r to re d >

 Open the catalog to page 3
wheeled harvester-4

f iltering e m with r ized cabin d uce dust >

 Open the catalog to page 4
wheeled harvester-5

Harvester booms w/25 (7,8m) reachSS 6Ғ (1,8m) Squirt for Harvester boomOOQuick change stick boom adapterOO Feller buncher boomsOO Live Heel AttactmentOO 2100 lbs (953kg) Counter WeightNAO Fluid in TiresOO OPTIONS830630 Fully certified for ROPS/FOPS/OPSSS ݔ lexan in all windowsSS 1ݔ lexan in front windowOO Heater & AC system SS Air filtered & cab pressurized SS AM/FM - weatherband radio SS XM satellite radio OO Seat - Air ride & heatedSS Deluxe Seat - with air, heat & lumbarOO Sliding rear window SS 2 escape routes (door & roof) SS 5 halogen lights SS 8 Xenon lights OO Automatic fire suppressionOO...

 Open the catalog to page 5
wheeled harvester-6

TOTALFRONT AXLEREAR AXLE 630 48,280 lbs (21,899 kg)28,340 lbs (12,854 kg)19,940 lbs (9,045 kg) 830 54,000 lbs (24,493 kg)44,400 (20,139 kg)9,600 (4,354 kg) LIFT CAPACITY - feller buncher (7.3 m) 24 9,000 lbs (4,082 kg) (6.1 m) 20Ғ 13,300 lbs (6,033 kg) (4.6 m) 15 17,100 lbs (7,756 kg) (3.0 m) 10Ғ 24,700 lbs (11,102 kg)(Lift Capacities do not include attachment weight) LIFT CAPACITY - harvester (9.6 m) 31.5 6,320.lbs (2,866 kg) (7.8 m) 25.5Ғ 7,540 lbs (3,420 kg) (6.1 m) 20 11,320 lbs (5,135 kg) (4.6 m) 15Ғ 12,880 lbs (5,842 kg) > TimberPro Inc.1407 Industrial Dr. Po Box 415 Shawano WI 54166 USA...

 Open the catalog to page 6
