tracked forestry harvester

Product catalog summary

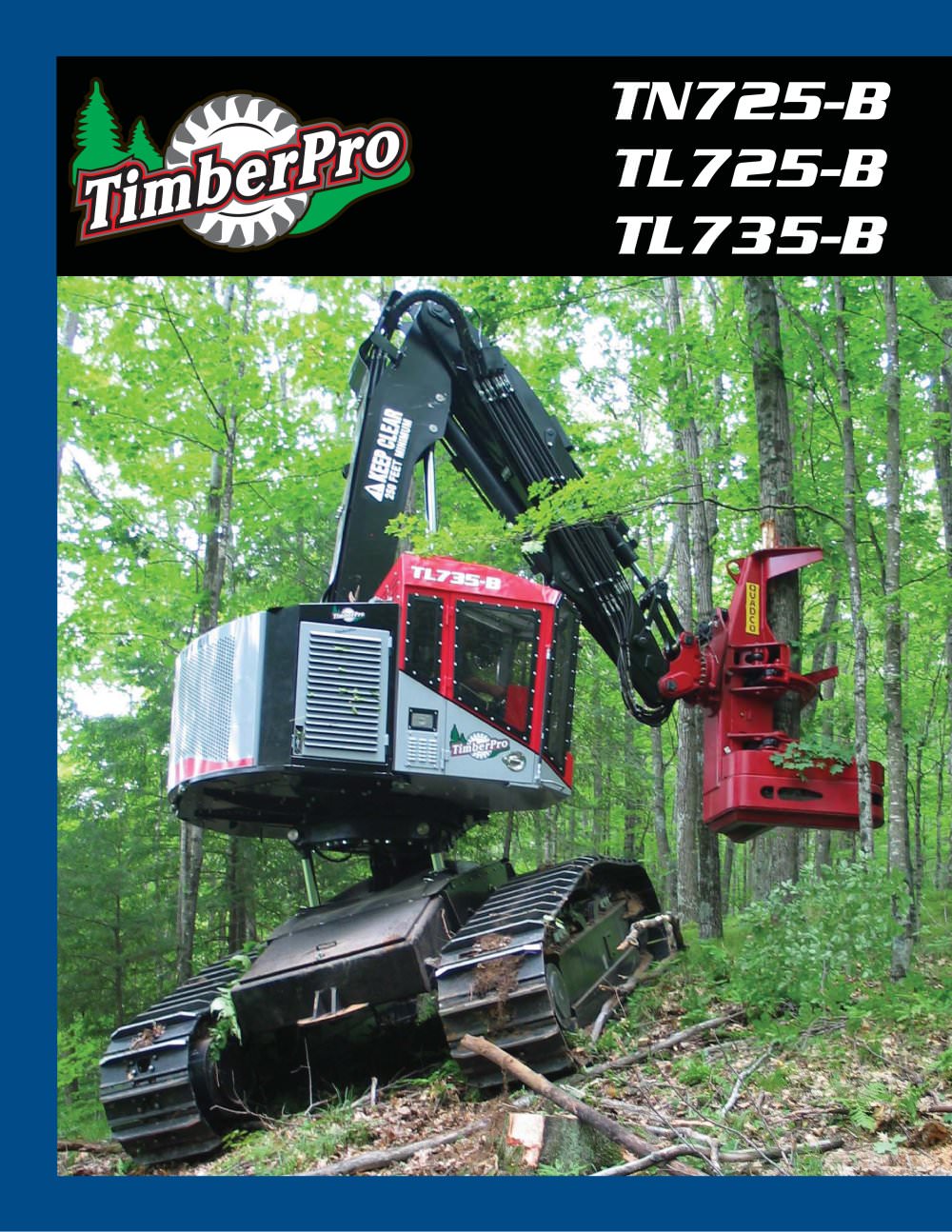

Overview: The document provides detailed specifications and features of the TN725-B, TL725-B, and TL735-B forestry machines. These machines are designed for efficient operation in forestry applications, with a focus on energy efficiency, ease of maintenance, and operator comfort.

Key Features:

Energy-efficient closed-loop drive system with a pump for each track.
Gullwing access door for easy maintenance and high-temperature wrap on muffler and exhaust manifold.
Engine divider wall to separate engine and hydraulics, with rubber cones for stabilization.
Air to Air Cooler, A/C Condenser, Pump Gearbox Cooler, and Radiator mounted side by side to reduce air flow restriction and debris trapping.
Sliding rear window for ventilation and increased visibility to the boom side.
Large comfortable cab with heated air-ride seat, reduced noise levels, and certified for ROPS, OPS, and FOPS.
IQAN MDL Control System for energy-saving features and easier troubleshooting.

Specifications:

Engine: Cummins 8.3 – 300 HP with 24-volt electrical system and auto-reversing hydraulic controlled radiator fan.
Hydraulics: Voac control valves, IQAN digital control system, and 60-gallon hydraulic oil reservoir.
Carbody & Track Options: Narrow and wide carbody options with various track shoe sizes.
Operator’s Cab: Fully certified with air filtration, pressurized cabin, and multiple comfort features.

Dimensions and Capacities:

TN725B: Approximate operating weight of 49,400 lbs (22,407 kg).
TL725B: Approximate operating weight of 55,250 lbs (25,061 kg).
TL735B: Approximate operating weight of 59,680 lbs (27,070 kg).
Feller Buncher Max Reach: 23.71’ (6.86 m) with various lift capacities depending on reach.
Harvester Boom Max Reach: 31.5’ (9.60 m) with squirt and various lift capacities.

Additional Features:

Built-in auxiliary hydraulic oil storage tank and easy access lower fuel pump and filter.
Smooth under-body with recessed spring-loaded panel for maintenance access.
Strongest and simplest 4-way leveling in the industry with 24° tilt to both sides and 28° front leveling.

Catalog excerpts

Air to Air Cooler A/C CondenserPump Gearbox CoolerRadiator Pump Gearbox cooler, A/C Condensor, Air to Air cooler and Radiator mounted side by side to allow less restriction of airﬂ ow and nothing to trap debris Increased visibilty to the boom side Emergency Escape HatchMetal Tubing used where possible Sliding rear window for ventilation 1800 RPM MAX engine speed to increase fuel efficiency Energy efficient closed loop drive system(pump for each track)Gullwing access door foreasy maintainenceHigh temp wrap on muffler and exhaust manifold Engine divider wall to keep engine and hydraulics separated...

Open the catalog to page 2

- NEW - Extra large hydraulic oil cooler with auto-reversing fans IQAN MDL Control System m > (energy saving features, easier adjustments, easier troubleshooting and CAN networking for reduced wiring) g Large swing bearing with continuous rotation 120 US gallon fuel tank Large comfortable cab with heated air-ride seat, reduced noise levels, Rops, Ops, and Fops certified Only 3" of tailswing with 28" tracks installedFeller buncher booms for heavy attachmentsorOptional 6' squirt boom for dangle attachments 190 US gallon fuel tank Air filtering system with pressurized cabin to reduce dust Drop down...

Open the catalog to page 3

28 Front Leveling 7а Rear Leveling Strongest & simplest 4-way leveling in the industry. 24 Tilt to both sides 4 > " Leveling pins have tapered ends to tightly secure boss retaining areas and have over 10 inches of bushing area. Smooth under-body, with recessed 1" spring-loaded panel allowing easy access for maintenance. Built-in auxilary hydraulic oil storage tank and easy to access lower fuel pump and filter. >

Open the catalog to page 4

725735 24 DG (600 mm)S > NA Cummins 8.3 Ԗ 300 HP SS24 volt electrical system w/ 100 amp SS Auto reversing hyd controlled rad fan SS 24 SG (600 mm)OS28Ԕ SG (700 mm)OO 36 TG (900 mm) > NA OAuto track brakesSS Variable track speed controlSS L & S forestry ԯ́ nal drives and motors SS > 725735 Voac control valves & IQAN digital control system SSAuto reversing hyd controlled cooling fan.SS60 gallon hyd oil reservoir SS10 micron return oil ﬁ lter SS 100 mesh suction ﬁ lter w/magnet SS Close loop drive circuit (pump for each track drive) SSDrive pump gear box cooler SSHyd tank vacuum pumpSS Electric...

Open the catalog to page 5

tracked forestry harvester

tracked forestry harvester
