forestry skidder

Product catalog summary

Engine Specifications:
- Options include John Deere 250 H.P. and Cummins 300 H.P. electronic engines.
- Features a 24-volt electrical system with a 100 amp alternator and an auto-reversing hydraulic controlled radiator fan.
- Fuel capacity is 100 gallons.

Hydraulics:
- Equipped with VOAC control valves and IQAN digital control system.
- Hydrostatic 2-speed transmission with speeds up to 12 mph.
- Includes mechanical locking differentials and auto-reversing hydraulic controlled cooling fans.
- Hydraulic oil reservoir capacity is 60 GPM with 10-micron return oil filters and 100 mesh suction with magnet.

Optional Features:
- Forwarder booms with 25’ 1” reach and 6’ squirt boom for 31' 1" reach.
- Quick change stick boom adapter and feller buncher booms available.
- Additional options include live heel, forwarder bunks, headache rack, and various grapple types.

Tires:
- Options include Primex 700, Primex 750, and Firestone 28L (with 23L dual tires only).

Axles & Driveline:
- TF 810 (15 ton), TF 830 (20 ton), and TF 840 (22 ton for severe duty) axles.
- Driveline features 8.5c with roller bearing joints.

Operator's Cab:
- Fully certified for ROPS/FOPS/OPS with 1/2” Lexan in all windows.
- Equipped with Eagle heater/AC system, AM/FM radio, 10 disc CD player, air ride heated seat, and sliding rear window.
- Safety features include 2 escape routes, 5 halogen lights, 5 Xenon HID lights, automatic fire suppression system, and fire extinguishers.

Benefits of Gullwing Design:
- Shields engine compartment from hydraulics to prevent fires.
- Insulated engine exhaust reduces noise and fire risk.
- Provides easier access for maintenance and repair.

Specifications:
- Base machine weights: TF 810 (48,620 lbs), TF 830 (51,920 lbs).
- Lift capacities vary by reach, with maximum at 25,000 lbs for 10' reach on TF 830.

Optional Configurations:
- Machines can be configured with feller buncher booms, live heel, and custom trailers.
- Features 360° continuous rotation for versatile operation.
- Quick detach boom allows conversion from forwarder to harvester in about 10 minutes.

Additional Features:
- Heavy-duty steel cast frame articulation joint with caliper frame lock.
- Large comfortable cab with reduced noise levels and certified safety standards.
- Adjustable bunks and choice of machine colors: Blue, Green, or Red.

Catalog excerpts

Benets of Gullwing Design ► Engine compartment completely shielded from the hydraulics to help prevent res. ► Engine exhaust insulated to help prevent res and reduce noise. ► Rubber positioining cones to help strengthen upper when gullwing door is closed. ► Provides platform to stand on when doing machine service. ► Easier access to major components for maintenace and repair. Ladder for access to the work platform. TimberPro's front and rear axles track perfectly even in the tightest turns. STANDARD & OPTIONAL FEATURES ENGINE AXLES & DRIVELINE

Open the catalog to page 2

TimberPro Inc reserves the right to change specifications without notice or obligation. Product illustrations may be equipped with non-standard equipment. E-Mail: [email protected]

Open the catalog to page 3

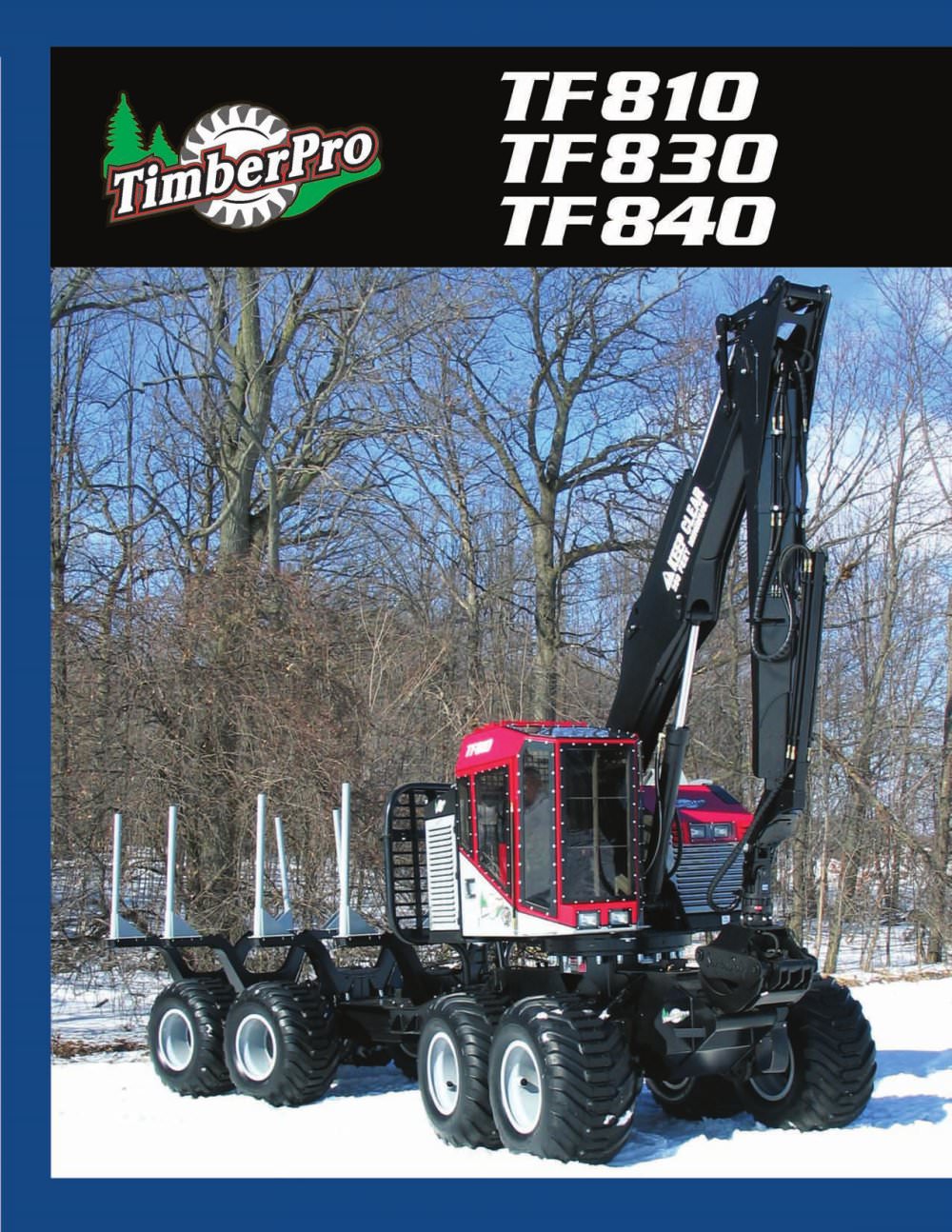

Stability, Strength and Versatility The TimberPro TF 830, TF 840 and TF 810 are the most versatile wheeled machines in the world today. The TimberPro line of machines come standard with 360° continuous rotation allowing the operator to always face his/her work. This feature also gives the operator the ability to remove timber from 360° around the machine. Including the option to work over the front of the machine just as well as the sides and rear. TimberPro machines have been proven effective in many other applications other than forwarding logs in the forest. Our machines can be used to move...

Open the catalog to page 4

Choice of machine colo TimberPro's improved left side visibility Large comfortable cab with heated / air ride seat, reduced noise levels, and ROPS / FOPS / OPS certied. Extra large hydraulic oil cooler. Hinged h rack allow to be low trans Easy access to transmission and drive motors. Large swing bearing w/continous swing. 100 gallon fuel tank. 15 ton (810) or 20 ton (830) Bogie Axle, congured to allow front and rear axles to track perfectly even in the tightest turns . Heavy duty steel cast frame articulation joint with caliper frame lock.

Open the catalog to page 5

ors: Blue, Green, or Red. Optional 6' squirt boom for 31.1' of reach or Feller buncher booms for heavy attachments. Increased access to all major components for service. headache ws boom wered for sport. Bunks are Adjustable from 8'2" inside dimension to 9'10" 15 ton (810) or 20 ton (830) Bogie Axle, congured to allow front and rear axles to track perfectly even in the tightest turns . This picture shows the quick change boom option. Combo units can handle harvesting attachments up to 4000 lbs (1814 kg) and can change to a grapple in about 10 minutes.

Open the catalog to page 6
