SS-25 IT - Recovery unit Explosion proof Vaccum
2Pages

{{requestButtons}}

Catalog excerpts

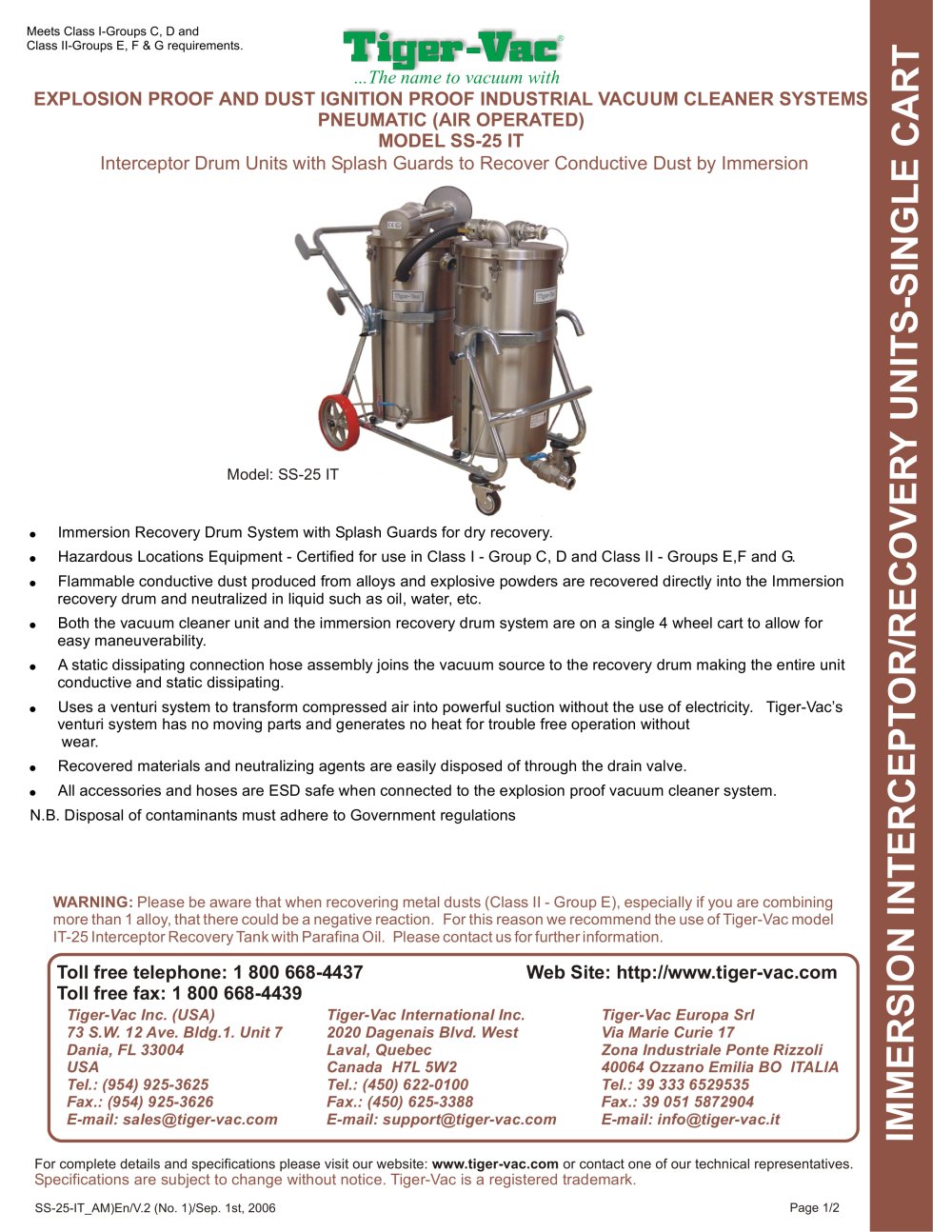

SS-25 IT - Recovery unit Explosion proof Vaccum - 1

Meets Class I-Groups C, D and Class II-Groups E, F & G requirements. Page 1/2SS-25-IT_AM)En/V.2 (No. 1)/Sep. 1st, 2006 Model: SS-25 IT Immersion Recovery Drum System with Splash Guards for dry recovery. Hazardous Locations Equipment - Certified for use in Class I - Group C, D and Class II - Groups E,F and G. Flammable conductive dust produced from alloys and explosive powders are recovered directly into the Immersion recovery drum and neutralized in liquid such as oil, water, etc. Both the vacuum cleaner unit and the immersion recovery drum system are on a single 4 wheel cart to allow for easy maneuverability. A static dissipating connection hose assembly joins the vacuum source to the recovery drum making the entire unit conductive and static dissipating. Uses a venturi system to transform compressed air into powerful suction without the use of electricity. Tiger-Vacs venturi system has no moving parts and generates no heat for trouble free operation without wear. > PIMMERSION INTERCETOR/RECOVERY UNITS-SINGLE CART Recovered materials and neutralizing agents are easily disposed of through the drain valve. All accessories and hoses are ESD safe when connected to the explosion proof vacuum cleaner system. N.B. Disposal of contaminants must adhere to Government regulations WARNING: Please be aware that when recovering metal dusts (Class II - Group E), especially if you are combining more than 1 alloy, that there could be a negative reaction. For this reason we recommend the use of Tiger-Vac model IT-25 Interceptor Recovery Tank with Parafina Oil. Please contact us for further information. > Tiger-Vac Inc. (USA)73 S.W. 12 Ave. Bldg.1. Unit 7 Dania, FL 33004 USA Tel.: (954) 925-3625 Fax.: (954) 925-3626E-mail: sales@tiger-vac.comTiger-Vac International Inc.2020 Dagenais Blvd. West Laval, QuebecCanada H7L 5W2Tel.: (450) 622-0100 Fax.: (450) 625-3388 E-mail: support@tiger-vac.comTiger-Vac Europa SrlVia Marie Curie 17 Zona Industriale Ponte Rizzoli40064 Ozzano Emilia BO ITALIATel.: 39 333 6529535 Fax.: 39 051 5872904 E-mail: info@tiger-vac.it > For complete details and specifications please visit our website: www.tiger-vac.com or contact one of our technical representatives. Specifications are subject to change without notice. Tiger-Vac is a registered trademark. >

Open the catalog to page 1
SS-25 IT - Recovery unit Explosion proof Vaccum - 2

Ideal Performance for all models with Single Venturi Systems (6mm Air Jet) Compressor Size (HP) Air Line Size Input Air Pressure/Barr Suction Intake Vacuum H Airflow CFM / > 2 O /S 30 0.5" (12.7mm) 80 PSI /5.5 1.5" (38mm) 170" (4320mm)200" (5080mm)170" (4320mm)200" (5080mm)180" (4570mm)200" (5080mm) 110 /52 30 0.5" (12.7mm) 100 PSI /6.9 1.5" (38mm) 95 /45 30 0.75" * (19mm) 80 PSI /5.5 1.5" (38mm) 110 /52 30 0.75" * (19mm) 100 PSI /6.9 1.5" (38mm) 95 /45 30 0.75" * (19mm) 80 PSI /5.5 2" (50mm) 95 /45 30 0.75" * (19mm) 100 PSI /6.9 2" (50mm) 110 /52 Maximum Performance for all models with...

Open the catalog to page 2
