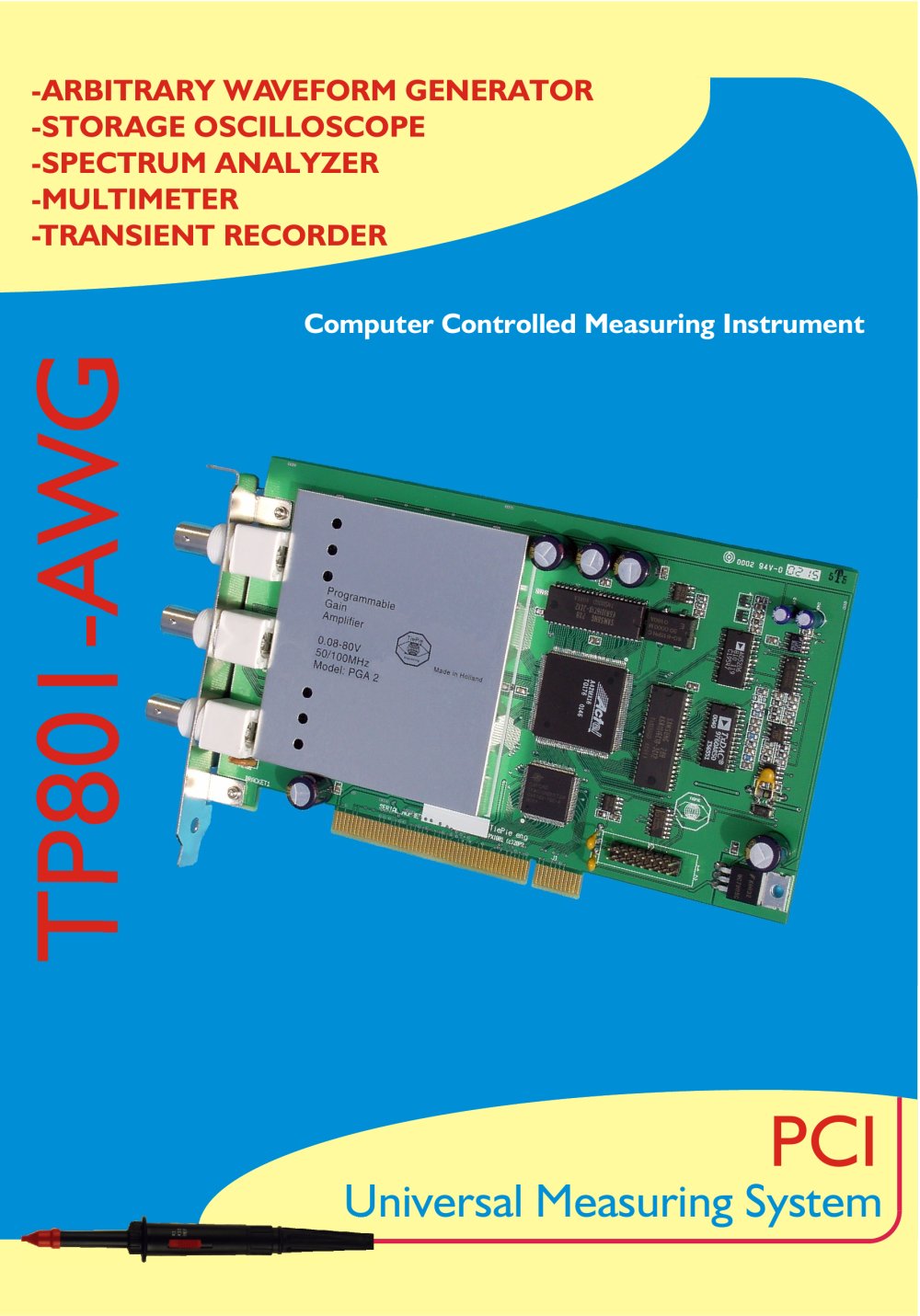

-ARBITRARY WAVEFORM GENERATOR-STORAGE OSCILLOSCOPE -SPECTRUM ANALYZER -MULTIMETER -TRANSIENT RECORDER Computer Controlled Measuring Instrument TP801-AWG Universal Measuring System PCI >

The arbitrary waveform generator offers five default signal shapes: sine wave, triangle, square, DC and white noise. The selected signal shape is immediately shown in the display of the generator.The amplitude of the signal can be freely set between 0 V and 10 V peak. A DC offset between 0 and 10 V can be applied to the signal. Also the symmetry of the signal can be changed, from 1% to 99%. The frequency of the signal can be set from almost 0 to 2 MHz. >

When a quick indication of the input signal is required, a simple click on the auto setup button will immediately give a good overview of the signal. The auto setup function ensures a proper setup of the time base, the trigger levels and the input sensitivities. Two sophisticated cursor read outs have 21 possible read outs. Besides the usual read outs, like voltage and time, also quantities like rise time and frequency are displayed. >

The common way to examine electrical signals is in the time domain, using an oscilloscope. The time domain is used to determine amplitude, time and phase information, which is necessary to describe the behaviour of an electrical system. Not all electrical systems can be characterised in the time domain. Circuits like filters, amplifiers, oscillators, mixers, modulators and detectors can be characterised best by their frequency behaviour. That frequency behaviour is best obtained by observing the electrical signals in the frequency domain. To display the frequency domain, an instrument is...

For measuring slowly changing signals (e.g. the temperature change in a room) the transient recorder is the most suitable instrument.The transient recorder is a two channel, direct registering measuring instrument, displaying the changes of the input signal graphically on the screen or on paper.The transient recorder measures at settable, fixed times and processes the measured value if necessary. The number of measurements to be taken is also settable.The transient recorder measures the input signals at adjustable times. The time between two measurements is adjustable from 0.01 second to...

TP801-AWG PCI Software TP801-AWG PCI Hardware Read outs:Output impedance: Frequency range: True RMS, Peak-Peak, Mean,50 Ohm Maximum, Minimum, dBm, Power,0-2 MHzCrest factor, Frequency, Duty cycle,0.01HzRise time left and right, slew rate left50 MHz 0-10 voltand right, THD (in spectrum analyzer)100 MHz0-0.1 Volt 4096 stepsuser selectable0.01 Hz0.1-0.9 Volt 4096 stepsbackground user selectable10 nsec/div to 655 ksec/div0.9-10 Volt 4096 steps1 x to 50 x0-10 Volt in 4096 stepsdrop and dragthree text lines for everysine, triangle, square, noise, print out 0 to 65520DC and user defined (64...
