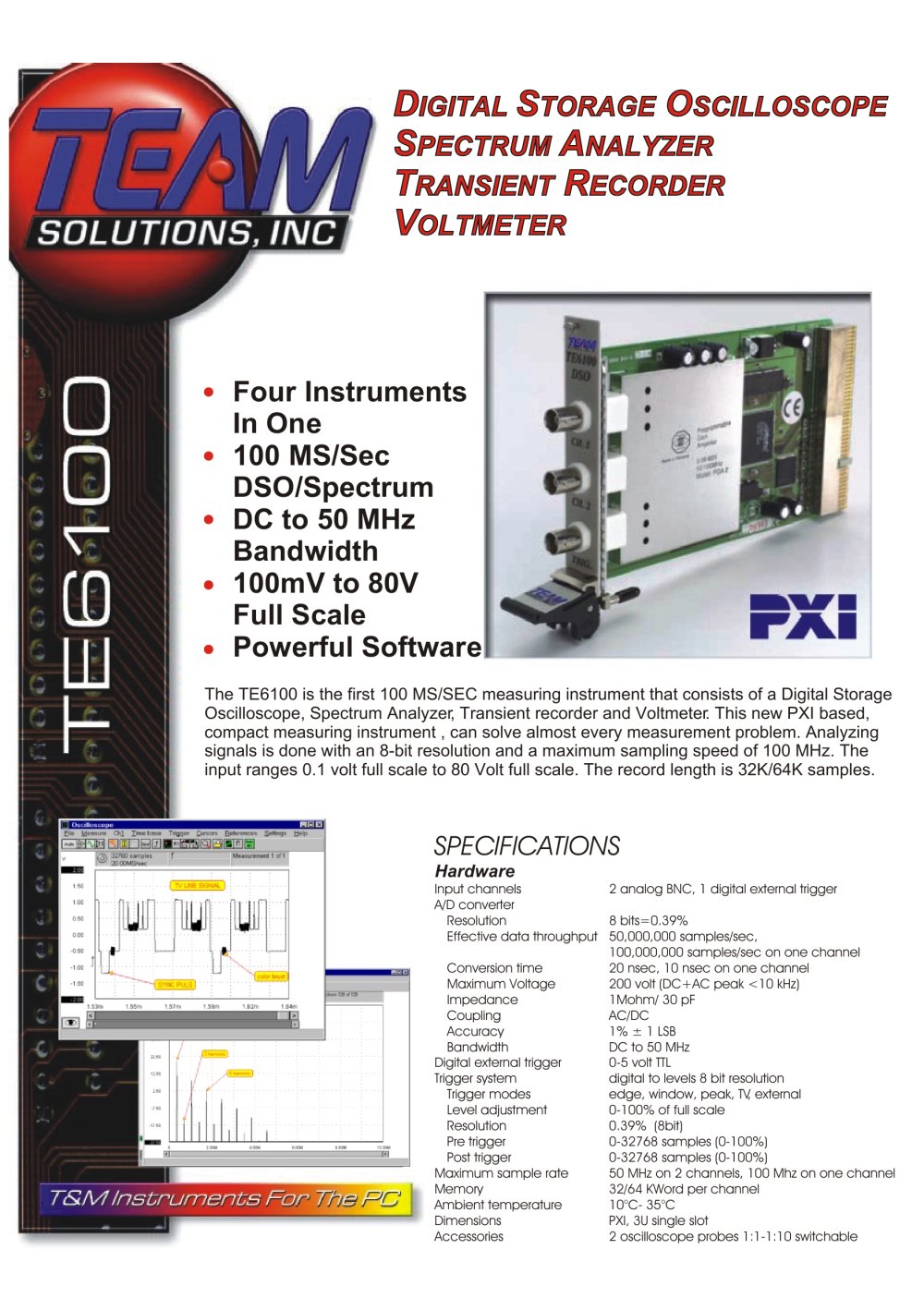

DIGITAL STORAGE OSCILLOSCOPE SPECTRUM ANALYZER TRANSIENT RECORDER VOLTMETER Four Instruments In One 100 MS/Sec DSO/Spectrum DC to 50 MHz Bandwidth 100mV to 80V Full Scale Powerful Software The TE6100 is the first 100 MS/SEC measuring instrument that consists of a Digital Storage Oscilloscope, Spectrum Analyzer, Transient recorder and Voltmeter. This new PXI based, compact measuring instrument , can solve almost every measurement problem. Analyzing signals is done with an 8-bit resolution and a maximum sampling speed of 100 MHz. The input ranges 0.1 volt full scale to 80 Volt full scale. The record length is 32K/64K samples. SPECIFICATIONS Hardware Input channels 2 analog BNC, 1 digital external trigger A/D converter Resolution 8 bits=0.39% Effective data throughput 50,000,000 samples/sec, 100,000,000 samples/sec on one channel Conversion time 20 nsec, 10 nsec on one channel Maximum Voltage 200 volt (DC+AC peak <10 kHz) Impedance 1Mohm/ 30 pF Coupling AC/DC Accuracy 1% ± 1 LSB Bandwidth DC to 50 MHz Digital external trigger 0-5 volt TTL Trigger system digital to levels 8 bit resolution Trigger modes edge, window, peak, TV, external Level adjustment 0-100% of full scale Resolution 0.39% (8bit) Pre trigger 0-32768 samples (0-100%) Post trigger 0-32768 samples (0-100%) Maximum sample rate 50 MHz on 2 channels, 100 Mhz on one channel Memory 32/64 KWord per channel Ambient temperature 10°C- 35°C Dimensions PXI, 3U single slot Accessories 2 oscilloscope probes 1:1-1:10 switchable

DIGITAL STORAGE OSCILLOSCOPE Time Base Record length adjustable between 10 samples and 32760 samples Pre trigger adjustable between 0 and 100% Sampling adjustable between 100 mHz - 100 MHz Magnification adjustable between 1 and ±50 (depends on display size) Vertical Sensitivity 100 mV.. 80 V full scale in 2-4-8 sequence and autoranging Coupling AC / DC selectable through menu, button and keyboard Hardware offset -2 * input range .. +2 * input range Software offset -input range .. +input range, mouse controlled Software gain 0.25 .. 4, mouse controlled Software invert yes Measurement unit 12 presets...

Frequency Axis Record length 32, 64, 128, 256, 512, 1024, 2048, 4096, 8192 and 16384 bins Frequency range adjustable between 50 mHz - 50 MHz Magnification adjustable between 1 and ±50 (depends on display size) Axis type linear, logarithmic, in octaves, in thirds of octaves Vertical Sensitivity 100 mV .. 80 V full scale in 2-4-8 sequence & autoranging Coupling AC / DC selectable through menu, button and keyboard Hardware offset -2 * input range .. +2 * input range Software offset -input range .. +input range, mouse controlled Software gain 0.25 .. 4, mouse controlled Software invert yes Measurement...

FOR MORE INFORMATION, DEMO SOFTWARE, SOFTWARE, SOURCE CODE AND DLL’S SEE ON OUR INTERNET PAGE: HTTP://WWW.TIEPIE.NL TiePie engineering Koperslagersstraat 37 8601 WL SNEEK The Netherlands Tel: +31 515 415 416 Fax: +31 515 418 819 E-mail: [email protected] Web page: http://www.tiepie.nl Time base Record length adjustable between 10 samples and 32760 samples Sampling speed adjustable between 2 mHz-100 Hz Magnification adjustable between 1 and ±50 (depends on display size) Axis mode adjustable between sample time and real time Vertical Sensitivity 100 mV .. 80V full scale in 2-4-8 sequence Coupling...
