Handyscope HS4 Brochure

Product catalog summary

Overview: The Handyscope HS4 is a versatile four-channel measuring instrument designed by TiePie engineering. It is suitable for various applications due to its compact design and powerful features.

Specifications:

Channels: Four, with an extension capability up to 512 channels.
Resolution: 12/14/16 bit, with a 6 µVolt resolution.
Sample Speed: Up to 50 MHz per channel.
Bandwidth: 5 MHz.
Input Sensitivity: Ranges from 200 mVolt to 80 Volt.
Memory: Large memory capacity up to 131060 samples per channel.

Features:

USB 2.0 connection, compatible with USB 1.1.
Multi-window and multi-channel signal display.
Integrated measuring devices including an oscilloscope, spectrum analyzer, transient recorder, and voltmeter.
Spectrum analyzer with a dynamic range of 95 dB.
Fast transient recorder capability up to 100 kHz.
Various trigger features including auto start/stop and auto disk function for up to 1000 files.
Auto setup for amplitude axis, time base, trigger level, and hysteresis setting.
Cursor measurements with setup read-outs.

Applications: The Handyscope HS4 is ideal for creating virtual instruments by combining up to 128 instruments, making it suitable for complex measurement tasks.

Conclusion: The Handyscope HS4 sets a new standard for multi-channel measuring instruments, offering excellent measurement quality and ease of use through its USB connectivity and versatile software.

Catalog excerpts

THE F 2.0IRT USBS0 M/-10SS, 1216 bit EURI N THE F 2.0IRT USBS0 M/-10SS, 1216 bit EURI NSREN MASNGITUMTRIN TH WODEL EN MASNGITUMTRIN TH WODEL SR > HANDYSCOPE HS4 TiePie engineering (NL)Koperslagersstraat 37 8601 WL SNEEK The NetherlandsTel: +31 515 415 416 Fax: +31 515 418 819 TiePie engineering (UK)28, Stephenson Road, St. IvesCambridgeshire, PE17 3WJ, UKTel: 01480 - 300695 Fax: 01480 - 461654 Copyright 2005 TiePie engineering. All rights reserved. size="-2">

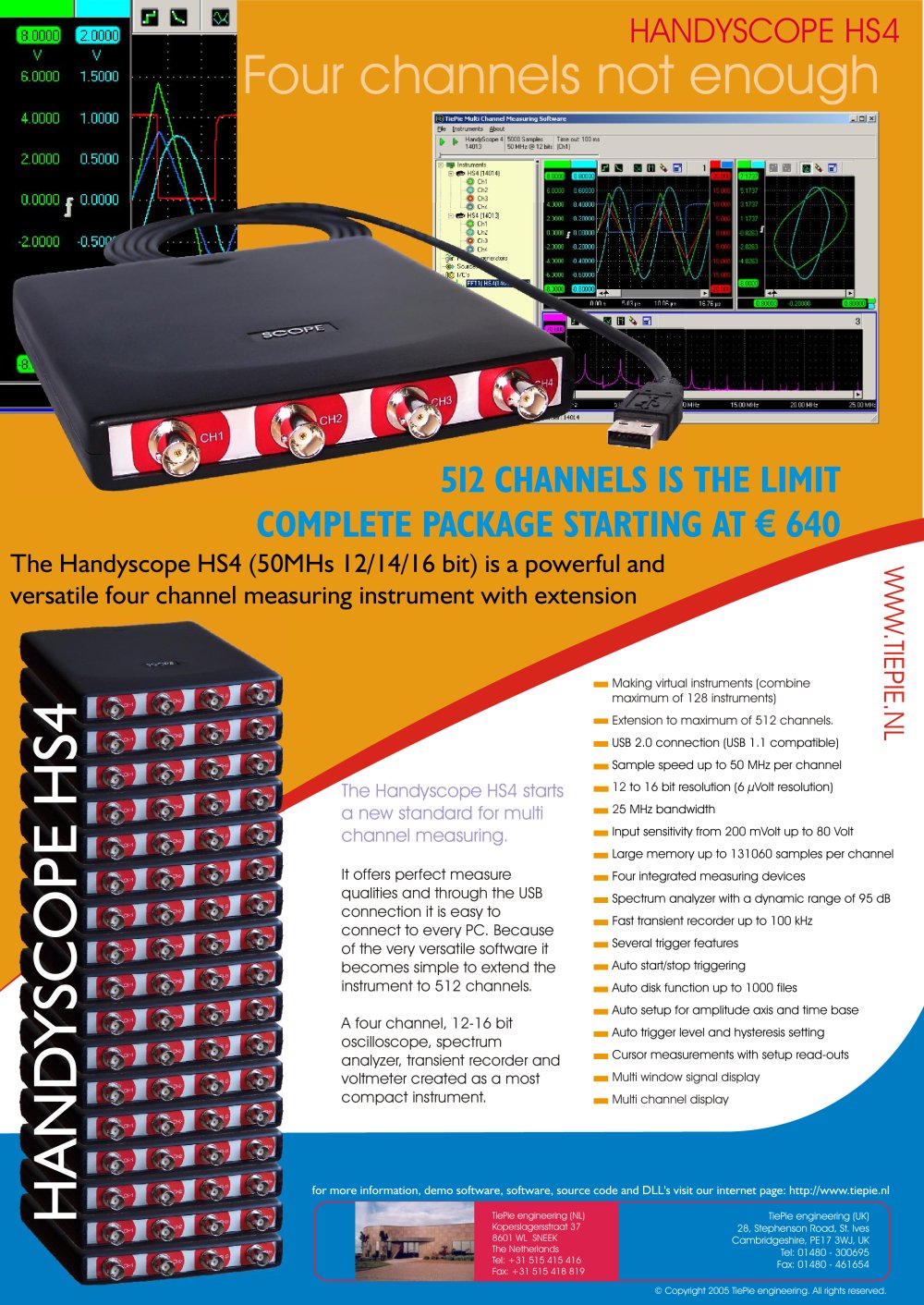

Open the catalog to page 1
