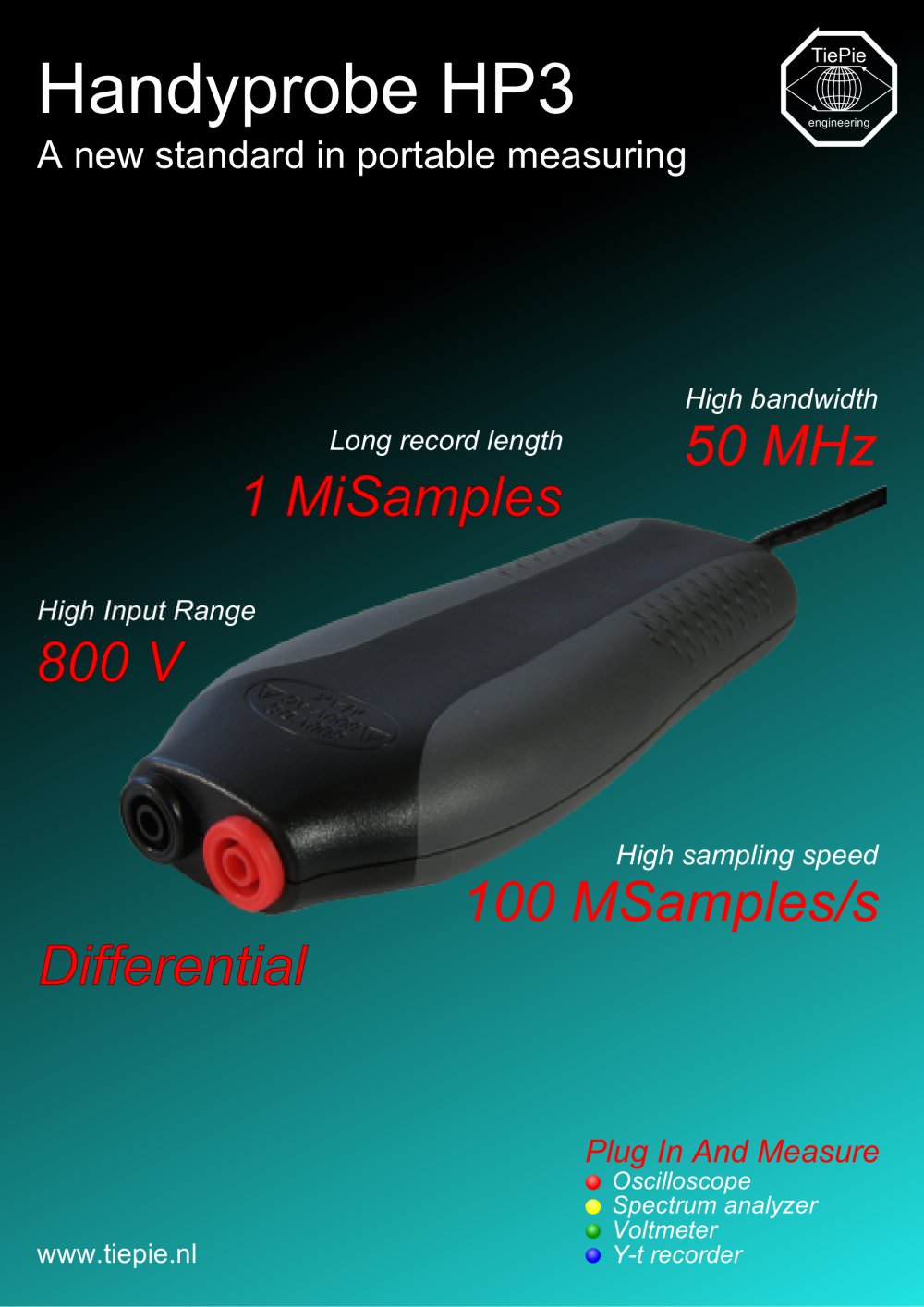

TiePie engineering Handyprobe HP3 High sampling speed 100 MSamples/s High bandwidth Long record length 50 MHz 1 MiSamples www.tiepie.nl 800 V High Input Range Plug In And Measure Oscilloscope Spectrum analyzer Voltmeter Y-t recorder A new standard in portable measuring Differential

Handyprobe HP3 A new standard in portable measuring The Handyprobe HP3 is a portable USB oscilloscope with a full differential input that will allow you to measure voltages up to 800 V peak value with a maximum sampling rate of 100 MSamples/s into a memory of 1 MiSamples. High input range The differential input with a high input range of 800 V full scale gives unequalled possibilities in measuring Connect the Handyprobe HP3 to any point in your circuit, without the need of additional attenuators. The differential input makes it impossible to create a short circuit to ground via the...

Applications Spectrum analyzer Use the spectrum analyzer to see the frequency spectrum of your signal next to the time domain signal. Various windowing functions and display functions are available to meet your requirements. Streaming measurements When 1 MiSamples record length is not enough, it is also possible to perform continuous, uninterrupted streaming measurements to measure as long as needed. Limited only by the available hard drive space, any long signal can be measured and stored for later analysis. Of course all mathematical operations are available in streaming mode as well....

Handyprobe HP3 Specifications Koperslagersstraat 37 8601 WL Sneek The Netherlands www.tiepie.nl TiePie engineering Errors and omissions excepted. Information is subject to modifications RoHS compliant TiePie engineering Tel.: +31 (0)515 415 416 Fax: +31 (0)515 418 819 E-mail: info@tiepie.nl 1 analog differential 100 MS/s (block mode) 10 MS/s (streaming mode) ±0.01% 1 MiSamples Number of input channels Maximum sampling rate Accuracy Memory Acquisition system Input 10 bits ±0.3 % 0.2 V .. 800 V full scale in a 2 - 4 - 8 sequence AC/DC 2.1 MOhm // 15 pF 566 Vrms CAT II; derated at 3 dB/decade...
