Thyracont product overview
32Pages

INTELLIGENT VACUUM MEASUREMENT SINCE 1970

Intelligent Vacuum Measurement Since 1970 Thyracont has been manufacturing vacuum metrology in Germany since 1970, giving quality and reliability the utmost importance through all departments.

Joy in Innovation Since 1970 Products Our product portfolio includes vacuum sensors, vacuum transducers, vacuum meters, vacuum switches, controllers as well as accessories and vacuum components. Depending on your scope of tasks, we can offer a wide range of measuring principles in various combinations: piezo, Pirani, capacitive, cold cathode and hot cathode. Applications Vacuum allows a great variety of manufacturing processes. The same large field of applications is served by our vacuum products. Included applications are for example process industry, coating, analytics, and R & D as well...

Product Overview Vacuum Gauges Compact vacuum meters with big data logger 2000 - 5e-5 mbar USB-C Transducers Vacuum transducers with USB-C interface 2000- 5e-5 mbar Intelligent vacuum transducers with digital interfaces 1200 - 5e-10 mbar

Product Overview Vacuum Gauges To read-out external USB transducers Piezo 2000 - 1 mbar Pirani 1200 - 5e-5 mbar VSCUSB VSRUSB Piezo Piezo/Pirani Piezo/Pirani Piezo/Pirani Piezo/Pirani Pirani Pirani (corrosion resistant) Cold cathode Pirani/cold cathode Pirani/hot cathode Controller (2/4 channels)

Product Overview Vacuum Gauges Analog vacuum transducers with compact dimensions 2000- 5e-5 mbar Robust Vacuum Switches 1200 - 1e-3 mbar PVC Ion Gauge and Vacuum System Controller For passive UHV hot cathode ion gauges

Product Overview Vacuum Gauges VSC VCC VSP SP36 VCP VSP passive VSR VD6 VD12 Piezo Capacitive Pirani Pirani Pirani (corrosion resistant) Pirani Piezo/Pirani Controller (1 channel) Controller (2 channels) VRP (Pirani, 20 - 1e-3 mbar) VRC (Piezo, 1200 - 5 mbar) Controller for 1x UHV hot cathode ion gauge Controller for 2x UHV hot cathode ion gauge www.thyracont-vacuum.com www.thyracont-vacuum.com

Product Overview Software, Components, Services Software & Accessories Vacuum components Calibration & Services

Product Overview Software, Components, Services Software Accessory sets Connection adapters Replacement sensors IP54 mating plugs Bluetooth® adapter Sealing elements Pipe components, spiral tubes Filters and protective covers Connection elements Adapters and reduction pieces Calibration Maintenance and service Switching point adjustment Output-characteristics configuration Warranty Online shop Consultation and application service www.thyracont-vacuum.com www.thyracont-vacuum.com

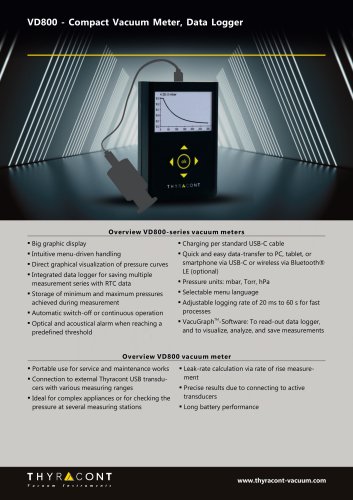

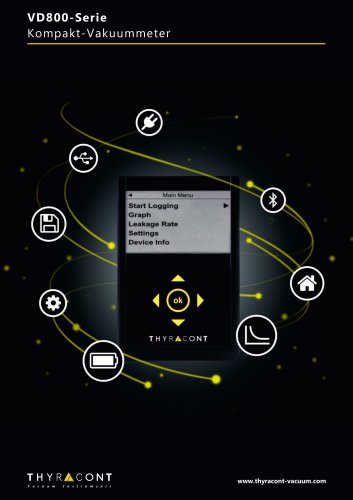

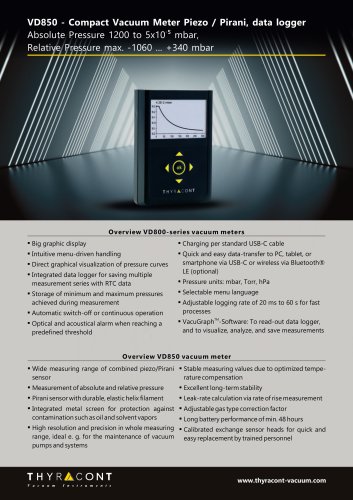

VD800-Series 2000 to 5e-5 mbar The compact vacuum meters of our VD800 series measure absolute pressure in the range of 2000 to 5e-5 mbar and relative pressure in the range of -1060 to +1200 mbar. USB-C interface, data logger, and big graphic display offer maximum flexibility for service, quality control, and maintenance works. USB-C interface: easy charging and fast data transmission Bluetooth® LE option Big graphic display Intuitive menu-driven operation Integrated battery with long performance High sampling rates Big data logger for saving measurement series Continous operation or...

Compact Vacuum Meters with big Graphical Display Clean design, intuitive menu navigation, large data logger and precise measurement results – with its new VD800 series Thyracont Vacuum Instruments is on the road to the future, consistently concentrating on the users' needs. Versatile vacuum meters The vacuum gauges can be used as portable instruments or for permanent installation in vacuum facilities. They can easily be connected to vacuum pumps or facilities, external sensors or placed directly into the vacuum chamber. Big graphic-display The integrated display and a 4+1 membrane keypad...

USB-C Transducers 2000 to 5e-5 mbar The USB-C transducers offer maximum flexibility and precision. Due to their USB-C interface the transducers are easily and fast integrable in appliances. Optical status display by LED USB interface for data transfer Compact design Extended measuring range High stability due to individual temperature compensation Robust stainless-steel housing

USB-C Vacuum Transducers with Compact Dimensions The USB-C transducers measure in a range of 2000 to 5e-5 mbar. Their compact construction is ideally suited for industrial applications with reduced space. Extended measuring range Due to their extended measuring range, the USB-transducers are suited for a variety of applications. Their excellent reproducibility and reliability ensure stable production processes. Robust and reliable Their robust metal housing and IP40 protection class electrical connectors make them the perfect choice for rough industrial environments. USB interface Measured...

Smartline™ 1200 to 5e-10 mbar The digital transducers of our Smartline series measure from 1200 to 5e-10 mbar and are characterized by their particularly efficient micro controllers. With their modern combination sensors these transducers are able to enter different pressure areas such as fine and high vacuum with high precision. Two independent relay switch points LEDs for status and switch points Precise, individual temperature compensation Push-Button for readjustment and degas Easily exchangeable replacement sens

Intelligent Vacuum Transducers with Digital Interfaces The digital transducers of the Smartline family are characterized by their particularly efficient micro controllers. Durable sensors The Pirani with increased measuring range in the Thyracont combination gauges controls the ionization sensors in such a way that they are only switched on at a very low pressure. This conserves the sensor technology and allows a long lifetime of the gauges. Alternatively, switch and transition ranges between the vacuum sensors are individually configurable. A voltage reduction of their cold cathodes...

Analogline 2000 to 5e-5 mbar The transducers of the Analogline measure in the range of 2000 to 5e-5 mbar. Individually temperature compensated and equipped with their microprocessor control, the transducers reach an outstanding accuracy and a high stability of measurements. Output 4-20 mA or 0-10 V Push-button for re-adjustment Compact design High stability due to individual temperature compensation Extended measuring range Robust stainles-steel housing
