Tables & Breadboards

Tables & Breadboards
1 / 74 PagesView full catalog

Tables & Breadboards

Product catalog summary
Overview
ScienceDesk™ is a modular ergonomic workstation system suitable for telecommunications, biotechnology, and R&D fields. It offers six standard work-surface sizes at a desk height of 30.6 inches (765mm). The system features lightweight aluminum frames with heavy-duty casters and four levels of vibration isolation: active, passive, passive heavy-duty, and rigid.
Isolation Systems
Active systems provide automatic self-leveling and high isolation. Passive systems are for equipment under 180kg (400lbs) needing high vibration isolation. Rigid systems suit environments without significant structural vibrations.
Breadboards and Supports
The system supports UltraLight™, Performance™, and PerformancePlus™ breadboards, sold separately and customizable with accessories for ergonomic workspaces.
Optical Tables and Supports
Includes optical tables from the Performance™ and StableTop™ Series with vibration isolation options. Table supports also feature vibration isolation.
Non-Magnetic Options
Non-magnetic breadboards, optical tables, and vibration isolation systems are available for specific applications.
Accessories
A wide range of accessories, including shelving, keyboard holders, monitor holders, and grounding kits, allows customization of workstations.
Specifications
Active systems support up to 700kg (1545lbs) and require air pressure up to 690kPa (100psi). Passive systems support 45 to 180kg (100 to 400lbs) and require 415kPa (60psi). Rigid systems support up to 700kg (1545lbs) without isolation.
Breadboards
Available in thicknesses of 60mm (2.4") and 110mm (4.3"), constructed with a triple-plate, double honeycomb core for thermal stability and damping. Magnetic stainless steel top and bottom plates with a flatness of ±0.10mm over any 0.3m² area.
Pricing and Dimensions
Models listed with dimensions and prices in USD, GBP, EUR, RMB. Sizes range from 2.5' x 2.5' to 4' x 3' and 750mm x 750mm to 1200mm x 900mm.
Recommendations
Contact local sales offices for quotations including shipping. Visit Thorlabs' website for mechanical drawings and solid models.
Enclosure Systems
Designed to protect instruments on MB Series Breadboards, featuring a 12" (30cm) internal height and black hardboard sides for light-sensitive applications. Shipped flat and assembled in under 30 minutes.
Non-Magnetic UltraLight™ Optical Breadboards
Ideal for optical setups requiring portability and dynamic rigidity, with a flatness of ±0.15mm over any 0.30m² area.
Performance™ Series Optical Breadboards
Economical high-performance breadboards with a double-plated, single honeycomb-core, and athermalized design.
ScienceDesk™ Workstations
Compatible with UltraLight, Performance, and PerformancePlus breadboards, offering flexibility in creating workstations with various vibration isolation options.
Specifications and Features
Optical tables are designed to minimize response to deflective forces or vibrations. They are massive, weighing between 173kg to 781kg, depending on dimensions.
Vibration Isolation
Seismic mounting is emphasized to isolate tables from floor vibrations, using a mounting system with a low resonant frequency.
Transmissibility and Resonance
Transmissibility varies with vibration frequency, and damping is crucial to reduce transmissibility at resonance.
Damping Mechanisms
Damping reduces oscillation amplitude by converting vibrational energy into other forms, such as heat.
Seismic Mounting of Optical Tables
Optical tables should be seismically mounted to prevent ambient building vibrations from affecting experiments.
Product Information
Thorlabs offers optical tables with features like athermalized design, minimal deflection under load, and excellent surface flatness.
Recommendations
For optimal performance, minimize isolation system's transmissibility, especially below the first resonant frequency.
Product Specifications and Pricing
Detailed pricing and specifications for optical tables and accessories, including under table shelves and laser port hole accessory kits.
Vibration Isolation Systems
Passive and active systems are detailed, with specifications for resonant frequency and transmissibility.
Rigid Non-Isolating Systems
For environments where vibration isolation is not necessary, Thorlabs offers rigid support systems with high load capacities and adjustable heights.
See more

Catalog excerpts

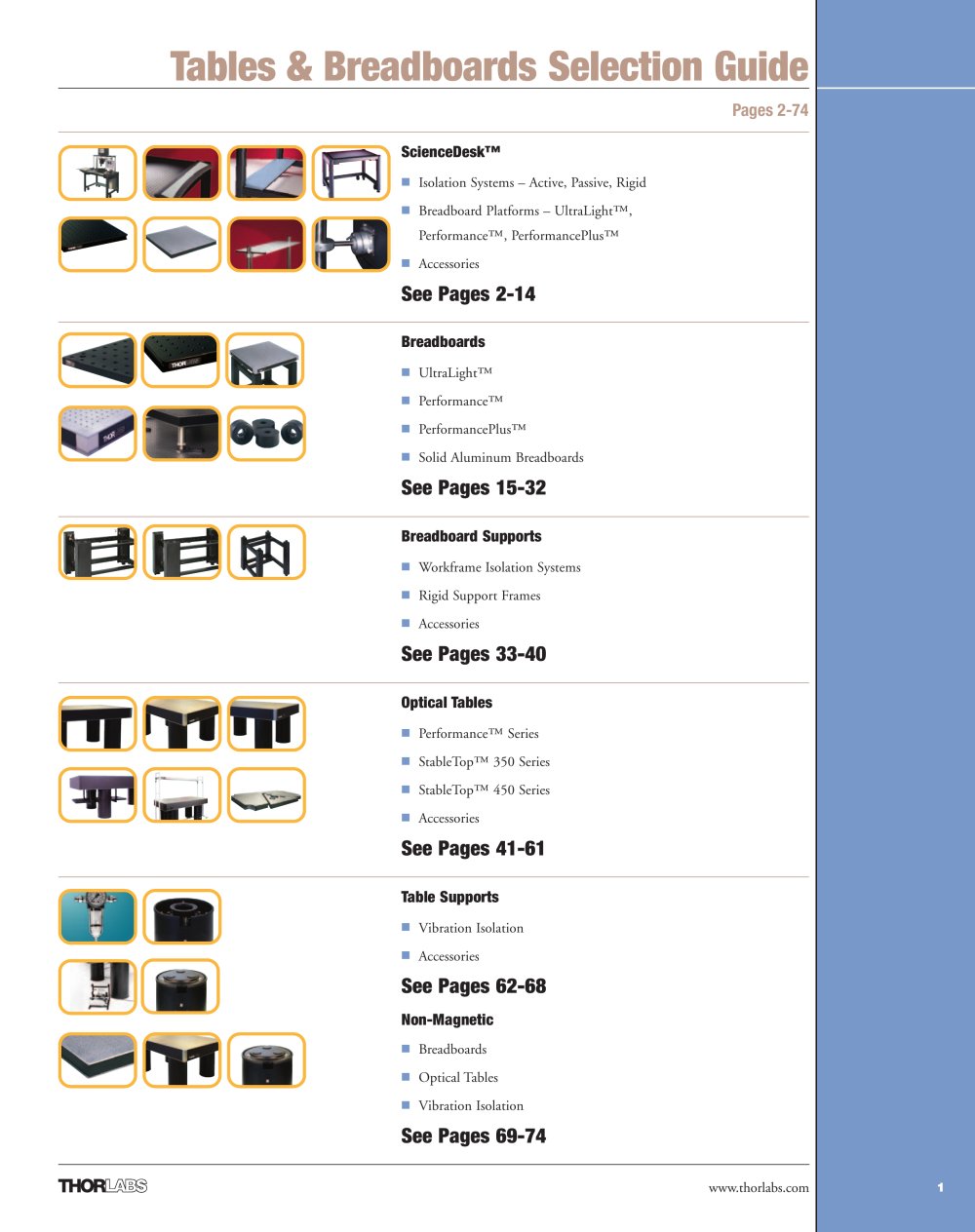

Tables & Breadboards-1

٢֠ Isolation Systems Active, Passive, Rigid > ֢֠ Breadboard Platforms UltraLight֙,Performance, PerformancePlusٙ > ■ Accessories > ■ UltraLight > ٢֠ Performance > ٢֠ PerformancePlus > ٢֠ Solid Aluminum Breadboards > ■ Workframe Isolation Systems > ■ Rigid Support Frames > ■ Accessories > ■ Performance Series > ٢֠ StableTop 350 Series > ٢֠ StableTop 450 Series > ٢֠ Accessories > ■ Vibration Isolation > ■ Accessories > ■ Breadboards > ■ Optical Tables > ■ Vibration Isolation >

 Open the catalog to page 1
Tables & Breadboards-2

BreadboardsBreadboard ScienceDesk is a modular systemdesigned to providean ergonomic alternative to conventional workstations. > Supports Optical Tables Table Supports Non-Magnetic U.S. Patent: D455,300SGB Patent: GB2.365.991B ٢֠ Flexible Workstation System With aWide Range of Accessories ScienceDesk is a modular system designed to provide an ergonomicalternative to conventional workstations and meet the requirements of modern production and clean room environments in the telecommunications, biotechnology, and R&D fields. Six standard work-surface sizes are available ranging from 2.5' x 2.5'(750...

 Open the catalog to page 2
Tables & Breadboards-3

wrist support under shelfCPU shelf side shelf monitor mount overhead shelfsingle shelf Transmissibility (dB) -50-40-30-20-10010 101010 012 Frequency (Hz) ITEM#$٣ RMBDESCRIPTION PSPK1$3,026.001,943.90 2.869,50å29,466.601/4"-20 Tapped 2.5' x 3' (750 x 900mm) ScienceDesk Kit PSPK1/M$3,026.001,943.90 2.869,50å29,466.60M6 Tapped 2.5' x 3' (750 x 900mm) ScienceDesk Kit PSPK2$3,136.502,013.50 2.972,30å30,521.901/4"-20 Tapped 2.5' x 4' (750 x 1200mm) ScienceDesk Kit PSPK2/M$3,136.502,013.50 2.972,30å30,521.90M6 Tapped 2.5' x 4' (750 x 1200mm) ScienceDesk Kit PSPK3$3,226.602,070.20 3.056,10å31,382.301/4"-20...

 Open the catalog to page 3
Tables & Breadboards-4

BreadboardsBreadboard Supports Optical Tables Table Supports Non-Magnetic Transmissibility (dB) -50-40-30-20-10010 101010 012 Frequency (Hz) ScienceDesk Transmissibility Plot > See page 44 for an introduction to vibration theory. Choose Active Self-Leveling ScienceDesk frames when your application would benefit from automatic self-leveling, while exceeding thehigh degree of isolation found in our Passive ScienceDesk frames. There are five standard frame sizes that accept select breadboards fromthree lines of our breadboards (UltraLight, Performance, and PerformancePlus), which offer various levels...

 Open the catalog to page 4
Tables & Breadboards-5

ScienceDesk BreadboardsBreadboard ٢֠ Ergonomic Workplace Systems forManufacturing and ResearchEnvironments > Supports ■ Allows for Customizing of yourWorkplace > Optical Tables ■ Modular Design > Table Supports ■ Full Range of Adaptable Accessories Available > Non-Magnetic PSH501 ■ Heavy-Duty Casters for Easy Movement > ■ ESD Safe With Grounding Kit (PSX105) > ■ Lightweight Aluminum Frame > Transmissibility (dB) -40-30-20-10010 10 10 1 10 2 Frequency (Hertz) ScienceDesk Transmissibility Plot Breadboard modules forthe ScienceDesk are available on page 15. > ٢֠ Isolation Type: Passive ScienceDesk...

 Open the catalog to page 5
Tables & Breadboards-6

BreadboardsBreadboard The Passive Isolation ScienceDesk frames are ideal for applications requiringa high degree of vibration isolation, as long as the total weight of your equipment and breadboard is less than 180kg (400lbs). Above this weight threshold, better performance is achieved by selecting the heavy-duty option on the preceding page. There are six frame sizes that accept breadboards from our UltraLight, Performance, and PerformancePlus breadboards. Many accessories are available to create an efficient and ergonomic working environment (see pages 11-15). > Supports Optical Tables Table...

 Open the catalog to page 6
Tables & Breadboards-7

wrist support under shelfCPU shelf side shelf monitor mount overhead shelfsingle shelf ■ > ITEM#$֣ RMBACCEPTS BREADBOARD SIZE PSR504$1,547.00974.60 1.438,70å14,773.90750 x 1200mm (2.5' x 4')PSR506$1,547.00974.60 1.438,70å14,773.90900 x 1200mm (3' x 4') > ITEM#$֣ RMBACCEPTS BREADBOARD SIZE PSR502$1,547.00974.60 1.438,70å14,773.90750 x 750mm (2.5' x 2.5') PSR503$1,547.00974.60 1.438,70å14,773.90750 x 900mm (2.5' x 3') PSR501$1,547.00974.60 1.438,70å14,773.90900 x 600mm (3' x 2')PSR505$1,547.00974.60 1.438,70å14,773.90900 x 900mm (3' x 3') > Please contact your local sales office for a quotation...

 Open the catalog to page 7
Tables & Breadboards-8

ITEM#$ RMBDIMENSIONSCOMPATIBLE BASES PBI11110$986.00ã621.20 917,009,416.302.5' x 2.5' x 2.4"Item #Œs Ending 502, Pages 4-7 PBI11106$1,011.50637.20 940,70å9,659.803' x 2' x 2.4"Item #s Ending 501, Pages 4-7 PBI11111$1,300.50ң819.30 1.209,5012,419.803' x 2.5' x 2.4"Item #Œs Ending 503, Pages 4-7 PBI11112$1,480.70932.80 1.377,10å14,140.704' x 2.5' x 2.4"Item #s Ending 504, Pages 4-7 PBI11114$1,343.00ң846.10 1.249,0012,825.703' x 3' x 2.4"Item #Œs Ending 505, Pages 4-7PBI11115$1,565.70986.40 1.456,10å14,952.404' x 3' x 2.4"Item #s Ending 506, Pages 4-7 > ITEM#$ң RMBDIMENSIONSCOMPATIBLE BASES PBI12110$1,018.30641.50...

 Open the catalog to page 8
Tables & Breadboards-9

ITEM#$ RMBDESCRIPTION PBH51506/NH$628.30ã395.80 584,306,000.30Breadboard, No Holes Ŗ 900 x 600 x 60mm PBH51510/NH$635.10400.10 590,60å6,065.20Breadboard, No Holes 750 x 750 x 60mm PBH51511/NH$822.80֣518.40 765,207,857.70Breadboard, No Holes Ŗ 900 x 750 x 60mm PBH51512/NH$911.20574.10 847,40å8,702.00Breadboard, No Holes 1200 x 750 x 60mm PBH51514/NH$832.30֣524.30 774,007,948.50Breadboard, No Holes Ŗ 900 x 900 x 60mmPBH51515/NH$983.30619.50 914,50å9,390.50Breadboard, No Holes 1200 x 900 x 60mm > ITEM#$֣ RMBDESCRIPTION PBH11106/NH$620.20390.70 576,80å5,922.90Breadboard, No Holes 3' x 2' x 2.4" PBH11110/NH$635.10֣400.10...

 Open the catalog to page 9
Tables & Breadboards-10

ITEM#$ RMBDIMENSIONSCOMPATIBLE BASES PBH11106$775.20ã488.40 720,907,403.203' x 2' x 2.4"Item #Œs Ending 501, Pages 4-7 PBH11110$793.90500.20 738,30å7,581.702.5' x 2.5' x 2.4"Item #s Ending 502, Pages 4-7 PBH11111$1,028.50ң648.00 956,509,822.203' x 2.5' x 2.4"Item #Œs Ending 503, Pages 4-7 PBH11112$1,139.00717.60 1.059,30å10,877.504' x 2.5' x 2.4"Item #s Ending 504, Pages 4-7 PBH11114$1,040.40ң655.50 967,609,935.803' x 3' x 2.4"Item #Œs Ending 505, Pages 4-7PBH11115$1,229.10774.30 1.143,10å11,737.904' x 3' x 2.4"Item #s Ending 506, Pages 4-7 ITEM#$ң RMBDIMENSIONSCOMPATIBLE BASES PBH12111$1,076.10677.90...

 Open the catalog to page 10
