ThorStack2™

Product catalog summary

Technical Specifications
Thor Global Enterprises Ltd. provides a range of telescopic stackers with varying dimensions and capabilities. The models include T-115, T-140, T-150, T-170, T-190, and T-135, each with specific measurements for travel width, belt width, and other dimensions. These stackers are designed for flexibility and efficiency in material handling applications.

Standard Features
The ThorStack2™ series includes high-end standard features such as a portable anchor pad, larger receiving chute, custom color selection, hot-dip galvanizing, and dual drive systems. These features ensure the stackers are versatile and durable, suitable for various industrial applications.

Optional Features
Optional features available for the ThorStack2™ series include wireless remote control, custom programming, and additional automation options. These enhancements allow for tailored solutions to meet specific operational needs.

Key Benefits
Thor Global's telescopic stackers offer several key benefits, including fully automated functions for increased flexibility and efficiency, single-source components for easy maintenance, and portability for versatile integration. The patented Load Equalizing System (LES) provides enhanced support and longevity under heavy loads.

Automation
The automation technology in Thor Global's stackers includes pre-programmed stacking options and seamless operation through the INOVUS touch-screen system. Standard automated functions cover pile detection, material flow, radial drive, and telescopic position, with optional belt tracking available.

Versatility
The ThorStack2™ series is designed for integration into various material handling applications, including mining, ship loading, and recycling. Its adaptability makes it suitable for current and future needs.

Strength & Simplicity
Thor Global emphasizes a balance of strength and simplicity in their designs, ensuring machines are robust yet easy to maintain. Features like the in-line swing axle, emergency braking system, and single-stage hydraulic cylinders contribute to the stackers' reliability and efficiency.

Conclusion
Thor Global Enterprises Ltd. offers a comprehensive range of telescopic stackers with advanced features and automation, designed to meet diverse industrial needs with strength, simplicity, and innovation.

Catalog excerpts

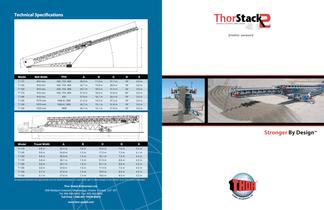

Stronger By Design™ All sizes and dimensions are approximate and Thor Global Enterprises Ltd. reserves the right to make changes to their product at any time without notification. Technical Specifications Thor Global Enterprises Ltd. 839 Westport Crescent, Mississauga, Ontario Canada L5T 1E7 Tel: 905-564-0440 Fax: 905-564-9602 Toll Free: 1-888-801-THOR (8467) www.thor-global.com Model Travel Width A B C D E T-115 3.6 m 22.4 m 1.6 m 15.4 m 7.0 m 4.2 m T-140 3.6 m 24.8 m 1.5 m 17.3 m 7.5 m 4.1 m T-150 3.6 m 26.0 m 1.5 m 19.1 m 7.0 m 4.2 m T-170 3.6 m 30.1 m 1.5 m 21.5 m 8.6 m 4.2 m T-190 3.6 m 33.7 m 1.5 m 24.1 m 9.6 m 4.2 m T-135 3.6 m 24.8 m 1.5 m 17.4 m 7.5 m 4.2 m T-150 3.7 m 27.6 m 1.5 m 19.5 m 8.0 m 4.2 m T-150 3.7 m 27.6 m 1.5 m 19.5 m 8.0 m 4.2 m Model Belt Width TPH A B C D E T-115 910 mm 450, 725, 900 35.0 m 11.9 m 31.7 m 18° 2.6 m T-140 910 mm 450, 725, 900 42.7 m 13.9 m 39.0 m 18° 3.0 m T-150 910 mm 450, 725, 900 45.7 m 16.5 m 41.4 m 18° 3.0 m T-170 910 mm 450, 725, 900 51.8 m 16.6 m 47.6 m 20° 3.0 m T-190 910 mm 450 57.9 m 18.7 m 53.4 m 18° 3.0 m T-135 1070 mm 1000 & 1300 41.2 m 13.5 m 37.5 m 18° 3.0 m T-150 1070 mm 1000 & 1300 45.7 m 15.1 m 41.8 m 18° 3.0 m T-150 1220 mm 1800 45.7 m 15.1 m 41.8 m 18° 3.0 m [metric version]

Open the catalog to page 1

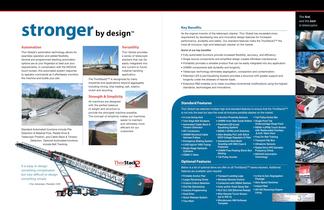

• Portable Anchor Pad • Larger Receiving Chute • Custom Colour Selection • Hot-Dip Galvanizing • Custom Programming • Dual Drive • Quick-Release System • Tow Hitch • Transport Landing Legs • Wireless Remote Control • Contactors with NEMA Starters • Inner and/or Outer Spray Bar • PLC SLC 505 (Ethernet Ready) • Wire Remote Touch Screen (up to 305 m) • Wonderware HMI Software Template • In-line & Zero Segregation Package • Zero Speed Switches • Impact Bed • AR 400 Receiving Hopper Lining Standard Features Thor Global has selected multiple high-end standard features to ensure that the ThorStack2™...

Open the catalog to page 2

ThorStack2™

ThorStack2™
