Introduction
Thomas Regout International B.V. is committed to continuous innovation by addressing customer needs through its R&D department. The latest development is the Horizontal Slide.

Product Description
The Horizontal Slide is distinct from telescopic slides, utilizing special sliding strips instead of ball bearings for smooth movement. It adheres to ISO TS 16949 norms and comprises an inner and outer profile, sliding strips, a stopping block, and compression springs.

Advantages

Constant sliding forces ranging from 9N to 20N, depending on spring force.
No lubricant required.
Competitive price/quality ratio.
Easy integration of additional features due to ample space between profiles.
Various fixation options: pressnuts, studs, lances, holes, etc.
Soft end stop.
Weight: 280 grams.

Technical Specifications

Stopsystem BASIC: No intermediate stops.
Outer Profile Material: Blue Passivated Steel.
Inner Profile Material: Pre-Galvanized Steel.
Compression Springs Material: Spring Steel.
Sliding Strips Material: Modified POM.
Stopping Block Material: TPU.
Dimensions: 86 mm width x 12.1 mm thickness.
Extension: 60 - 130 mm.
Outer Profile Length: 124 - 194 mm (L = T + 64 mm).
Inner Profile Length: 60 mm.
Temperature Range: -40°C to +85°C.
Custom lengths or travel available on request.

Contact Information
Thomas Regout International B.V., Industrieweg 40, 6219 NR Maastricht, The Netherlands.
Phone: 0031 (0) 43 351 6666
Fax: 0031 (0) 43 351 6699
Website: www.thomasregout.com
Email: [email protected]

Additional Information
Visit the website for more products including Telescopic Slides, Systems, and Balancebox.

Catalog excerpts

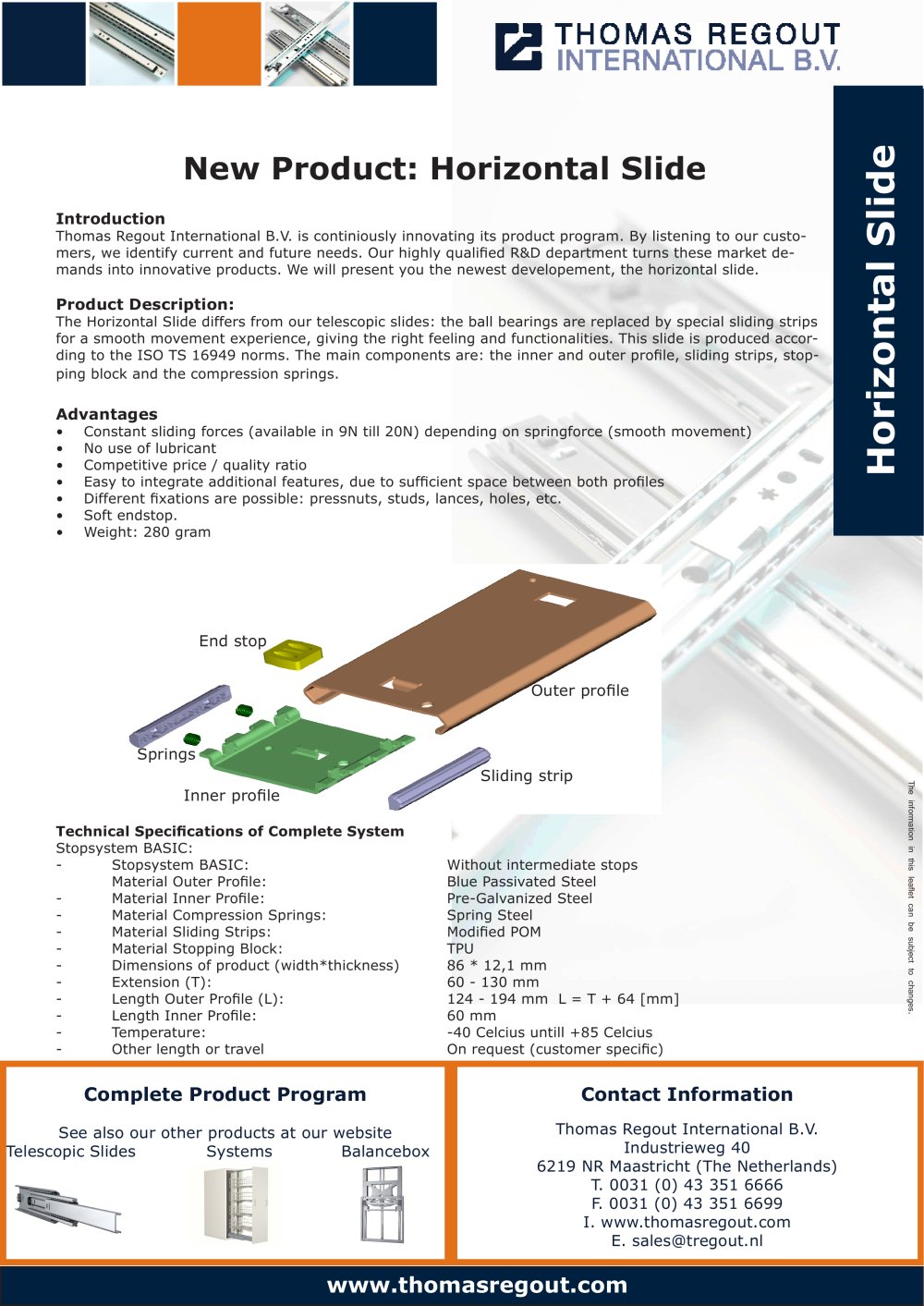

Horizontal Slide New Product: Horizontal Slide Introduction Thomas Regout International B.V. is continiously innovating its product program. By listening to our customers, we identify current and future needs. Our highly qualified R&D department turns these market demands into innovative products. We will present you the newest developement, the horizontal slide. Product Description: The Horizontal Slide differs from our telescopic slides: the ball bearings are replaced by special sliding strips for a smooth movement experience, giving the right feeling and functionalities. This slide is produced according to the ISO TS 16949 norms. The main components are: the inner and outer profile, sliding strips, stopping block and the compression springs. Advantages • Constant sliding forces (available in 9N till 20N) depending on springforce (smooth movement) • No use of lubricant • Competitive price / quality ratio • Easy to integrate additional features, due to sufficient space between both profiles • Different fixations are possible: pressnuts, studs, lances, holes, etc. • Soft endstop. • Weight: 280 gram Contact Information Thomas Regout International B.V. Industrieweg 40 6219 NR Maastricht (The Netherlands) T. 0031 (0) 43 351 6666 F. 0031 (0) 43 351 6699 I. www.thomasregout.com E. [email protected] Complete Product Program See also our other products at our website Telescopic Slides Systems Balancebox Technical Specifications of Complete System Stopsystem BASIC: - Stopsystem BASIC: Without intermediate stops Material Outer Profile: Blue Passivated Steel - Material Inner Profile: Pre-Galvanized Steel - Material Compression Springs: Spring Steel - Material Sliding Strips: Modified POM - Material Stopping Block: TPU - Dimensions of product (width*thickness) 86 * 12,1 mm - Extension (T): 60 - 130 mm - Length Outer Profile (L): 124 - 194 mm L = T + 64 [mm] - Length Inner Profile: 60 mm - Temperature: -40 Celcius untill +85 Celcius - Other length or travel On request (customer specific) The information in this leaflet can be subject to changes. www.thomasregout.com Outer profile End stop Inner profile Sliding strip Springs
