Slide Pack Stainless Steel Series

Product catalog summary

Precautions on Use

Handling: Avoid disassembling components to prevent dust entry and maintain accuracy. Do not tilt or drop the Slide Pack to prevent damage or injury.
Lubrication: Use high-quality lithium-soap group grease No. 2 and avoid mixing different lubricants.
General Use: Prevent foreign materials from entering the system. Clean with pure white kerosene if necessary and replenish lubricant. Avoid extreme temperatures and harsh conditions. Implement safety mechanisms for inverted mounts.
Storage: Store in designated packaging, avoiding extreme temperatures and humidity.

Specifications

Model FBW-XR Accuracies: Vertical direction: 0.03 mm or less, Lateral direction: 0.1 mm or less.
Materials: Rails, mounting plates, and stoppers are made of austenitic stainless steel for high corrosion resistance.
Noise Reduction: New slider designs reduce noise by 5dBA compared to conventional models.

Model Details

FBW2560XR: Slider mass 70g, static permissible load Pa: 590, Pb: 150, Pc: 70.
FBW3590XR: Slider mass 250g, static permissible load Pa: 880, Pb: 200, Pc: 100.
FBW50110XR: Slider mass 420g, static permissible load Pa: 1960, Pb: 500, Pc: 390.

Design and Construction

High Rigidity: Thicker rails in FBW3590XR and FBW50110XR for increased rigidity.
Groove Dimensions: Specific dimensions provided for secure mounting, with recommendations for bolt types.

Additional Notes

Products may differ slightly in appearance from photos and specifications are subject to change without notice.
For export, compliance with relevant laws is required, and THK should be contacted in advance.

Overview: The document provides technical specifications and guidelines for the FBW-XR series of slide packs, focusing on models FBW2560XR, FBW3590XR, and FBW50110XR. These models are designed for high corrosion resistance, rigidity, and low noise.

Specifications:

Rail Width: Increased by 0.4 mm compared to conventional models.
Slider Mass: FBW2560XR - 70g, FBW3590XR - 250g, FBW50110XR - 420g.
Materials: Austenitic stainless steel for high corrosion resistance.
Noise Reduction: New slider design reduces noise by 5dBA.
Static Permissible Load: Varies by model, with FBW50110XR supporting the highest loads.

Procedures and Recommendations:

Handling: Avoid disassembly, tilting, dropping, or impacting the slide pack to prevent damage.
Lubrication: Use high-quality lithium soap-based grease. Avoid mixing different lubricants.
Foreign Material Prevention: Keep the system free from dust and debris to maintain functionality.
Storage: Store in THK-designated packaging, avoiding extreme temperatures and humidity.

Design and Installation:

Mounting Accuracy: Vertical direction accuracy of 0.03 mm or less, lateral direction 0.1 mm or less.
Mounting Screws: Limited space requires button-head or binding-head bolts.
Groove Dimensions: Increased groove widths by 0.4 mm for FBW3590XR and FBW50110XR.

Additional Notes:

Models with dust covers are available upon request.
Specifications and appearance are subject to change without notice.
Compliance with foreign exchange and trade laws is required for export.

Catalog excerpts

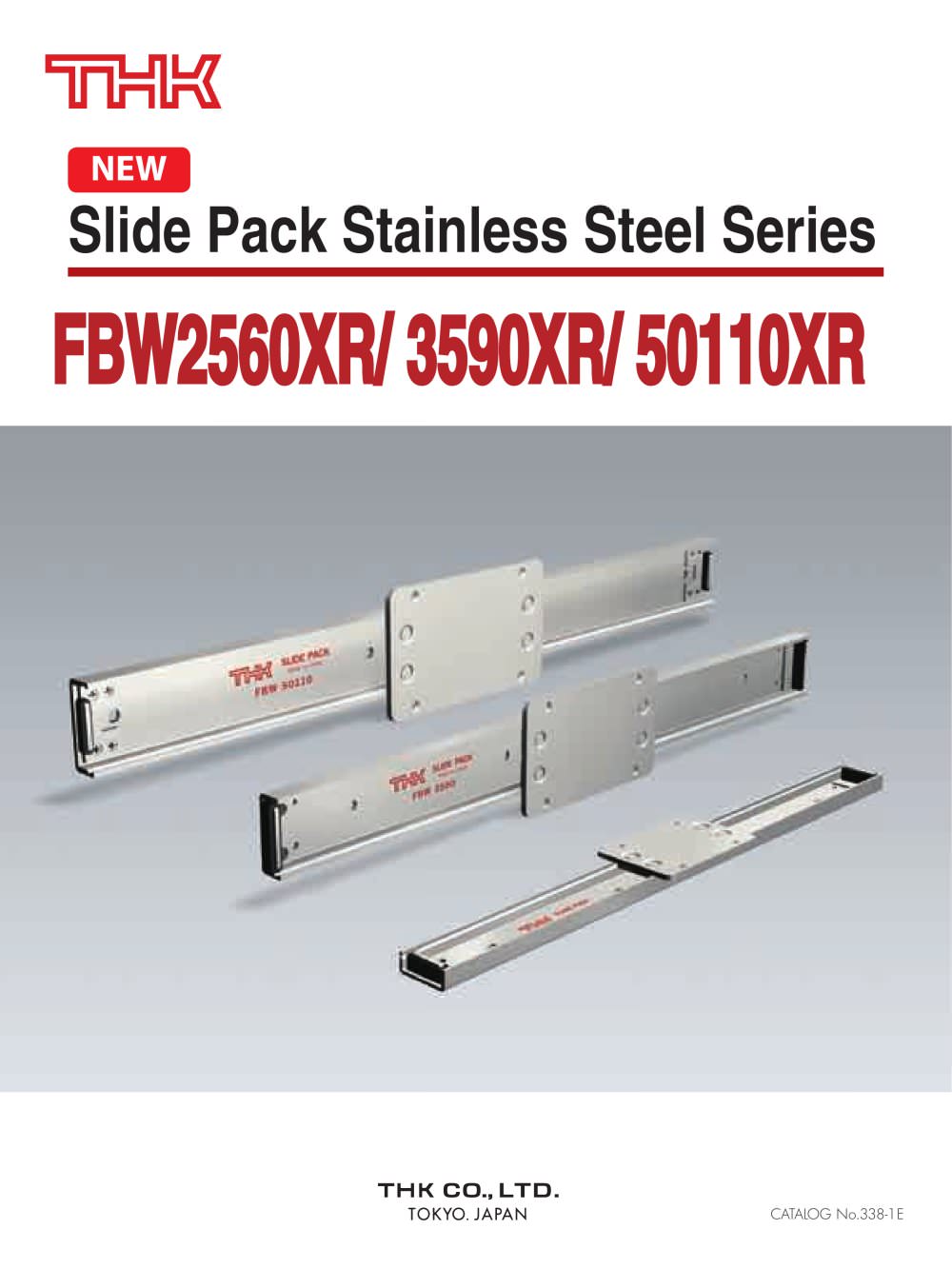

Slide Pack Stainless Steel Sries FBW2560XR/ 3590XR/ 50110XR THK CO., LTD TOKYO. JAPAN CATALOG No.338-1E

Open the catalog to page 1

Slide Pack Stainless Steel Sries BW Mounting plate(SUS304) Slider Stopper(SUS304+NBR) Slide Rail(SUS304) Note: The material of the stopper of FBW2560XR is SUS430+NBR. Structure of FBW High Corrosion Resistance Parts such as the rail, mounting plate and stopper are made of austenitic stainless steel to achieve high corrosion resistance. 镕 High Rigidity FBW3590XR and FBW50110XR have thicker rails to achieve higher rigidities than conventional models. Low Noise FBW2560XR, FBW3590XR and FBW50110XR have newly designed sliders to decrease noise level by 5dBA from the conventional models. (in the case...

Open the catalog to page 2

O Clearance Model FBW-XR is manufactured to the following accuracies. Vertical direction: 0.03 mm or less Lateral direction: 0.1 mm or less These specification values apply when the slide rail is attached to a rigid base. c 0 '■m 1 .a '■m I Horizontal direction O Mounting Screws of th Since the space for securing the mounting screws of the slide rail is limited, shown in the figure below, we recommend using button-head or binding-head bolts (JIS B 1111 annex). Sheet thickness Unit: mm Model No. Sheet thickness t FBW 2560XR 1.5 3.2 FBW 3590XR 2.5 3.4 FBW 50110XR 2.5 3.4 Note: FBW3590XR and FBW50110XR...

Open the catalog to page 3

:BW50110XR TYPE -26 Stroke length 23 80 4-M5 Section B 7.5 Magnified view of section B Note- 50.4 85 70 $- 6 3.0 -00 7 -7 G mx 100 G L0 [FBW50110XR] Unit: mm ^Static Permissible Load ^ Slide rail length Lo Main dimensions Stroke length Note2 Slide rail mass [g] n1 G Without seal With seal 300 2 50 170 164 390 350 3 25 220 214 460 400 3 50 270 264 520 450 4 25 320 314 590 500 4 50 370 364 650 600 5 50 470 464 780 700 6 50 570 564 910 800 7 50 670 664 1040 900 8 50 770 764 1190 1000 9 50 870 864 1300 1200 11 50 1070 1064 1520 1500 14 50 1370 1364 1950 1800 17 50 1670 1664 2380 Pa Pb 11 1 Pc Unit:...

Open the catalog to page 5

TfinlK Slide Pack Stainless Steel Sries A Prcautions on Use Handling 驕 Do not disassemble components. This may cause dust to enter the system or dgrade mounting accuracy of parts. Do not tilt the slider or slide rail. This may cause them to fall by their own weight. 镕 Do not drop or hit the Slide Pack. This may damage it or cause injuries. Impacting to the Slide Pack could also cause damage to its function even if the product looks intact. Lubrication Օ We recommend using high-quality lithium-soap group grease No. 2. Do not mix lubricants of different physical properties. Precautions on Use...

Open the catalog to page 6
