Product Ordering Guide Overview
This document serves as a detailed guide for ordering various models of LM Guides, focusing on specifications, features, and applications. It covers different model types, their load capacities, and specific design features.

1. Global Standard Model

Types: SHS, HSR
Features: Standard dimensions with a 4-way equal-load design suitable for all orientations.
Applications: Used in machining centers, NC lathes, drilling machines, electric discharge machines, and conveyance systems.

2. Radial Model

Types: SSR, SR
Features: High moment capacity due to a wide, low gravity center structure, offering large geometrical moments of inertia and high lateral rigidity.
Applications: Similar to global standard models, with a focus on high rigidity applications.

3. Wide, Low Gravity Center Model

Types: SHW, HRW
Features: Compact, lightweight, low-inertia design.
Applications: Ideal for printed circuit board drilling machines, semiconductor manufacturing machines, insertion machines, and optical stages.

4. Lightweight, Compact Model

Types: SRS
Features: Low mounting height and compact design, optimal for horizontal mounting due to large radial load capacity.
Applications: Suitable for semiconductor manufacturing machines, optical stages, medical equipment, and IC bonders.

Ordering Specifications

Model Number & Size: Identifies the specific model and size.
Block Style: Various styles available based on application needs.
Seal Designation: Options include end seals, side seals, and metal scrapers for different environmental conditions.
Radial Clearance: Options for normal, light, and custom preload.
Material and Plating: Choices between alloy steel and stainless steel, with optional plating for corrosion resistance.
Rail and Block Modifications: Custom modifications available upon request, requiring detailed drawings.

Notes and Limitations

Certain features and materials are not available for all sizes or styles.
Bellows are not included and must be ordered separately if required.
Specific configurations may require consultation with THK for precise part numbers and additional details.

This guide is crucial for selecting the appropriate LM Guide model based on specific application requirements, ensuring optimal performance and compatibility.

Catalog excerpts

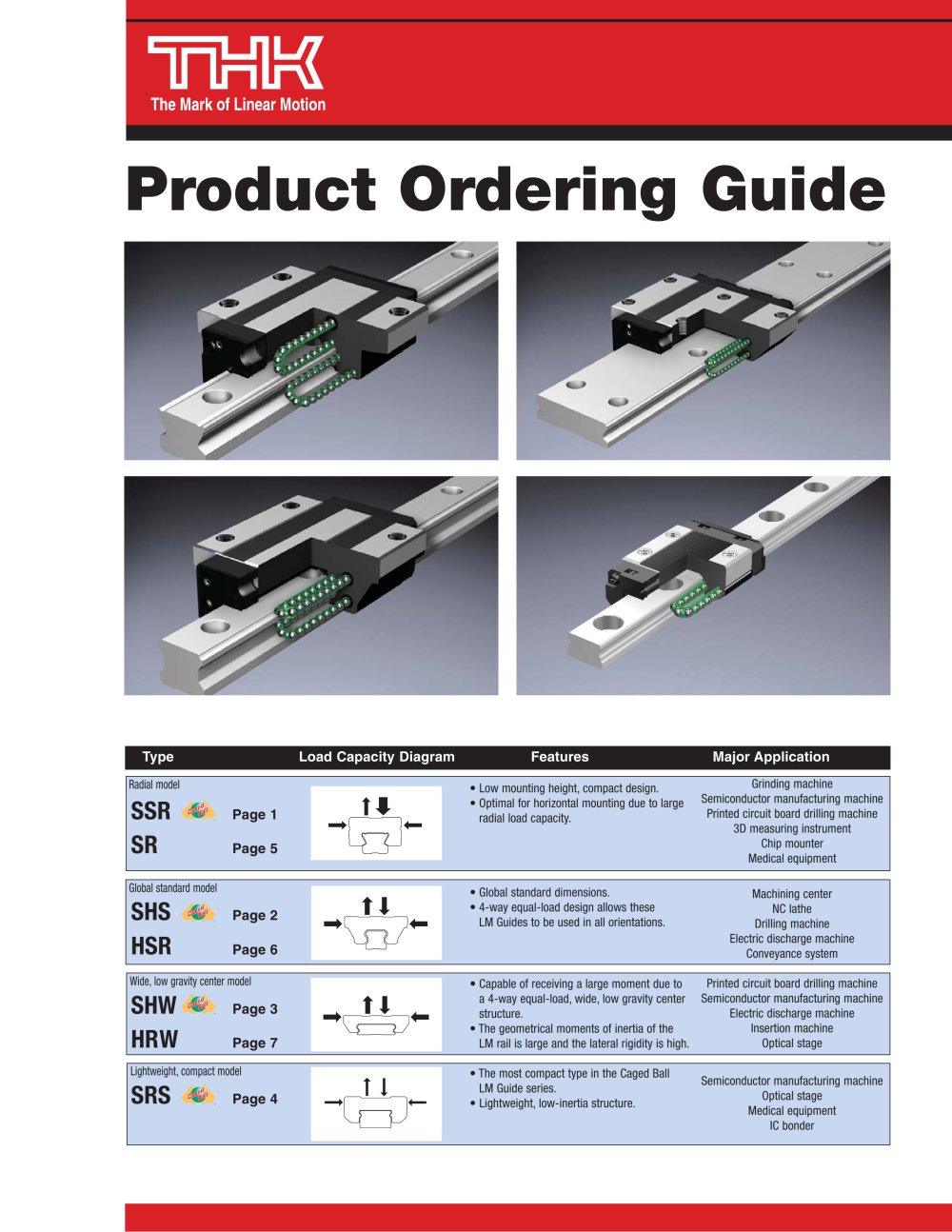

■■■■■■■■■ ■■■■■■■■< Product Ordering Guide Type Load Capacity Diagram Features Major Application Radial model SSR Page 1 SR Page 5 Low mounting height, compact design. Օ Optimal for horizontal mounting due to large radial load capacity. Grinding machine Semiconductor manufacturing machine Printed circuit board drilling machine 3D measuring instrument Chip mounter Medical equipment Global standard model SHS . Page 2 HSR Page 6 tl Global standard dimensions. Օ 4-way equal-load design allows these LM Guides to be used in all orientations. Machining center NC lathe Drilling machine Electric discharge machine Conveyance system Wide, low gravity center model SHW Page 3 HRW Page 7 Capable of receiving a large moment due to a 4-way equal-load, wide, low gravity center structure. Օ The geometrical moments of inertia of the LM rail is large and the lateral rigidity is high. Printed circuit board drilling machine Semiconductor manufacturing machine Electric discharge machine Insertion machine Optical stage Lightweight, compact model SRS Page 4 The most compact type in the Caged Ball LM Guide series. Օ Lightweight, low-inertia structure. Semiconductor manufacturing machine Optical stage Medical equipment IC bonder

Open the catalog to page 1

Full Assembly Part #: Block Only Part #: Rail Only Part SSR15 XV 1 QZ SS HH C1 M F E J (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) SSR15 XV 1 SS C1 E J (GK) BLOCK (1) (2) (3) (5) (7) (10) (11) (21) SR15 - 5240L F S J T (GK) RAIL (1) (12) (15) (17) (18) (19) (21) + 5240L YPFMSJI-U (12) (13) (14) (15) (16) (17) (18) (19) (20) *Note: Squence of letters in P/N may vary. Please refer to an officiai IHK quotation for final part number. (1) Model # & Size |(2) Block Style | XW-Style Narrow Tapped Holes XV-Style Short XW-Style XTB-Style rlanged Ihru Holes 1 (3) Number of Blocks on one rail (4) QZ Lubricator...

Open the catalog to page 2

Full Assembly Part #: Block Only Part #: Rail Only Part #: SHS25 C 1 QZ SS HH C1 M F J (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) SHS25 C 1 SS C1 J E (GK) BLOCK (1) (2) (3) (5) (7) (10) (11) (21) SHS25 - 5240L F S J T (GK) RAIL (1) (12) (15) (16) (17) (18) (21) E + 5240L P K F S J T Z -II (11) (12) (13) (14) (15) (16) (17) (18) (19) (20) *Note: Sequence of letters in P/N may vary. Please refer to an official THK quotation for final part number. (1) Model # & Size (2) Block Style | C-Style Flanged Tapped Holes V-Style Narrow Tapped Holes R-Style -1 Narrow Tapped Holes Matches HSR..R Height LC-Style...

Open the catalog to page 3

Full Assembly Part #: SHW17 Block Only Part #: Rail Only Part #: SHW17 CAN 1 QZ SS HH C1 F M (1) (2) (3) (4) (5) (6) (7) (8) (9) SHW21 CAN 1 SS C1 J E (GK) BLOCK (1) (2) (3) (5) (7) (10) (11) (20) SHW21 - 5240L F S J T (GK) RAIL (1) (12) (14) (16) (17) (18) (20) JE + 5240L P F M S J T -il (10) (11) (12) (13) (14) (15) (16) (17) (18) (19) *Note: Squence of letters in P/N may vary. Please refer to an officiai THK quotation for final part number. Model # & Size |(2) Block Style | CAN-Style Flanged Tapped Holes M CRN-Style Narrow Tapped Holes HRN-Style Narrow Tapped Holes Long CRN-Style (Size12 only)...

Open the catalog to page 4

Full Assembly Part #* : 2 (1) SRS20 (2) M (3) QZ (4) SS (5) HH (6) C1 (7) F (8) E (9) + 5240L (10) (11) F (12) M (13) S (14) (15) -il (16) *Note: Sequence of letters in P/N may vary. Please refer to an official THK quotation for final part number. (2) Model # & Size SRS..WM Rail |(3) Block Style | WM-Style Wide Tapped Holes ^ Sizes (7~15) M-Style Narrow Tapped Holes ( ) Number of Blocks on one rail No symbol for one block (4) QZ Lubricator QZ None (no symbol) QZ Lubricator (5) Seal Designation UU SS End Seals (THK STD) End Seals + Side Seals (6) Laminated Contact Scraper HH Normal (no symbol)...

Open the catalog to page 5

Full Assembly Part #: Block Only Part #: Rail Only Part #: SR15 V 1 SS C1 F M J (1) (2) (3) (4) (5) (6) (7) (8) SR15 V 1 SS C1 J E (GK) (1) (2) (3) (4) (5) (8) (9) (19) SR15 - 5240L Y F S J T (1) (10) (11) (13) (15) (16) (17) E (9) + 5240L (10) Y (11) P (12) F (13) M (14) S (15) J (16) T (17) (18) (GK) (19) *Note: Sequence of letters in P/N RAIL may vary. Please refer to an officiai THK quotation for final part number. (1) Model # & Size 1(2) Block Style W-Style Narrow Tapped Holes V-Style Short W-Style - 1 TB-Style Flanged Thru Holes SB-Style Short TB-Style (3) Number of Blocks on one rail UU...

Open the catalog to page 6

Full Assembly Part #* : Block Only Part #: Rail Only Part #: HSR25 A 2 QZ SS HH C1 F M E J + 5240L P K F M S J T -II (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13) (14) (15) (16) (17) (18) (19) (20) HSR25 A 2 SS C1 E J (GK) BLOCK (1) (2) (3) (5) (7) (10) (11) (21) *Note: Sequence of letters in P/N may vary. HSR25 - 5240L F S J T (GK) RAIL Please refer to an official THK quotation for (1) (12) (15) (17) (18) (19) (21) final part number. (1) Model # & Size (2) Block Style (3) (4) Number of Blocks on one rail *>"St â < "° e g n al Ll_ QZ Lubricator QZ None (no symbol) QZ Lubricator End...

Open the catalog to page 7

Full Assembly Part M21 Block Only Part #: Rail Only Part #: HRW21 CA 1 UU C1 F M J (1) (2) (3) (4) (5) (6) (7) (8) HRW21 CA 1 UU C1 J E (GK) (1) (2) (3) (4) (5) (8) (9) (18) HRW21 - 1000L F S T J (GK) (1) (10) (12) (14) (15) (16) (18) E + 1000L P F M S J T -II (9) (10) (11) (12) (13) (14) (15) (16) (17) BLOCK *Note: Sequence of letters in P/N may vary. Please refer to an officiai THK quotation for final part number. RAIL (1) Model # & Size |(2)-2 Block Style (3) Number of Blocks on one rail (4)-5 Seal Designation UU SS DD ZZ KK End Seals (THK STD) End Seals + Side Seals Double End Seals + Side...

Open the catalog to page 8
