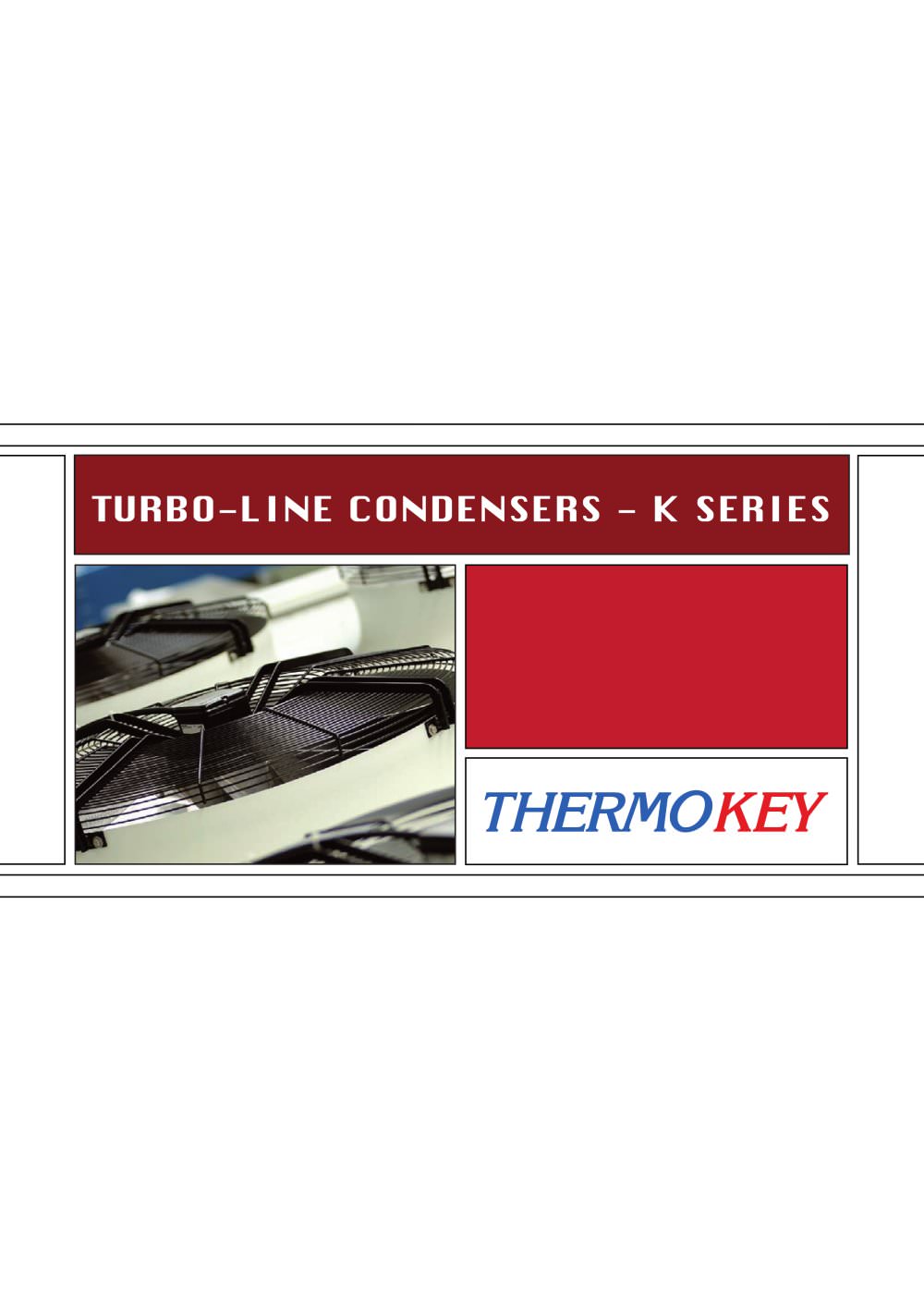

TURBO-LINE CONDENSERS - K SERIES >

A completely new series of air cooled axial condensers is born from Thermokeys experience. This series of axial condensers uses 3/8 inch tubes with a special internal riffl ing and a high effi ciency fi n. The fi n has been specially designed to guarantee a high thermal exchange coeffi cient with low air pressure drops by combining both special tubes and fi ns the following features can be achieved: - Maximum capacity related to the heat exchangerҒs dimensions. - Minimum refrigerant charge. - The most strict environment standards for sound pollution can be met. The declared capacities and the...

Equipment type - Tipo di apparecchioK = Number of separate circuits Numero di circuiti separati > Axial condensers - Condensatori assiali > Sound level - Livello rumorositH = > Air fl ow direction - Direzione ariaH = high - alta > horizontal - orizzontale L = low - bassa V = vertical - verticale Q = quiet - silenziata R = residential (ultra quiet) - residenziale (ultra silenziato) Wiring - CablaggioE = > with junction box - scatola di derivazione Q = W = with electrical panel and CE marking con quadro elettrico e marcatura CE with electrical panel built to customers specifi cations - con quadro...

The capacities indicated in the catalogue are stated in accordance with the ENV 327 standards taking into consideration the following working conditions: Air inlet temperature T > 1 : 25C Condensing temperature T > 1 : 25аC Temperatura condensazione T T > C : 40C Refrigerant R404A T > c : 40аC Refrigerante impiegato R404A > 1 (T > c -T > 1 ) : 15 K The capacities indicated in the catalogue are referred to the working with cleaned coil. For other conditions please use Archimede selection software or the following formula: Le potenze indicate a catalogo sono espresse in accordo alle norme ENV 327...

FOR MOD. 1780.BTHE CONNECTIONS AREON TWO OPPOSITE SIDES(SEE ARCHIMEDE SELECTIONSOFTWARE FOR DETAILS) Model - ModelloN Feets - Nа PiediA (mm)C (mm)D (mm)E (mm)F (mm) C_1180._ 41470765138013201410 C_1280._ 42820765138013202760 C_1380._ 44170765138013204110 C_1480._ 65520765138013202700 C_1580._ 86870765138013202700 C_1680._ 88220765138013202700 C_1780._ 89570765138013204050 >

FOR MOD. 2780.B 2880.B ֖ 2880.CTHE CONNECTIONS AREON TWO OPPOSITE SIDES(SEE ARCHIMEDE SELECTIONSOFTWARE FOR DETAILS) Model - ModelloN Feets - Nа PiediA (mm)C (mm)D (mm)E (mm)F (mm) C_2180._ 41470765240023401410 C_2280._ 42820765240023402760 C_2380._ 44170765240023404110 C_2480._ 65520765240023402700 C_2580._ 86870765240023402700 C_2680._ 88220765240023402700 C_2780._ 89570765240023404050 C_2880._ 810920765240023404050 >

300 Fan diameter Diametro ventilatori (mm)L [mm] 500645ؘ 630776 800801 L 300 > L 300 > 52 Fan diameterDiametro ventilatori (mm)H [mm]A [mm] > A ؘ 500330572 630199703 ؘ 800649703 > H

Sound power level increasing according to fans numberIncremento del livello di potenza sonora relativa al numero di ventilatori Nr. Fans - Nr. Ventilatori 234567810121416 dB(A) 356788910111112 >

TURBO LINE AXIAL CONDENSERS - K SERIES THERMOKEY WWW.THERMOKEY.COM WWW.THERMOKEY.COM >

TURBO-LINE CONDENSERS - K SERIES - RELEASE 00 - 10/2007 >
