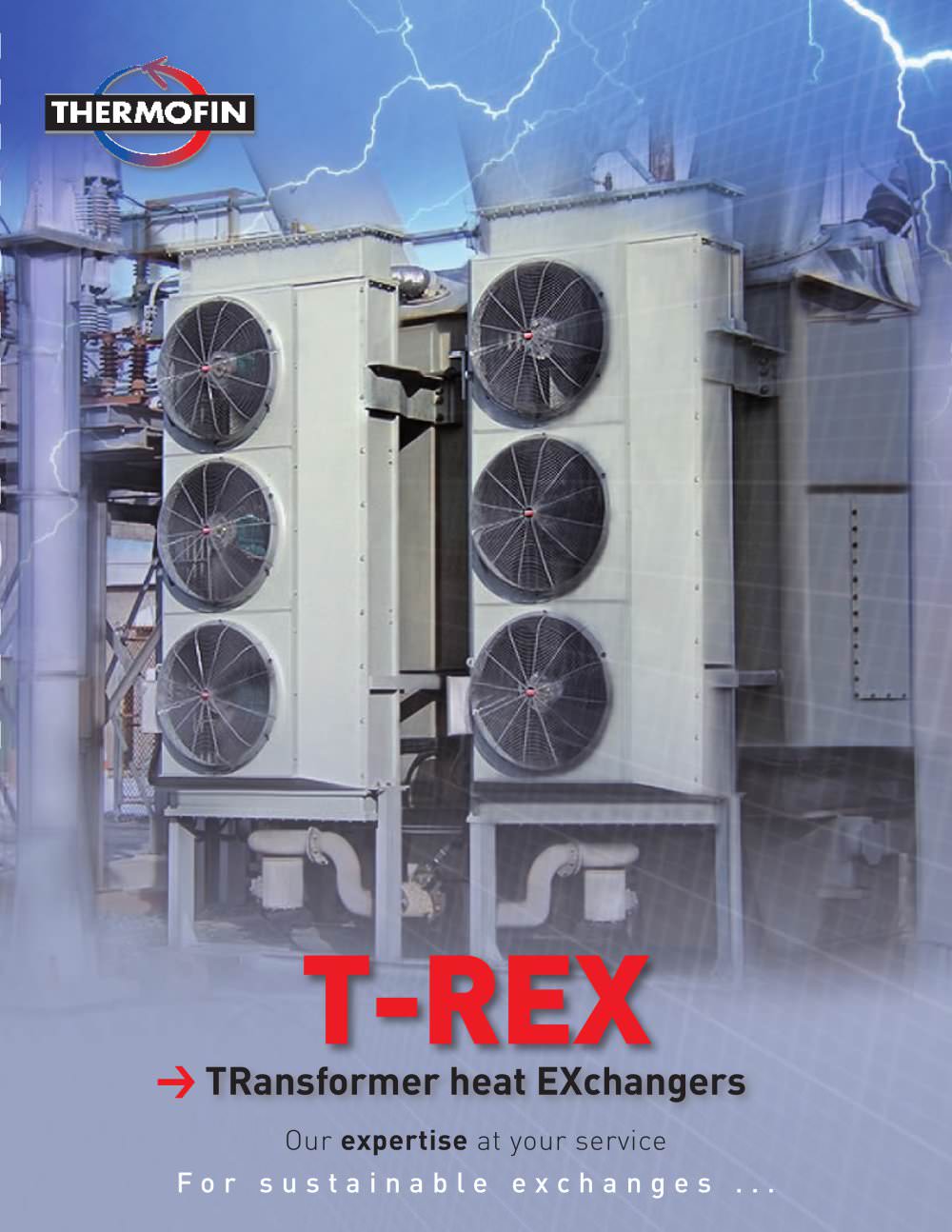

Thermofin T-REX TRansformer heat EXchangers Our expertise at your service For sustainable exchanges ...

Transformer heat exchangers Critical part of the electrical sub-station, the transformer oil cooler insures the integrity and increases the efficiency of the transformer unit. To meet these two requirements, Thermofin’s design and construction is always conducted with the following key guidelines: A highly specialized thermal design optimizing transformer oil cooling. Irreproachable cleanliness of the cooler, to insure the integrity of the transformer is never at risk of being compromised. Heavy duty construction for reliable extended life limiting maintenance and shut down requirements....

configurations OFAF type Oil Forced-Air Forced This is the most commonly used type of heat exchanger. It offers all the advantages of Thermofin’s famous removable cover plate line of heat exchangers, allowing easy internal access to the surface of the tubes. Industrial fans and electric motors for reliability make these units a durable part of your equipment. Robust fan guards in conformance with OSHA standards Removable cover plates Expansion joint Industrial fan Easy access to the fan (option)

OFWF type Oil Forced-Water Forced More common on industrial units, this type of heat exchanger is constructed as a shell and tube unit. It permits the reduction in size of the active oil cooling part by using water as the cooling medium. Various waterbox (or head) designs are available allowing access to the tubes. Leak Detection options are also available. ONWF type Oil Natural-Water Forced La fiabilité d’un échangeur ne peut être garantie sans un choix judicieux des matériaux et une conception bien pensée. Par exemple, pour assurer une étanchéité durable et fiable des couvercles, The use...

To facilitate the installation of Thermofin coolers on your transformers, Thermofin offers a wide range of services and options for your equipments : Other options Various types of connections: B16.5 flanges, “Dresser ” couplings, NPT, Victaulic connections, … “Dresser” coupling Removable fans for easy access to electric motors and heat exchanger fin surfaces. Thermal overload protection for electric motors. Robust fan guards that are also in conformance with OSHA standards. Numerous material combinations are available to meet the needs of your application (copper fins, stainless steel...

The heat exchange specialist Since 1993, Thermofin has designed, manufactured and marketed a large range of high quality exchangers for industrial processes. Over the years, Thermofin has become one of North America’s leading name in thermal exchange. Through its expertise and its dedicated workforce, Thermofin will always offer you the right exchanger: the one for sustainable exchanges ... Gasketed plate heat exchangers Industrial heat exchanger Extruded aluminum finned tubes 47, Marie-Victorin Blvd. Candiac Quebec, Canada J5R 1B6 Tel.: (450) 444-4405 Fax: (450) 444-7745 E-mail:...
