Thermal protectors series CH6/SH6

Product catalog summary

Specifications:
Diameter with/without insulation cap: 9.8/9.3 mm
Height with/without insulation cap: 7.6/7.2 mm
Length of insulation cap: 17 mm

Application:
The CH6/SH6 series thermal protectors are designed for medium-sized standard electric motors that experience high short-circuit currents and require automatic resetting after overheating and cooling.

Design:
The H6 temperature limiting switches are based on Thermik's proven 06 series mechanism. The SH6 protectors have a reinforced contact system for higher currents. Versions include SH6 with an insulation cap and CH6 without.

Operation:
Upon reaching the rated switching temperature, the bimetallic disc snaps open the contacts. It resets to close the contacts after cooling below the resetting temperature.

Features:
- High performance with a maximum switching current of 42 A
- Quick response due to small protector mass and brass housing
- Excellent long-term performance with fine-silver contacts and constant contact resistance
- Very short bouncing times (< 1 ms)
- Instantaneous switching with constant contact pressure
- Temperature resistance due to high-temperature materials

Technical Data:
- Contact type: Normally Closed (NC)
- Nominal switching temperature (NST): 70°C – 200°C
- Standard tolerance: ±10 K
- Resetting temperature varies by standard and NST
- Operating voltage: AC/DC 500V~
- Rated voltage: 250 V AC (VDE, IEC, CSA), 277V (UL)
- Rated current: 13.5 A (cos ϕ = 1.0), 9A (cos ϕ = 0.6)
- Max. switching current at 250 V: 42 A
- Contact bounce time: < 1 ms
- Impregnation resistance: Suitable according to Thermik-Test
- Contact resistance: < 50 mΩ
- Vibration proof: 100 m/s²
- Pressure stability: 600 N
- Basic insulation: Mylar - Nomex®
- Dielectric strength: 2 kVr.m.s
- Connection leads: Multi-strand wire, 1.0 mm² / AWG 18

Approvals:
- VDE, CB, UL, c-UL

Current Sensitivity:
Dependent on thermal coupling, application area, built-in conditions, outer influences, and wiring length/diameter.

Note:
The data refers to the standard version. For other versions, inquiries are necessary. Technical specifications are subject to change without notice.

Catalog excerpts

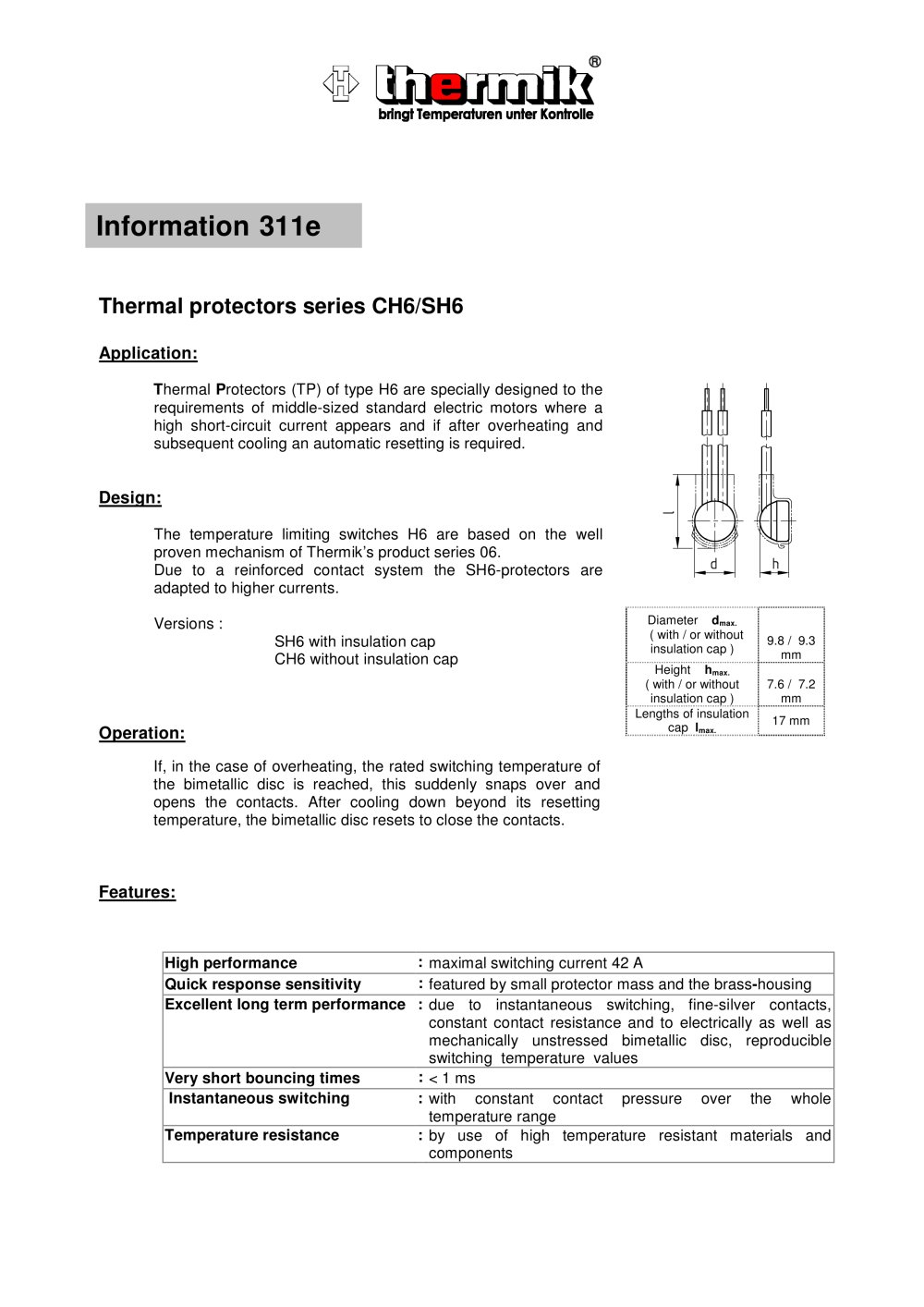

T hermal P rotectors (TP) of type H6 are specially designed to the requirements of middle-sized standard electric motors where a high short-circuit current appears and if after overheating and subsequent cooling an automatic resetting is required. > The temperature limiting switches H6 are based on the well proven mechanism of Thermiks product series 06. Due to a reinforced contact system the SH6-protectors are adapted to higher currents. Versions : SH6 with insulation cap CH6 without insulation cap > Diameter d max. ( with / or without insulation cap ) 9.8 / 9.3 mm Height h max. ( with / or without insulation cap ) 7.6 / 7.2 mm Lengths of insulation cap l max. 17 mm If, in the case of overheating, the rated switching temperature of the bimetallic disc is reached, this suddenly snaps over and opens the contacts. After cooling down beyond its resetting temperature, the bimetallic disc resets to close the contacts. > High performance : maximal switching current 42 A Quick response sensitivity : featured by small protector mass and the brass - housing Excellent long term performance : due to instantaneous switching, fine- silver contacts, constant contact resistance and to electrically as well as mechanically unstressed bimetallic disc, reproducible switching temperature values Very short bouncing times : < 1 ms Instantaneous switching : with constant contact pressure over the whole temperature range Temperature resistance : by use of high temperature resistant materials and components >
