Thermocouple Capacitance Welder (CW)

Thermocouple Capacitance Welder (CW)
1 / 3 PagesView full catalog

Thermocouple Capacitance Welder (CW)

Product catalog summary
Overview: The document provides information about the Capacitance Welder for Hot Junctions, a product by Thermal Detection Limited. This equipment is essential for forming reliable thermocouple hot junctions by fusing dissimilar materials into a homogeneous junction.
Specifications: The SR Series of welding machines, specifically models SR-48 and SR-80, operate on a capacitance discharge principle using a mains supply. These machines are designed for simplicity, speed, and cost-effectiveness in creating thermocouple junctions.
Accessories: The document lists several accessories available for use with the capacitance welder, including a foot switch, impact welding clip, pen and plate welding jig, pliers, tweezer electrodes, and carbon electrodes.
Temperature Accessories: Additional accessories related to temperature measurement include Y Piece Extension, Tee Piece Extension, clamps, tri-clover blanks, gaskets, ampoule holders, thermocouple entry gland (TCEG), Type T thermocouple wire, pre-cut validation thermocouples, and validation thermocouples in a loom.
Contact Information: Thermal Detection Limited is located at Unit 6, Primrose Hill Industrial Estate, Orde Wingate Way, Stockton-on-Tees, England, TS19 0GA. They can be contacted via fax at +44 (0) 1642 618307, telephone at +44 (0) 1642 602878, or email at [email protected]. More information is available on their website, www.thermal-detection.com.
See more

Catalog excerpts

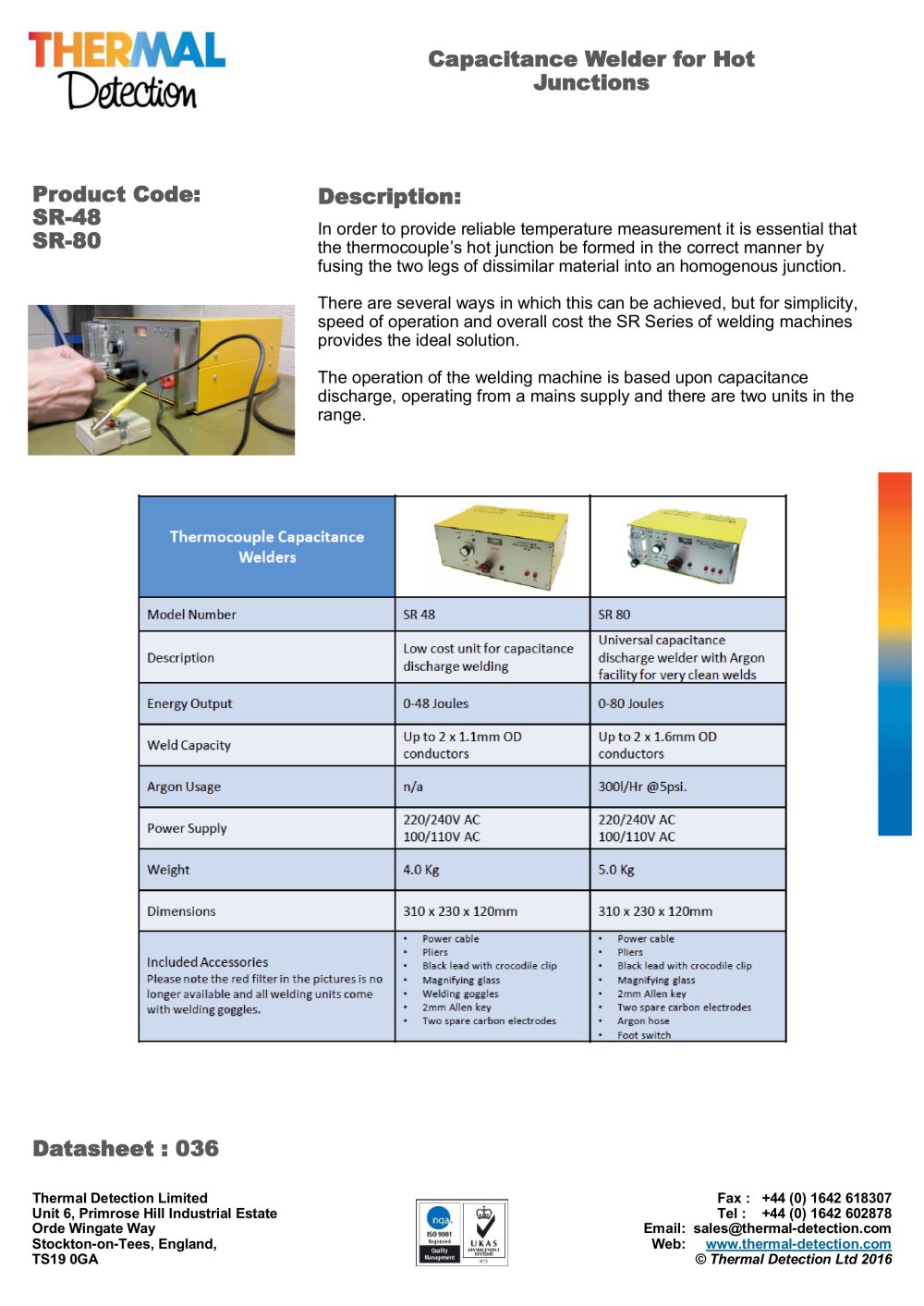

Thermocouple Capacitance Welder (CW)-1

Capacitance Welder for Hot JunctionsProduct Code: Description: SR-48 In order to provide reliable temperature measurement it is essential that SR-80 the thermocouple’s hot junction be formed in the correct manner by fusing the two legs of dissimilar material into an homogenous junction. There are several ways in which this can be achieved, but for simplicity, speed of operation and overall cost the SR Series of welding machines provides the ideal solution. The operation of the welding machine is based upon capacitance discharge, operating from a mains supply and there are two units in the range. Thermal Detection Limited Unit 6, Primrose Hill Industrial Estate Orde Wingate Way Stockton-on-Tees, England, TS19 0GA Fax : +44 (0) 1642 618307 Tel : +44 (0) 1642 602878Email: [email protected] Web: www.thermal-detection.com © Thermal Detection Ltd

 Open the catalog to page 1
Thermocouple Capacitance Welder (CW)-2

Capacitance Welder for Hot Junctions Foot switch Impact Welding Clip Tweezer Electrodes Carbon Electrodes Datasheet : 036 Thermal Detection Limited Unit 6, Primrose Hill Industrial Estate Orde Wingate Way Stockton-on-Tees, England, TS19 0GA Fax : +44 (0) 1642 618307 Tel : +44 (0) 1642 602878 Email: [email protected] Web: www.thermal-detection.com © Thermal Detection Ltd 2016

 Open the catalog to page 2
Thermocouple Capacitance Welder (CW)-3

Capacitance Welder for Hot Junctions Temperature Accessories: Type T Thermocouple Wire Pre-cut Validation Thermocouples Validation Thermocouples in a Loom Thermocouple Entry Gland TCEG Clamps, Tri-clover blanks, gaskets Type T thermocouple Wire Ampoule Holders Datasheet : 036 Thermal Detection Limited Unit 6, Primrose Hill Industrial Estate Orde Wingate Way Stockton-on-Tees, England, TS19 0GA Fax : +44 (0) 1642 618307 Tel : +44 (0) 1642 602878 Email: [email protected] Web: www.thermal-detection.com © Thermal Detection Ltd 2016

 Open the catalog to page 3
