SL150 Autoclave chamber/load probe
3Pages

{{requestButtons}}

Catalog excerpts

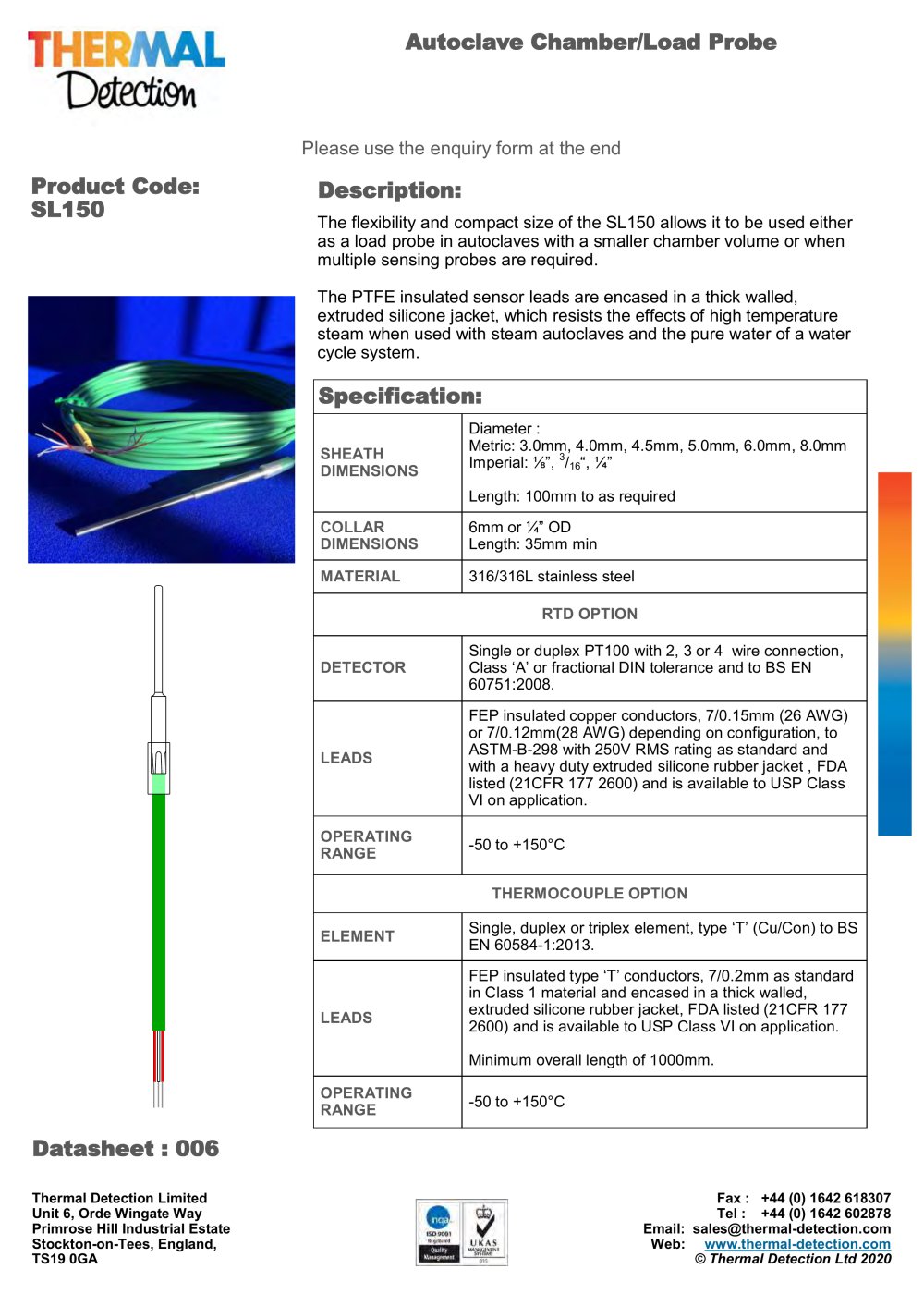

SL150 Autoclave chamber/load probe - 1

Autoclave Chamber/Load Probe Please use the enquiry form at the end Description: The flexibility and compact size of the SL150 allows it to be used either as a load probe in autoclaves with a smaller chamber volume or when multiple sensing probes are required. The PTFE insulated sensor leads are encased in a thick walled, extruded silicone jacket, which resists the effects of high temperature steam when used with steam autoclaves and the pure water of a water cycle system. Specification: SHEATH DIMENSIONS Diameter : Metric: 3.0mm, 4.0mm, 4.5mm, 5.0mm, 6.0mm, 8.0mm Imperial: ⅛”, 3/16“, ¼” Length: 100mm to as required COLLAR DIMENSIONS 316/316L stainless steel RTD OPTION Single or duplex PT100 with 2, 3 or 4 wire connection, Class ‘A’ or fractional DIN tolerance and to BS EN 60751:2008. FEP insulated copper conductors, 7/0.15mm (26 AWG) or 7/0.12mm(28 AWG) depending on configuration, to ASTM-B-298 with 250V RMS rating as standard and with a heavy duty extruded silicone rubber jacket , FDA listed (21CFR 177 2600) and is available to USP Class VI on application. OPERATING RANGE Single, duplex or triplex element, type ‘T’ (Cu/Con) to BS EN 60584-1:2013. FEP insulated type ‘T’ conductors, 7/0.2mm as standard in Class 1 material and encased in a thick walled, extruded silicone rubber jacket, FDA listed (21CFR 177 2600) and is available to USP Class VI on application. Minimum overall length of 1000mm. OPERATING RANGE Datasheet : 006 Thermal Detection Limited Unit 6, Orde Wingate Way Primrose Hill Industrial Estate Stockton-on-Tees, England, TS19 0GA Fax : +44 (0) 1642 618307 Tel : +44 (0) 1642 602878 Email: sales@thermal-detection.com Web: www.thermal-detection.com © Th

Open the catalog to page 1
SL150 Autoclave chamber/load probe - 2

Autoclave Chamber/Load Probe Please use the enquiry form at the end Probe Mounting Options For this type of probe the seal is made directly onto the cable, using Teflon® olives. All the options below can be supplied along with the probes, or ordered separately. Hygienic Compression Fitting: The fitting is designed to fit over the silicone cable, and consists of a compression fitting with Teflon® olive, and a choice of tri-clover flanges (0.5-0.75”, 1-1.5”, 2”, 2.5”, 3”). All in 316 stainless steel. Single and multiprobe options available for sealing up to 3 probes through a single fitting....

Open the catalog to page 2
SL150 Autoclave chamber/load probe - 3

SL150 Series Autoclave Chamber/Load Probe Product Enquiry Form Please download PDF and fill in the boxes. Return form to sales@thermal-detection.com or fax to +44 1642 618307 Organisation: Country Section 1 - unit dimensions (in mm) If bend in probe required please see SL160 series probe Section 2 - Sensor Configuration Sensor Number Type T Thermocouple Only Single Duplex Triplex Section 4 - Mounting Options Section 3 - Optional Features (in mm) Reduced Probe Tip Triclover single probe Triclover multi probe Threaded single probe Tri-clover size / thread type and size? Section 4 -...

Open the catalog to page 3
