TPP 5090 Polishing machine

TPP 5090 Polishing machine
1 / 2 PagesView full catalog

TPP 5090 Polishing machine

Product catalog summary
Overview: The TPP 5090 Polishing Machine by Th. Wortelboer BV is designed for fast and safe polishing of welding preparations, suitable for various industries including boiler and heat exchanger manufacturing, offshore constructions, and shipbuilding.
Specifications: The TPP 5090 series includes models with different handles and a motorized option. It features an air consumption of 0.46 to 0.58 m³/min, a speed of 12,000 rpm, and a working pressure of 6 Bar. The machine weighs 3.5 kg and offers a polishing reach of 20-30 mm.
Features: The machine is compact, easily adjustable, and allows for quick conditioning of tube and pipe ends as well as plate edges. It includes two polishing wheels that can be adjusted for material thickness and wear correction.
Polishing Options: Available polishing wheels include flap wheels (grid 40 and 80) and black strip wheels, with replaceable options in various diameters. The machine is supplied with a heavy-duty case and necessary tools.
Applications: The TPP 5090 is effective in removing rust, paint, and coatings from tubes, pipes, and plate edges, enhancing welding preparation efficiency.
Contact Information: Th. Wortelboer B.V., P.O. Box 5, NL 6580 AA Malden, Holland. Phone: +31 24 358 65 14, Fax: +31 24 358 70 79, Email: [email protected]
See more

Catalog excerpts

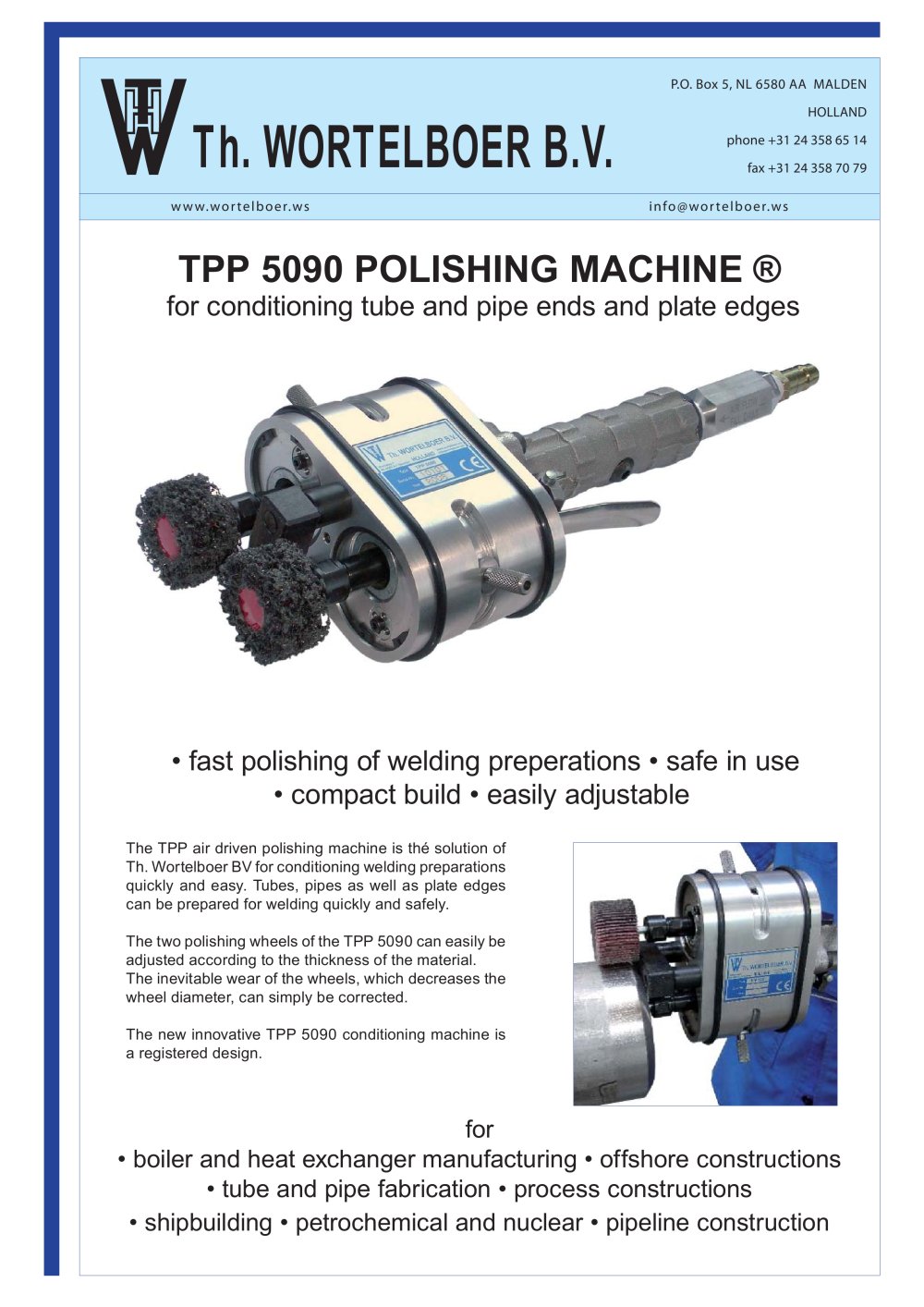

TPP 5090 Polishing machine-2

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:22.00pt "Arial", sans-serif; } technical specifications TPP sries Model TPP 5090 S Type with straight handle Air consumption 0,46 rrvVmin - 16 CFM Drive manual feed Polishing reach Available grids Speed (unloaded) Working pressure Weight TPP 5090 D with D handle 0,46 m3/min - 16 CFM manual feed TPP 5090 AUTO with drive unit 0,58 rrvVmin - 20 CFM motorized rotation 20 - 30 mm flap wheels (grid 40 and grid 80) and (black) strip wheels 12.000 rpm/min...

 Open the catalog to page 2
