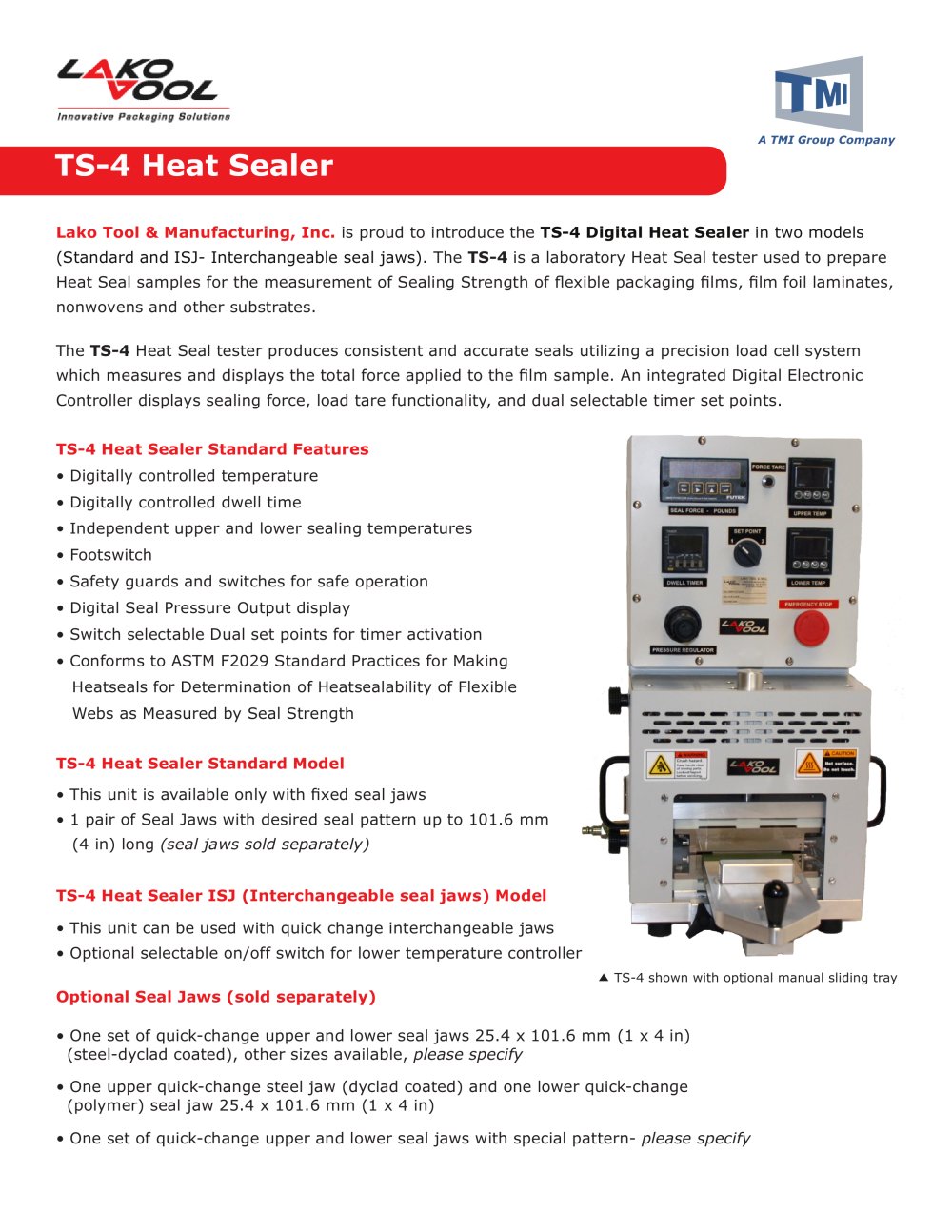

A TMI Group Company TS-4 Heat Sealer Lako Tool & Manufacturing, Inc. is proud to introduce the TS-4 Digital Heat Sealer in two models (Standard and ISJ- Interchangeable seal jaws). The TS-4 is a laboratory Heat Seal tester used to prepare Heat Seal samples for the measurement of Sealing Strength of flexible packaging films, film foil laminates, nonwovens and other substrates. The TS-4 Heat Seal tester produces consistent and accurate seals utilizing a precision load cell system which measures and displays the total force applied to the film sample. An integrated Digital Electronic Controller displays sealing force, load tare functionality, and dual selectable timer set points. TS-4 Heat Sealer Standard Features • Digitally controlled temperature • Digitally controlled dwell time • Independent upper and lower sealing temperatures • Footswitch • Safety guards and switches for safe operation • Digital Seal Pressure Output display • Switch selectable Dual set points for timer activation • Conforms to ASTM F2029 Standard Practices for Making Heatseals for Determination of Heatsealability of Flexible Webs as Measured by Seal Strength TS-4 Heat Sealer Standard Model • This unit is available only with fixed seal jaws • 1 pair of Seal Jaws with desired seal pattern up to 101.6 mm (4 in) long (seal jaws sold separately) TS-4 Heat Sealer ISJ (Interchangeable seal jaws) Model • This unit can be used with quick change interchangeable jaws • Optional selectable on/off switch for lower temperature controller ▲ TS-4 shown with optional manual sliding tray Optional Seal Jaws (sold separately) • One set of quick-change upper and lower seal jaws 25.4 x 101.6 mm (1 x 4 in) (steel-dyclad coated), other sizes available, please specify • One upper quick-change steel jaw (dyclad coated) and one lower quick-change (polymer) seal jaw 25.4 x 101.6 mm (1 x 4 in) • One set of quick-change upper and lower seal jaws with special pattern- please specify

Optional Film Sample Loading Devices Shelf Film sample tray • Stationary 1 Piece Design Manual Sliding Tray • Precision Bearing Guided Slide Table Design • Magnetic Film Sample Hold Down • Repeatable Film Sample Presentation Innovative Packaging Solutions Input Connections ▲ TS-4 shown with optional manual sliding tray TS-4 Heat Sealer Front Control Panel Digital Seal Force Output Display Seal Force Tare Upper and Lower Seal Temperature Control Seal Dwell Timer Seal Pressure Regulator Adjustment Knob Seal Dwell Timer Activation Selector Switch Emergency Stop

Standard Model ISJ (Interchangeable Seal Jaws) Innovative Packaging Solutions Sealing Temperature Sealing Force Range Minimum Range Maximum Sealing Dwell Time Range Minimum Range Maximum Load Cell Seal Surface Flat,Vertical, Horizontal, Custom or Standard Geometry Machine Requirements Physical Specifications For more information on Lako's TS-4 Heat Sealer, or any of our products, contact Testing Machines Inc. at 631-439-5400 or email: [email protected] Messmer Instruments Business Estate West Mill, Gravesend Perrysburg, Ohio Lawson Hemphill Adamel Lhomargy Batiment 6 Route d'Ozoir, Roissy...
