Testing Machines Inc
Standard Sheet Former

Standard Sheet Former

Product catalog summary

Contact Information:
Testing Machines Inc., Messmer Instruments, Büchel BV, Lako Tool and Manufacturing Inc., Lawson Hemphill, Adamel Lhomargy SARL, TMI Canada.

Product Overview:
The Standard Sheet Former (Model 73-60) is designed for preparing 159 mm hand-sheets to test and evaluate the physical properties of pulp. It is constructed from durable 316 stainless steel and includes a polymer sump, manual stirrer, and a unique latch system for proper sealing.

Applications:
Pulp, Paper, Recycled Paper.

Features:

316 Stainless steel construction
Polymer sump
Manual stirrer and inlet valve
Unique latch system
Includes grid plate, stirrer, couch roll, and two couch plates
Optional White Water Return System
Compliance with TAPPI T-205 & T-218, PAPTAC C.4 & C.5, ISO 5269/1, SCAN C26

Included Accessories:

Stainless steel grid plate
Manual stirrer
Two couch plates
Couch roll

Optional Accessories:

Drying rings
Drying discs
Blotters
White water return system

Specifications:

Instrument size: 36 X 30.5 X 140 cm (14” x 12” x 55” in)
Weight: 57 kg (125 lbs)
Shipping dimensions: 114 X 63.5 X 51 cm (45” x 25” x 20” in)
Shipping weight: 84 kg (185 lbs)

Ordering Information:
Part No: 73-60-00-0001, Model: 200-1, Option: White Water Return System (110V or 220V), Electrical: Not applicable.

Catalog excerpts

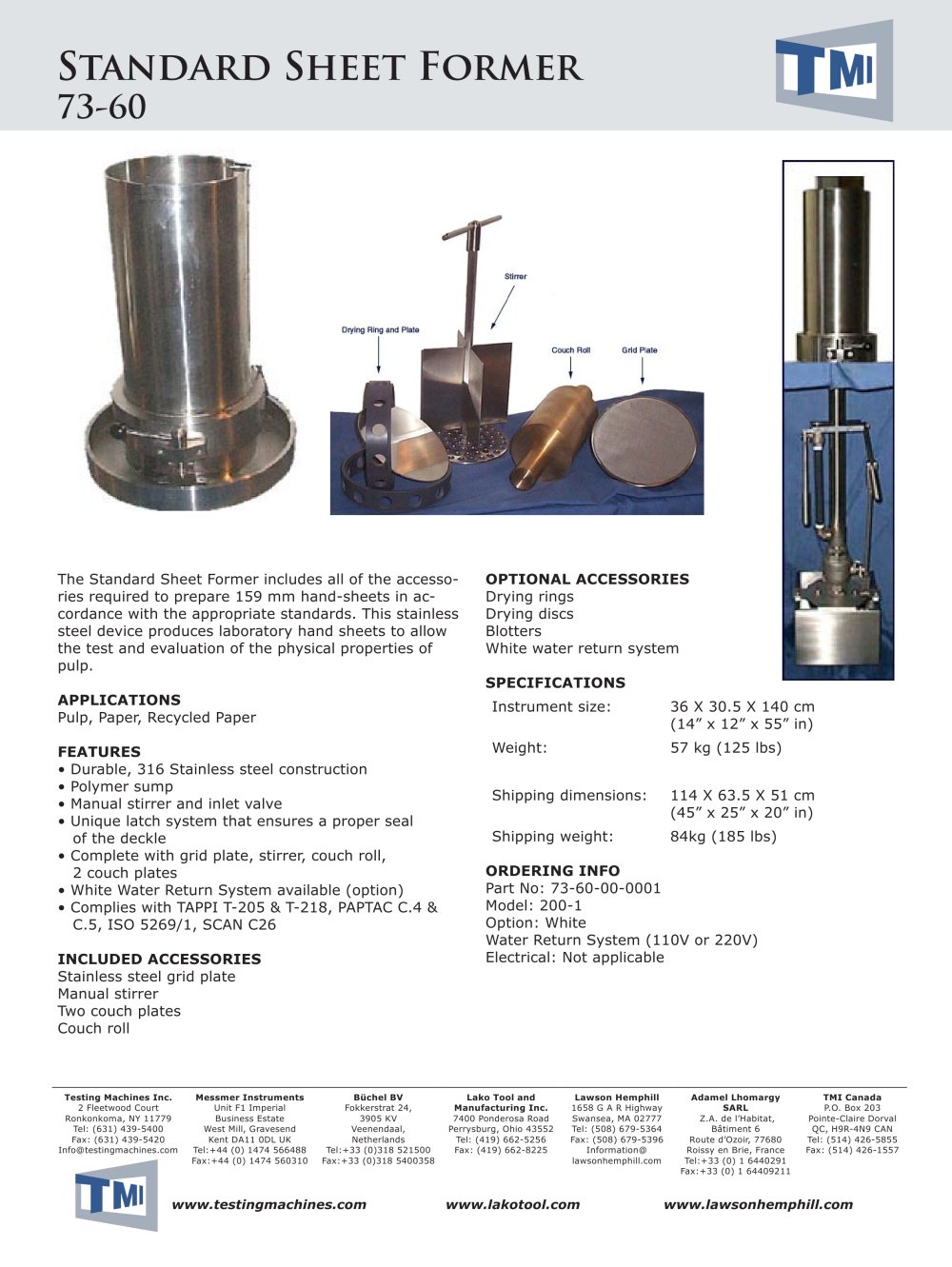

STANDARD SHEET FORMER Drying Fling and Rials The Standard Sheet Former includes all of the accesso- ries required to prepare 159 mm hand-sheets in ac- cordance with the appropriate standards. This stainless steel device produces laboratory hand sheets to allow the test and evaluation of the physical properties of Pulp, Paper, Recycled Paper • Durable, 316 Stainless steel construction • Polymer sump • Manual stirrer and inlet valve • Unique latch system that ensures a proper seal • Complete with grid plate, stirrer, couch roll, • White Water Return System available (option) • Complies with TAPPI T-205 &T-218, PAPTAC C.4 & INCLUDED ACCESSORIES Stainless steel grid plate Manual stirrer Couch roll OPTIONAL ACCESSORIES Drying rings Drying discs White water return system Instrument size: Shipping dimensions: Shipping weight: ORDERING INFO Option: White Water Return System (110V or 220V) Messmer Instruments Business Estate West Mill, Gravesend Lawson Hemphill Adamel Lhomargy Roissy en Brie, France Pointe-Claire Dorva
