SL-10 Hot Tack Tester & Seal Tester
4Pages

{{requestButtons}}

Catalog excerpts

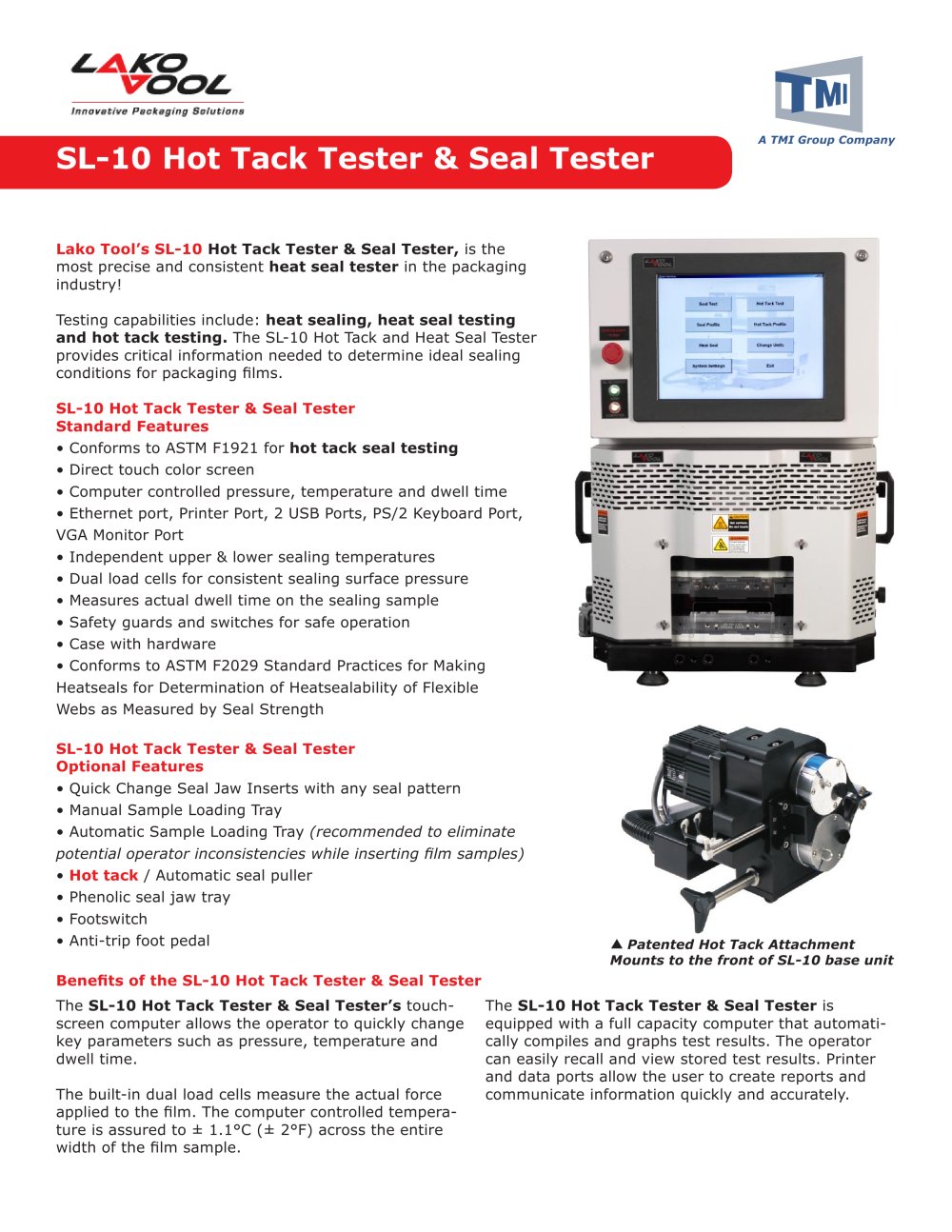

SL-10 Hot Tack Tester & Seal Tester - 1

SL-10 Hot Tack Tester & Seal Tester A TMI Group Company The SL-10 Hot Tack Tester & Seal Tester’s touch-screen computer allows the operator to quickly change key parameters such as pressure, temperature and dwell time. The built-in dual load cells measure the actual force applied to the film. The computer controlled temperature is assured to ± 1.1°C (± 2°F) across the entire width of the film sample. The SL-10 Hot Tack Tester & Seal Tester is equipped with a full capacity computer that automatically compiles and graphs test results. The operator can easily recall and view stored test results. Printer and data ports allow the user to create reports and communicate information quickly and accurately. Benefits of the SL-10 Hot Tack Tester & Seal Tester Lako Tool’s SL-10 Hot Tack Tester & Seal Tester, is the most precise and consistent heat seal tester in the packaging industry! Testing capabilities include: heat sealing, heat seal testing and hot tack testing. The SL-10 Hot Tack and Heat Seal Tester provides critical information needed to determine ideal sealing conditions for packaging films. SL-10 Hot Tack Tester & Seal Tester Standard Features • Conforms to ASTM F1921 for hot tack seal testing • Direct touch color screen • Computer controlled pressure, temperature and dwell time • Ethernet port, Printer Port, 2 USB Ports, PS/2 Keyboard Port, VGA Monitor Port • Independent upper & lower sealing temperatures • Dual load cells for consistent sealing surface pressure • Measures actual dwell time on the sealing sample • Safety guards and switches for safe operation • Case with hardware • Conforms to ASTM F2029 Standard Practices for Making Heatseals for Determination of Heatsealability of Flexible Webs as Measured by Seal Strength SL-10 Hot Tack Tester & Seal Tester Optional Features • Quick Change Seal Jaw Inserts with any seal pattern • Manual Sample Loading Tray • Automatic Sample Loading Tray (recommended to eliminate potential operator inconsistencies while inserting film samples) • Hot tack / Automatic seal puller • Phenolic seal jaw tray • Footswitch • Anti-trip foot pedal £ Patented Hot Tack Attachment Mounts to the front of SL-10 base unit

Open the catalog to page 1
SL-10 Hot Tack Tester & Seal Tester - 2

SL-10 Hot Tack Tester and Seal Tester Tech Sheet Direct Touch Color Screen The direct-touch color screen allows the user to quickly change the test parameters (pressure, temperature and dwell time), and will automatically graph test results. Test interfaces include: Heat Seal, Seal Test, Hot Tack, Seal Test Profile, and Hot Tack Profile. £ Automatic Sample Loading Tray The automatic sample loading tray assures accurate test results by eliminating any chance of user inconsistencies in testing procedures. The automatic tray inserts the sample without variation and enhances safety. £ External...

Open the catalog to page 2
SL-10 Hot Tack Tester & Seal Tester - 3

Force vs Distance05010015020025002.65.27.810.41315.618.220.823.42628.6Distance (mm)Force (g)Test 1Test 2Test 3Test 4Test 5Test 6Test 7Test 8Test 9Test 10Profile Overlay Curves5010015020025030035040045081.086.091.096.0101.0Upper Temperature (°C)Force (g)Hot Tack Profile BenchmarkSeal Test Profile BenchmarkHot Tack ProfileName: Hot Tack Profile Benchmark010020030040050081869196101Seal Temperature (°C)Force (g) SL-10 Hot Tack Tester and Seal Tester Excel Worksheets Excel Export When used with Microsoft Excel® the SL-10’s program can export test results and parameters to a spreadsheet...

Open the catalog to page 3
SL-10 Hot Tack Tester & Seal Tester - 4

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Messmer Instruments Unit F1 Imperial Business Estate West Mill, Gravesend Kent DA11 0DL UK Tel:+44 (0) 1474 566488 Fax:+44 (0) 1474 560310 Büchel BV Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@...

Open the catalog to page 4
