Programmable Test Stand ESM-301
2Pages

{{requestButtons}}

Catalog excerpts

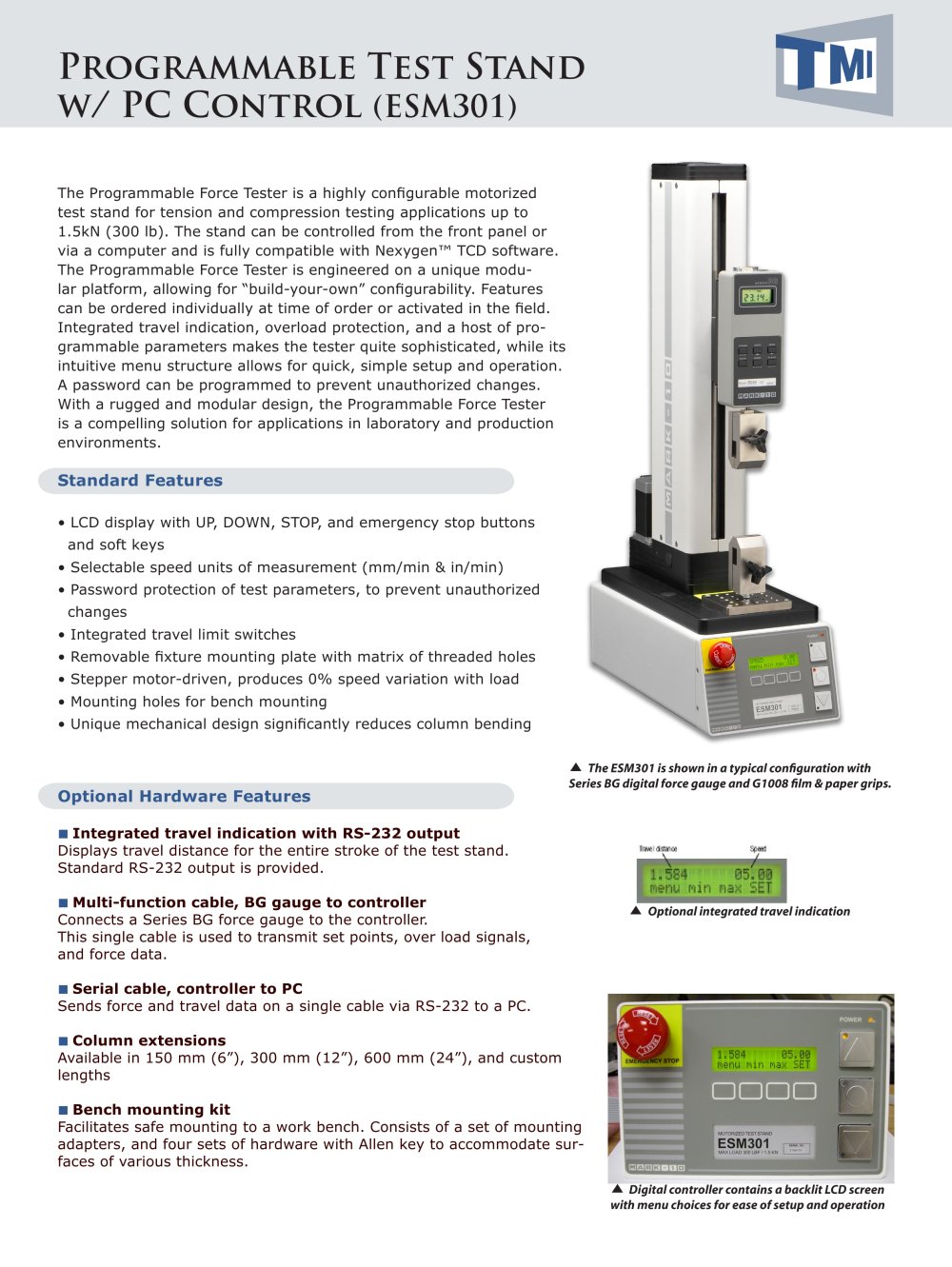

Programmable Test Stand ESM-301 - 1

Programmable Test Stand w/ PC Control (ESM301) The Programmable Force Tester is a highly configurable motorized test stand for tension and compression testing applications up to 1.5kN (300 lb). The stand can be controlled from the front panel or via a computer and is fully compatible with Nexygen™ TCD software. The Programmable Force Tester is engineered on a unique modular platform, allowing for “build-your-own” configurability. Features can be ordered individually at time of order or activated in the field. Integrated travel indication, overload protection, and a host of programmable parameters makes the tester quite sophisticated, while its intuitive menu structure allows for quick, simple setup and operation. A password can be programmed to prevent unauthorized changes. With a rugged and modular design, the Programmable Force Tester is a compelling solution for applications in laboratory and production environments. Standard Features • LCD display with UP, DOWN, STOP, and emergency stop buttons and soft keys • Selectable speed units of measurement (mm/min & in/min) • Password protection of test parameters, to prevent unauthorized changes • Integrated travel limit switches • Removable fixture mounting plate with matrix of threaded holes • Stepper motor-driven, produces 0% speed variation with load • Mounting holes for bench mounting • Unique mechanical design significantly reduces column bending Optional Hardware Features ¡ Integrated travel indication with RS-232 output Displays travel distance for the entire stroke of the test stand. Standard RS-232 output is provided. ¡ Multi-function cable, BG gauge to controller Connects a Series BG force gauge to the controller. This single cable is used to transmit set points, over load signals, and force data. ¡ Serial cable, controller to PC Sends force and travel data on a single cable via RS-232 to a PC. ¡ Column extensions Available in 150 mm (6”), 300 mm (12”), 600 mm (24”), and custom lengths ¡ Bench mounting kit Facilitates safe mounting to a work bench. Consists of a set of mounting adapters, and four sets of hardware with Allen key to accommodate surfaces of various thickness. £ The ESM301 is shown in a typical configuration with Series BG digital force gauge and G1008 film & paper grips. £ Digital controller contains a backlit LCD screen with menu choices for ease of setup and operation £ Optional integrated travel indication

Open the catalog to page 1
Programmable Test Stand ESM-301 - 2

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Messmer Instruments Unit F1 Imperial Business Estate West Mill, Gravesend Kent DA11 0DL UK Tel:+44 (0) 1474 566488 Fax:+44 (0) 1474 560310 Büchel BV Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@...

Open the catalog to page 2
