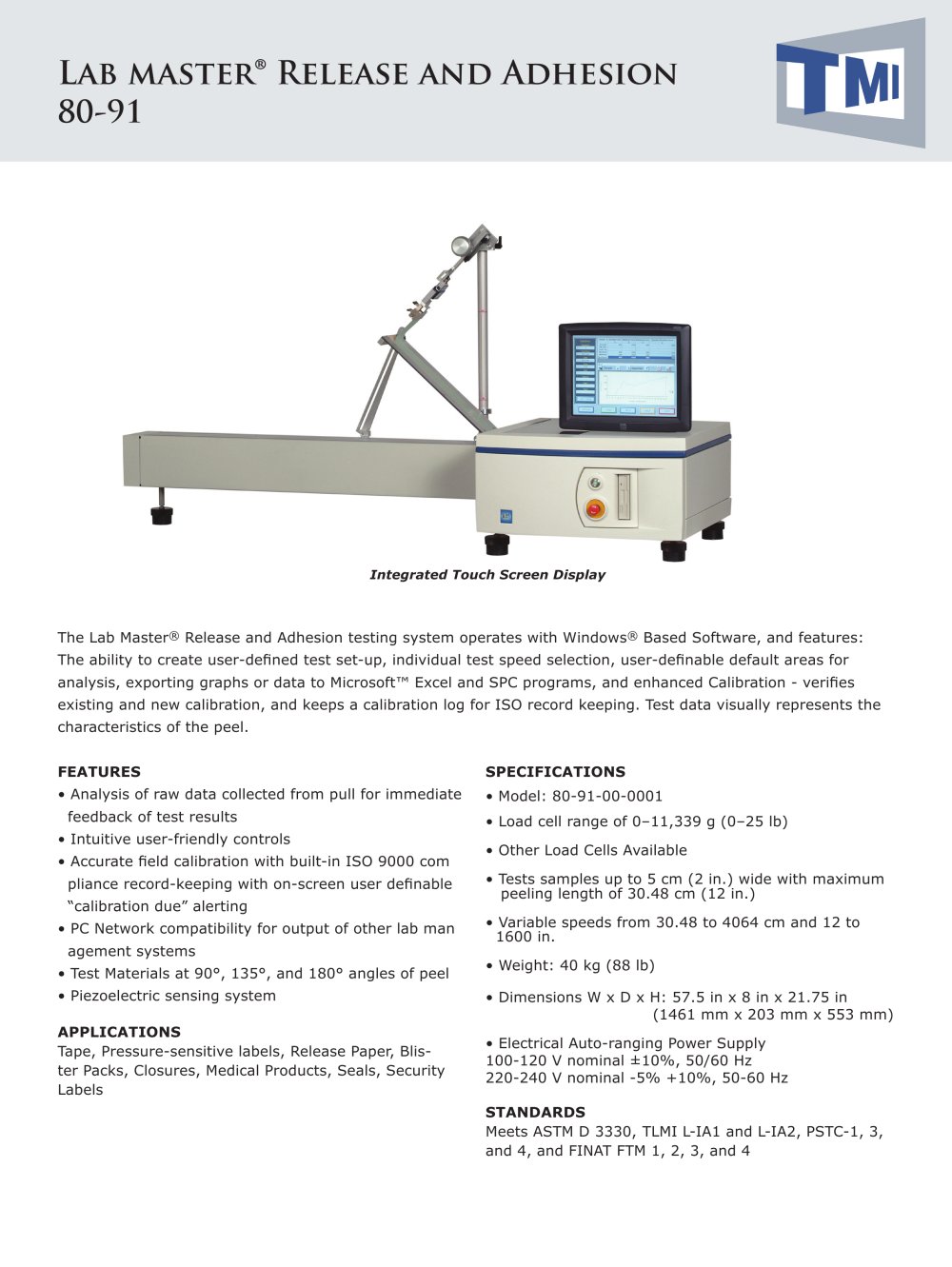

® Lab master Release and Adhesion 80-91 Integrated Touch Screen Display The Lab Master® Release and Adhesion testing system operates with Windows® Based Software, and features: The ability to create user-defined test set-up, individual test speed selection, user-definable default areas for analysis, exporting graphs or data to Microsoft™ Excel and SPC programs, and enhanced Calibration - verifies existing and new calibration, and keeps a calibration log for ISO record keeping. Test data visually represents the characteristics of the peel. FEATURES SPECIFICATIONS • Analysis of raw data collected from pull for immediate • Model: 80-91-00-0001 feedback of test results • Intuitive user-friendly controls • Accurate field calibration with built-in ISO 9000 com pliance record-keeping with on-screen user definable “calibration due” alerting • PC Network compatibility for output of other lab man agement systems • Test Materials at 90°, 135°, and 180° angles of peel • Piezoelectric sensing system APPLICATIONS Tape, Pressure-sensitive labels, Release Paper, Blister Packs, Closures, Medical Products, Seals, Security Labels • Load cell range of 0–11,339 g (0–25 lb) • Other Load Cells Available • Tests samples up to 5 cm (2 in.) wide with maximum peeling length of 30.48 cm (12 in.) • Variable speeds from 30.48 to 4064 cm and 12 to 1600 in. • Weight: 40 kg (88 lb) • Dimensions W x D x H: 57.5 in x 8 in x 21.75 in (1461 mm x 203 mm x 553 mm) • Electrical Auto-ranging Power Supply 100-120 V nominal ±10%, 50/60 Hz 220-240 V nominal -5% +10%, 50-60 Hz STANDARDS Meets ASTM D 3330, TLMI L-IA1 and L-IA2, PSTC-1, 3, and 4, and FINAT FTM 1, 2, 3, and 4

Open the catalog to page 1

Lab Master® Release and Adhesion TEST BED & SPECIMEN CLAMP ◀ Select peel angle to simulate application ◀ Sample clamp measuring 180˚ degree high speed release test. • 90º • 135º • 180º • double-sided tape • adhesive • special test fixture Average of individual specimens • Transducer reading is processed with auto-range software to produce test results • Hundreds of readings are taken during a typical test to provide force/position curves Specimens from samples Samples ↓ ↓ → Sample Conditions ↓ ← ← Exclude result Print ↑ • Minimum, maximum and average data points are displayed ↑ • Area...

Open the catalog to page 2
