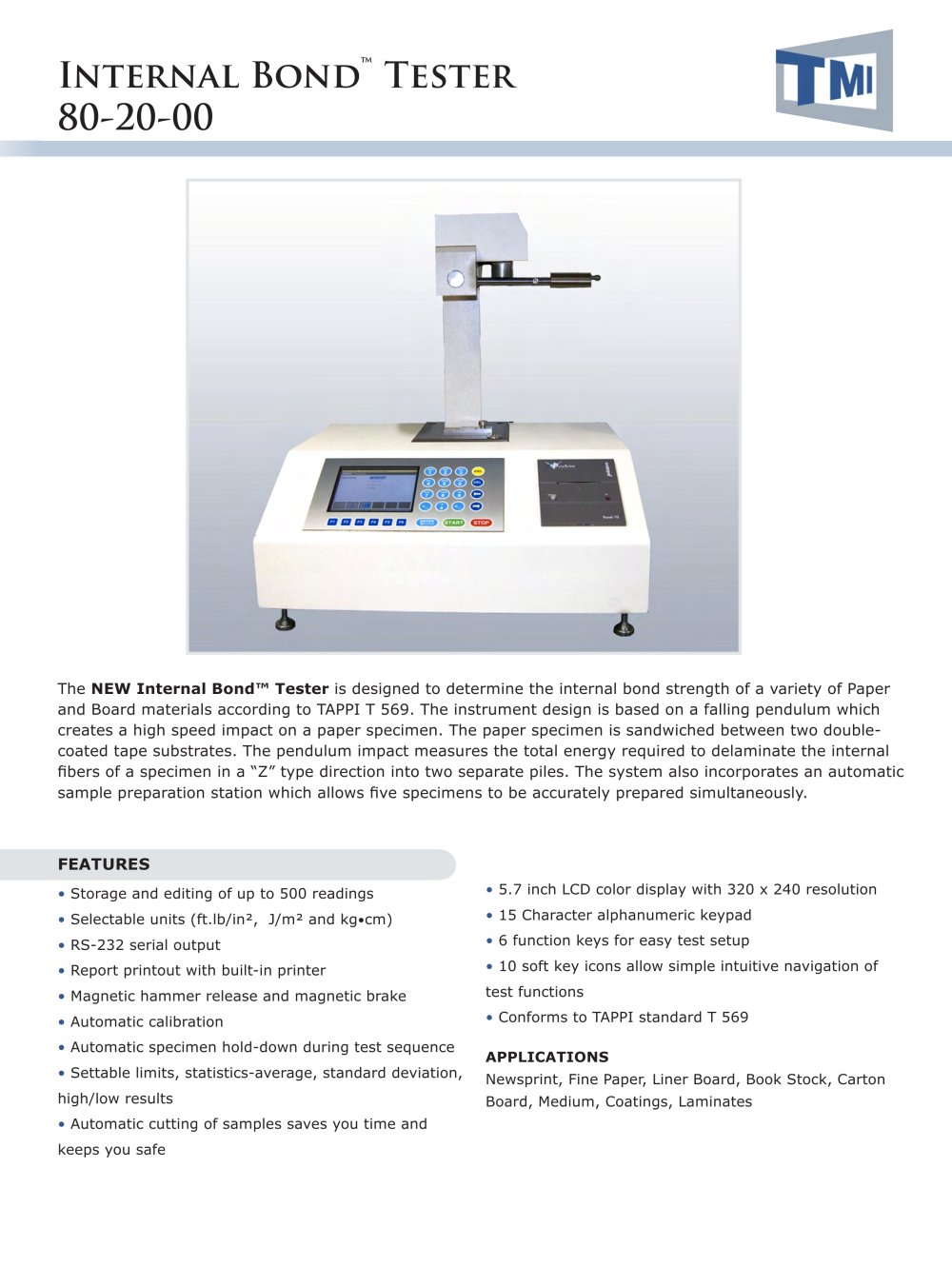

Internal Bond™ Tester 80-20-00 The NEW Internal Bond™ Tester is designed to determine the internal bond strength of a variety of Paper and Board materials according to TAPPI T 569. The instrument design is based on a falling pendulum which creates a high speed impact on a paper specimen. The paper specimen is sandwiched between two doublecoated tape substrates. The pendulum impact measures the total energy required to delaminate the internal fibers of a specimen in a “Z” type direction into two separate piles. The system also incorporates an automatic sample preparation station which allows five specimens to be accurately prepared simultaneously. FEATURES • Storage and editing of up to 500 readings • 5.7 inch LCD color display with 320 x 240 resolution • Selectable units (ft.lb/in², J/m² and kg•cm) • 15 Character alphanumeric keypad • RS-232 serial output • 6 function keys for easy test setup • Report printout with built-in printer • 10 soft key icons allow simple intuitive navigation of • Magnetic hammer release and magnetic brake test functions • Automatic calibration • Conforms to TAPPI standard T 569 • Automatic specimen hold-down during test sequence • Settable limits, statistics-average, standard deviation, high/low results • Automatic cutting of samples saves you time and keeps you safe APPLICATIONS Newsprint, Fine Paper, Liner Board, Book Stock, Carton Board, Medium, Coatings, Laminates

Open the catalog to page 1

Internal Bond™ Tester I-Bond Prep Station ▲ I-Bond Prep Station included Sample Prep Station A precision sample Preparation station with digital display and direct read out in kPa and psi units is available to prepare up to 5 test pieces at the same time. The Sample Prep Station is supplied to provide a consistent adhesive transfer when pressing the test specimen between the double-sided tape and aluminum platens. Included with the Sample Prep Station are 5 aluminum platens with a sample size of 25.4 x 25.4 mm (1.0 x 1.0 inches). The clamping pressure is adjustable from 345 kPa (50 psi) to...

Open the catalog to page 2

INTERNAL BOND TESTER SOFWARE PROGRAM lond ■ Tesl Inslrument Ns Pendulum Into:

Open the catalog to page 3

Internal Bond™ Tester Instrument Specifications Model 80-20-00-0001 Ranges 0 -1050 J/m² (0 – 500 ft.lb x 10-3 ), 0 – 1575J/m² (0 - 750 ft.lb x 10-3 ) and 0 – 2100 J/m² (0 - 1000 ft.lb x 10-3 ) Pendulum Release Magnetic Peak/Angular Resolution 0.04˚ Standard ½ ft.lb/in² pendulum standard, ¾ ft.lb/in² and 1 ft.lb/in² available for stronger materials. Options ¼ ft.lb/in² and other weights also available Results directly in ft.lb/in², J/m², kg•cm Statistics Average, Standard Deviation, Minimum, Maximum and Calibrate function Physical Specifications (Instrument) Weight 23 kg (51 lb) Dimensions...
