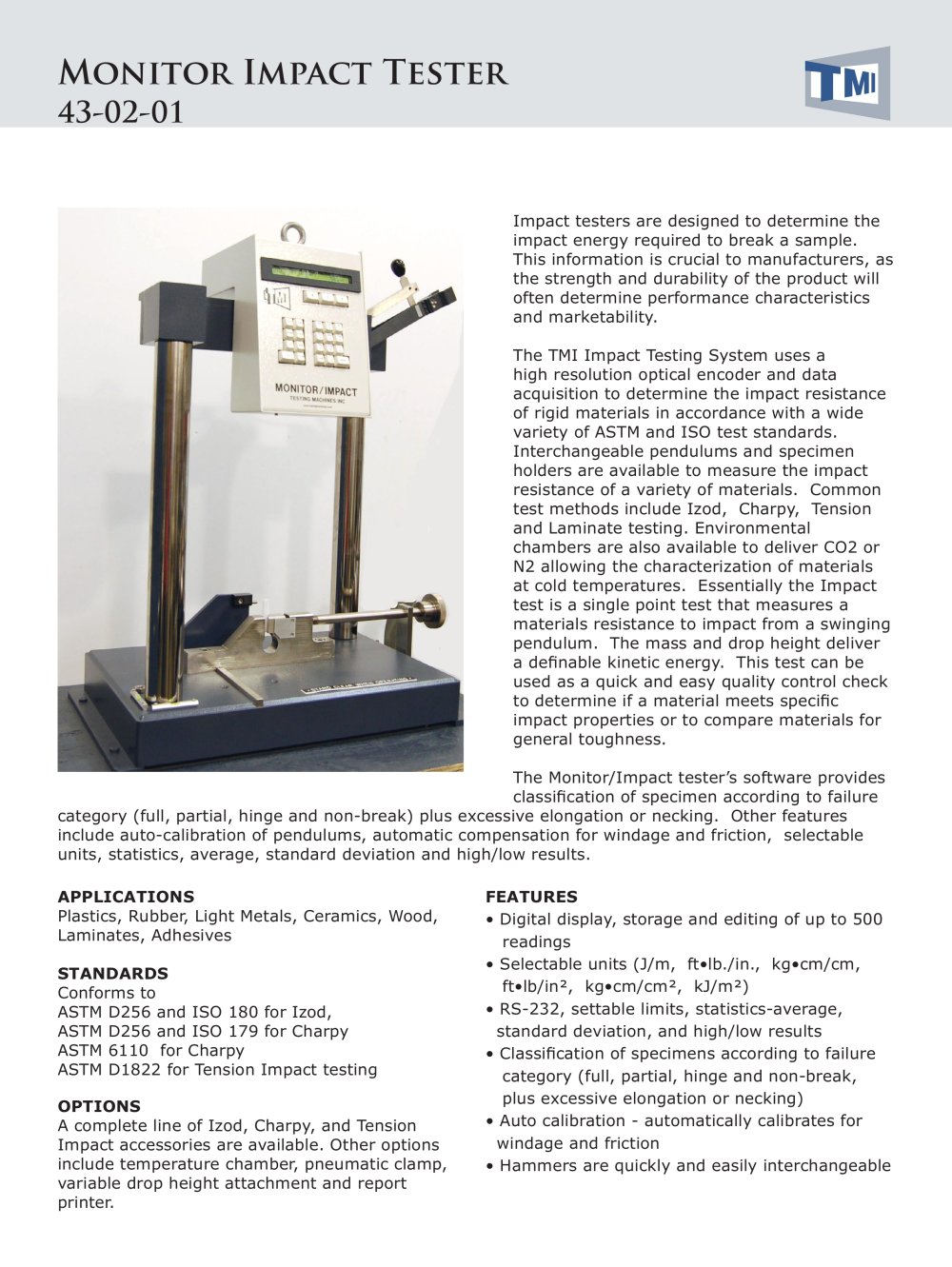

Monitor Impact Tester 43-02-01 Impact testers are designed to determine the impact energy required to break a sample. This information is crucial to manufacturers, as the strength and durability of the product will often determine performance characteristics and marketability. The TMI Impact Testing System uses a high resolution optical encoder and data acquisition to determine the impact resistance of rigid materials in accordance with a wide variety of ASTM and ISO test standards. Interchangeable pendulums and specimen holders are available to measure the impact resistance of a variety of materials. Common test methods include Izod, Charpy, Tension and Laminate testing. Environmental chambers are also available to deliver CO2 or N2 allowing the characterization of materials at cold temperatures. Essentially the Impact test is a single point test that measures a materials resistance to impact from a swinging pendulum. The mass and drop height deliver a definable kinetic energy. This test can be used as a quick and easy quality control check to determine if a material meets specific impact properties or to compare materials for general toughness. The Monitor/Impact tester’s software provides classification of specimen according to failure category (full, partial, hinge and non-break) plus excessive elongation or necking. Other features include auto-calibration of pendulums, automatic compensation for windage and friction, selectable units, statistics, average, standard deviation and high/low results. APPLICATIONS Plastics, Rubber, Light Metals, Ceramics, Wood, Laminates, Adhesives STANDARDS Conforms to ASTM D256 and ISO 180 for Izod, ASTM D256 and ISO 179 for Charpy ASTM 6110 for Charpy ASTM D1822 for Tension Impact testing OPTIONS A complete line of Izod, Charpy, and Tension Impact accessories are available. Other options include temperature chamber, pneumatic clamp, variable drop height attachment and report printer. FEATURES • Digital display, storage and editing of up to 500 readings • Selectable units (J/m, ft•lb./in., kg•cm/cm, ft•lb/in², kg•cm/cm², kJ/m²) • RS-232, settable limits, statistics-average, standard deviation, and high/low results • Classification of specimens according to failure category (full, partial, hinge and non-break, plus excessive elongation or necking) • Auto calibration - automatically calibrates for windage and friction • Hammers are quickly and easily interchangeable

Open the catalog to page 1

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Büchel BV t/a Messmer Büchel Fokkerstrat 24,3905 KV Veenendaal, Netherlands Tel:+31 (0)318 521500 Fax:+31 (0)318 540358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1...

Open the catalog to page 2
