Hygrometer
Hygrometer
This document introduces the Portable Sword Hygrometer, a compact and portable device designed for fast and accurate measurement of relative humidity and temperature in stacks of paper.
Applications
The hygrometer is specifically used for measuring conditions in paper stacks and reams.
Specifications
- Humidity Range: 0 to 100% RH
- Accuracy: ±2%RH from 20°C to 25°C (68°F to 77°F)
- Humidity Resolution: 0.1% RH
- Certified to: NAMAS humidity standards
- Temperature Range: -5°C to +50°C (23°F to 122°F)
- Temperature Accuracy: ±0.5°C (±0.9°F)
- Temperature Resolution: 0.1°C or 0.1°F
- Response Time: Less than 10 seconds at 25°C
Features
- Dual display of humidity and temperature
- Display hold function
- Multi-position probe
- Battery test function
- Automatic power shut-off after 2 minutes
Instrument Size
- Length: 190 mm (7.5 in.)
- Height: 26 mm (1 in.)
- Width: 63 mm (2.5 in.)
Weight
260 g (0.6 lb)
Connections
Powered by a 9-volt battery.
Ordering Information
- Temperature displayed in °C: Catalog number 08-06-02
- Temperature displayed in °F: Catalog number 08-06-01
Catalog excerpts

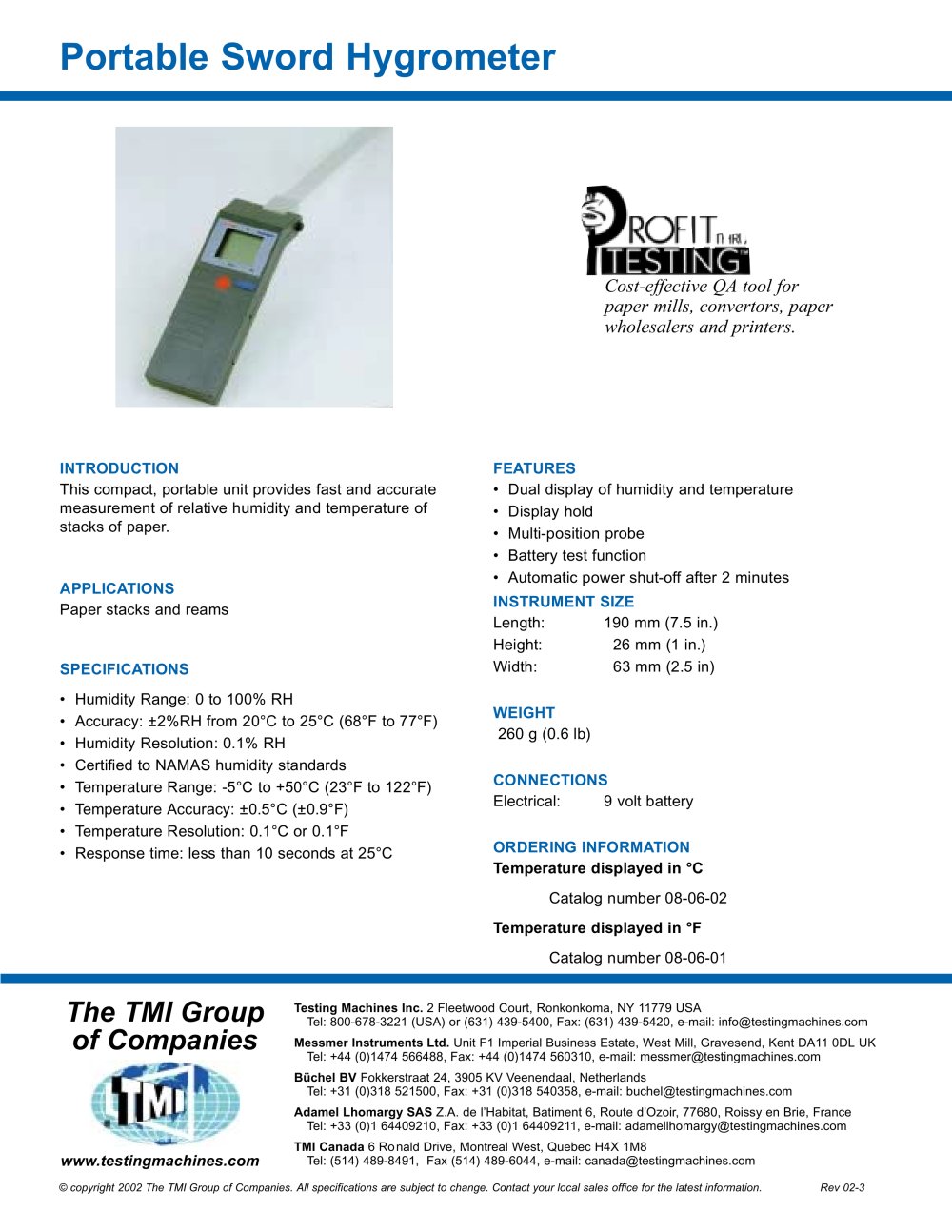

Portable Sword Hygrometer paper mills, convertors, paper This compact, portable unit provides fast and accurate measurement of relative humidity and temperature of Paper stacks and reams • Certified to NAMAS humidity standards • Response time: less than 10 seconds at 25°C • Dual display of humidity and temperature • Display hold • Multi-position probe • Battery test function • Automatic power shut-off after 2 minutes INSTRUMENT SIZE Electrical: 9 volt battery ORDERING INFORMATION Testing Machines Inc. 2 Fleetwood Court, Ronkonkoma, NY 11779 USA Messmer Instruments Ltd. Unit F1 Imperial Business Estate, West Mill, Gravesend, Kent DA11 0DL UK Biichel BV Fokkerstraat 24, 3905 KV Veenendaal, Netherlands Adamel Lhomargy SAS Z.A. de I'Habitat, Batiment 6, Route d'Ozoir, 77680, Roissy en Brie, France TMI Canada 6 Ronald Drive, Montreal West, Quebec H4X 1M8 © copyright 2002 The TMI Group of Companies. All specifications are subject to change. Contact your local sales office for the latest information.
