High Precision Electronic Densitmer EW-300SG

High Precision Electronic Densitmer EW-300SG

Product catalog summary

Overview
The Electronic Densimeter EW-300SG is designed for precise measurement of specific gravity for various materials, including rubber, plastic, metals, glass, ceramics, food, wood, and medical items. Its compact design facilitates easy and accurate measurements.

Features

Measures solid density with a resolution of 0.01g/cm³.
Quick measurement time of 10 seconds.
Ideal for production line inspections.

Specifications

Density resolution: 0.01g/cm³.
Scale capacity: 0.01~300g.
Conforms to Pycnometer and Hydrostatic Method.
Standards: JIS K6268A, JIS K7112, ASTM D297-93-16, ASTM D792-00.
Power source: AC115~240V.
Weight: 1.54 kg (3.4 lb).
Dimensions: 218 x 190 x 170 mm (8.5 x 7.4 x 6.9 in).

Applications
Suitable for measuring specific gravity of floating samples like urethane rubber, plastics, sponge, and wood in water.

Additional Features

Comparator Mode for result judgments.
PC connectivity via RS232C interface.
Use of ethanol as a liquid medium with Styrol Water Tank.
Measures change rate of density.

Optional Parts

Printer AD-8121B: Dot impact type.
Airtight windshield for wind effect mitigation.
ISO-related documents: Traceability, Calibration Certificate, Inspection Report.

Contact Information
Various global contacts are provided for Testing Machines Inc., Messmer Instruments, Büchel BV, Lako Tool and Manufacturing Inc., Lawson Hemphill, Adamel Lhomargy SARL, and TMI Canada.

Catalog excerpts

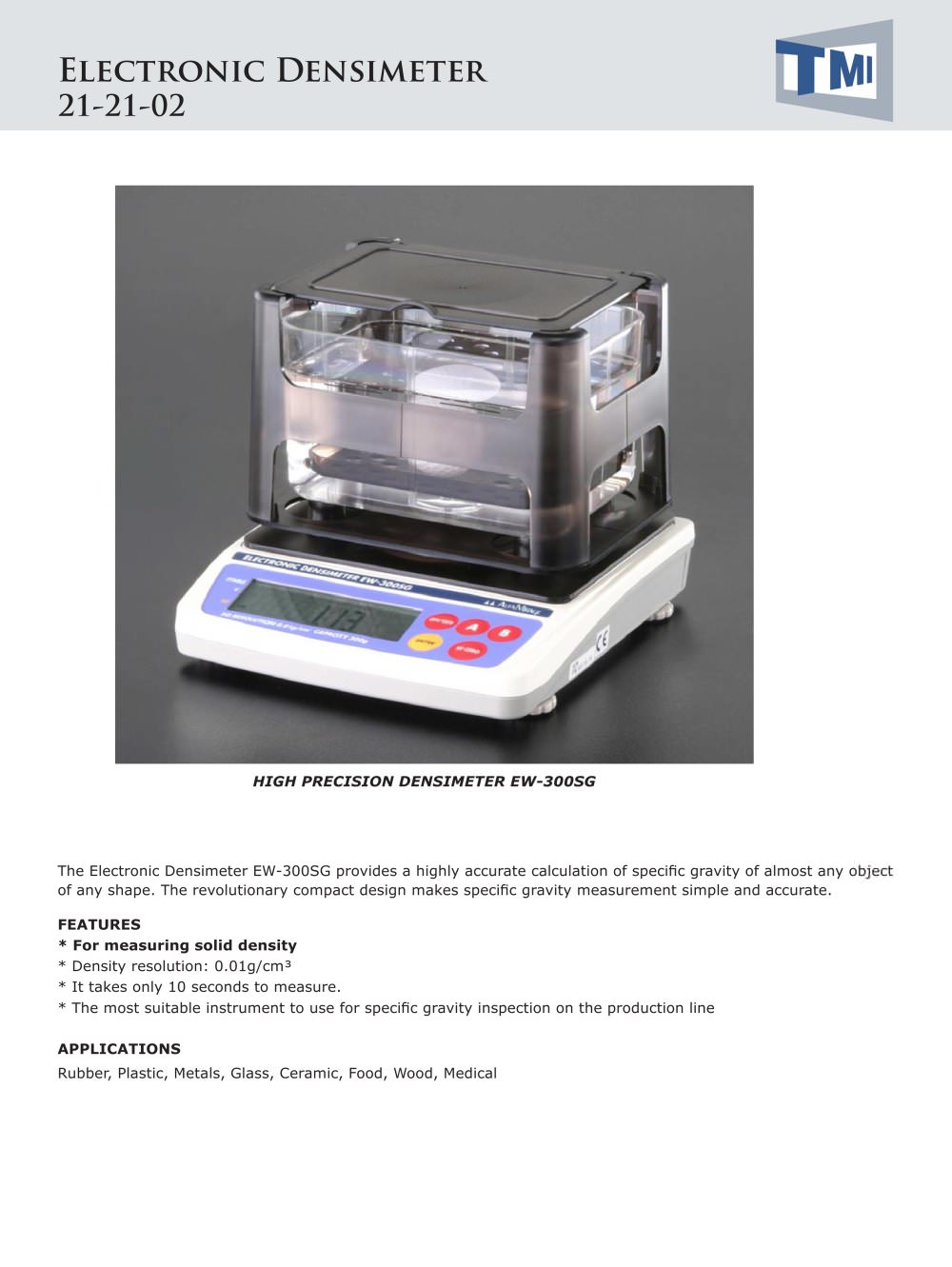

High Precision Electronic Densitmer EW-300SG-1

Electronic Densimeter 21-21-02 The Electronic Densimeter EW-300SG provides a highly accurate calculation of specific gravity of almost any object of any shape. The revolutionary compact design makes specific gravity measurement simple and accurate. FEATURES * For measuring solid density * Density resolution: 0.01g/cm³ * It takes only 10 seconds to measure. * The most suitable instrument to use for specific gravity inspection on the production line APPLICATIONS Rubber, Plastic, Metals, Glass, Ceramic, Food, Wood, Medical HIGH PRECISION DENSIMETER EW-300SG

Open the catalog to page 1

High Precision Electronic Densitmer EW-300SG-2

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 [email protected] Messmer Instruments Unit F1 Imperial Business Estate West Mill, Gravesend Kent DA11 0DL UK Tel:+44 (0) 1474 566488 Fax:+44 (0) 1474 560310 Büchel BV Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com...

Open the catalog to page 2
