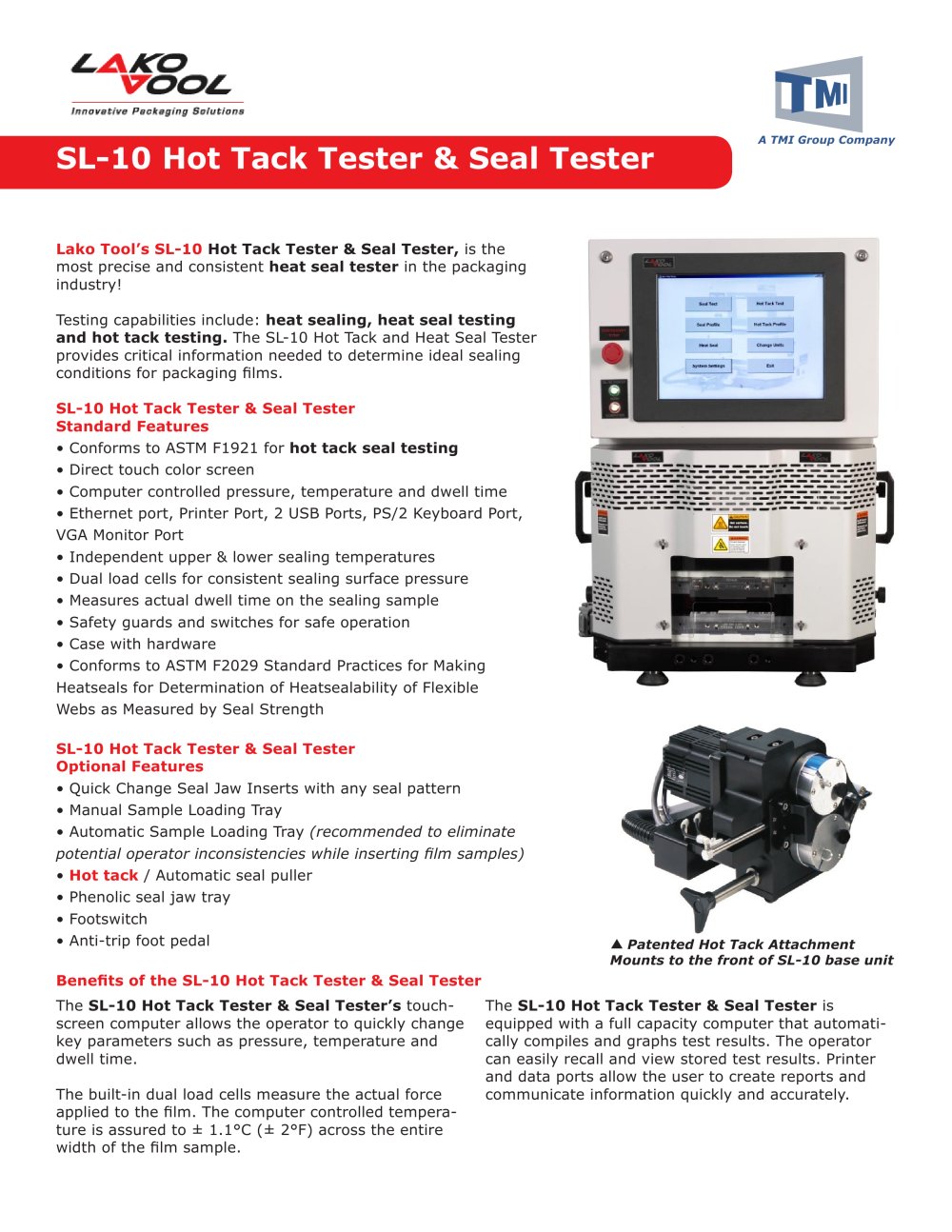

irtnevatfve Packaging Setutiana SL-10 Hot Tack Tester & Seal Tester Lako Tool's SL-10 Hot Tack Tester & Seal Tester, is the most precise and consistent heat seal tester in the packaging Testing capabilities include: heat sealing, heat seal testing and hot tack testing. The SL-10 Hot Tack and Heat Seal Tester provides critical information needed to determine ideal sealing conditions for packaging films. SL-10 Hot Tack Tester & Seal Tester Standard Features • Conforms to ASTM F1921 for hot tack seal testing • Direct touch color screen • Computer controlled pressure, temperature and dwell time • Ethernet port, Printer Port, 2 USB Ports, PS/2 Keyboard Port, • Independent upper & lower sealing temperatures • Dual load cells for consistent sealing surface pressure • Measures actual dwell time on the sealing sample • Safety guards and switches for safe operation • Case with hardware • Conforms to ASTM F2029 Standard Practices for Making Heatseals for Determination of Heatsealability of Flexible Webs as Measured by Seal Strength SL-10 Hot Tack Tester & Seal Tester Optional Features • Quick Change Seal Jaw Inserts with any seal pattern • Manual Sample Loading Tray • Automatic Sample Loading Tray (recommended to eliminate potential operator inconsistencies while inserting film samples) • Hot tack / Automatic seal puller • Phenolic seal jaw tray • Anti-trip foot pedal ▲ Patented Hot Tack Attachment Mounts to the front of SL-10 base unit Benefits of the SL-10 Hot Tack Tester & Seal Tester The SL-10 Hot Tack Tester & Seal Tester's touch- screen computer allows the operator to quickly change key parameters such as pressure, temperature and dwell time. The built-in dual load cells measure the actual force applied to the film. The computer controlled tempera- ture is assured to ± 1.1°C (± 2°F) across the entire width of the film sample. The SL-10 Hot Tack Tester & Seal Tester is equipped with a full capacity computer that automati- cally compiles and graphs test results. The operator can easily recall and view stored test results. Printer and data ports allow the user to create reports and communicate information quickly and accurately.

Seal Tester Tech Sheet Innovative Packaging Sofutiona Change Units System Settings A Direct Touch Color Screen The direct-touch color screen allows the user to quickly change the test parameters (pressure, tem- perature and dwell time), and will automatically graph test results. Test interfaces include: Heat Seal, Seal Test, Hot Tack, Seal Test Profile, and Hot Tack Profile. ▲ Automatic Sample Loading Tray The automatic sample loading tray assures accurate test results by eliminating any chance of user inconsistencies in testing procedures. The automatic tray inserts the sample without variation...

SL-10 Hot Tack Tester and Seal Tester Excel Worksheets Excel Export When used with Microsoft Excel® the SL-10’s program can export test results and parameters to a spreadsheet automatically. This spreadsheet provides a graphical representation of the data, individual test results, averages, and calculates standard deviation for each test group. Available exporting scenarios include: Individual Overlay, Profile Overlay, Temperature Group Export, and Profile Export. Forc e vs Dis ta nc e 250 Tes t 1 Tes t 2 200 Force (g) Tes t 3 Tes t 4 150 Tes t 5 Tes t 6 Tes t 7 100 Tes t 8 Tes t 9 50 Tes t 10...

SL-10 Hot Tack Tester & Heat Sealer Performance Data tnrtWBZtvE Packaging /i < > It/1. rcr;r & Sealing Temperature Measuring Accuracy Hot Tack Peel Load Cell Seal Load Cell Sealing Pressure (actual pressure applied per unit of film) Sealing Dwell Time Control Accuracy Seal Surface Flat,Vertical, Horizontal,Custom or Standard Geometry *AII jaws designed for quick & easy changeover ▲ SL-10 shown with Hot Tack Fixture Machine Requirements Physical Specifications Test Methods for Hot Seal Strength Hot Tack of Thermoplastic Polymers and Blends Comprising the Sealing Surfaces of Flexible Webs Standard...
