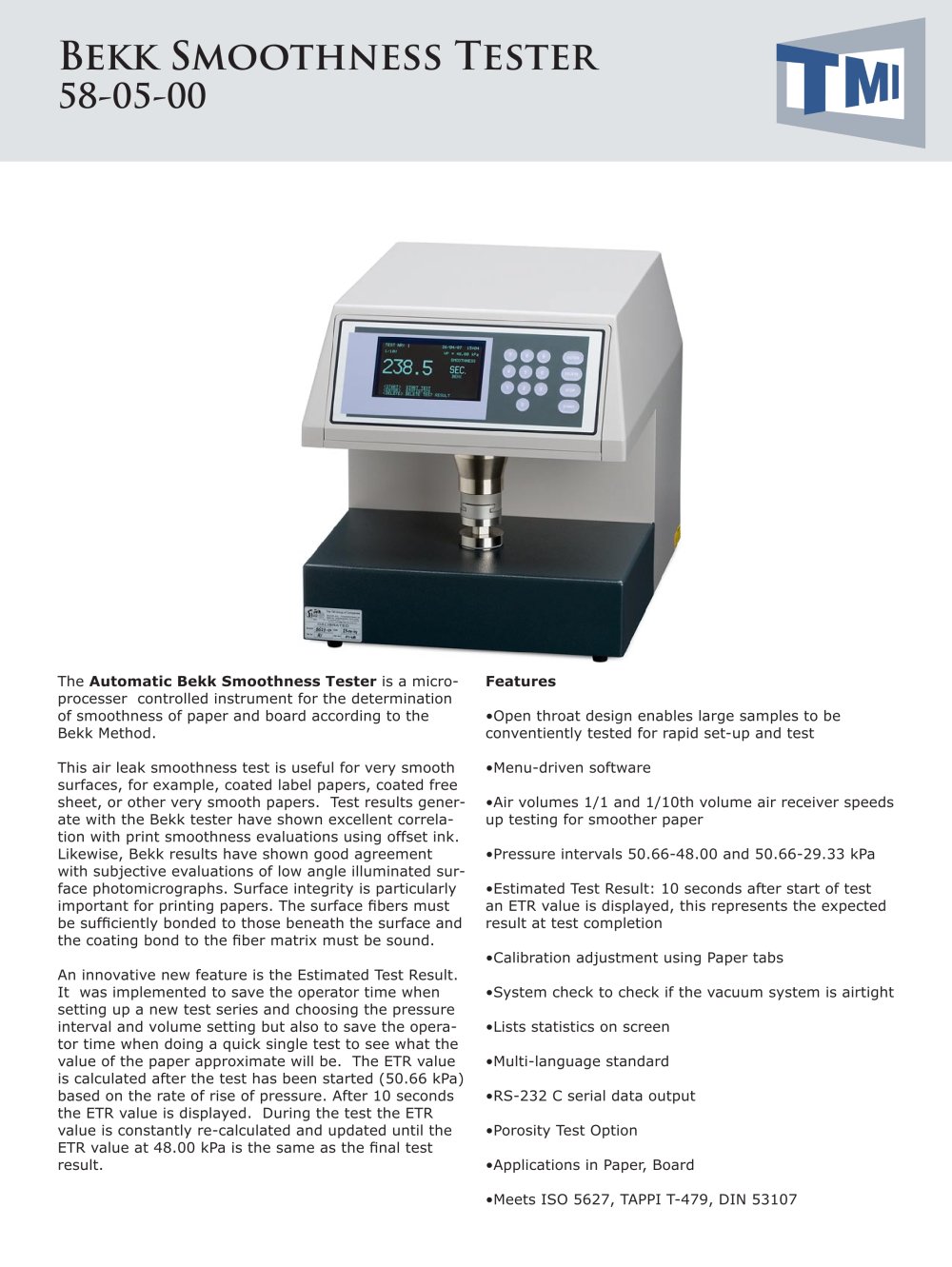

Bekk Smoothness Tester 58-05-00 The Automatic Bekk Smoothness Tester is a microprocesser controlled instrument for the determination of smoothness of paper and board according to the Bekk Method. This air leak smoothness test is useful for very smooth surfaces, for example, coated label papers, coated free sheet, or other very smooth papers. Test results generate with the Bekk tester have shown excellent correlation with print smoothness evaluations using offset ink. Likewise, Bekk results have shown good agreement with subjective evaluations of low angle illuminated surface photomicrographs. Surface integrity is particularly important for printing papers. The surface fibers must be sufficiently bonded to those beneath the surface and the coating bond to the fiber matrix must be sound. An innovative new feature is the Estimated Test Result. It was implemented to save the operator time when setting up a new test series and choosing the pressure interval and volume setting but also to save the operator time when doing a quick single test to see what the value of the paper approximate will be. The ETR value is calculated after the test has been started (50.66 kPa) based on the rate of rise of pressure. After 10 seconds the ETR value is displayed. During the test the ETR value is constantly re-calculated and updated until the ETR value at 48.00 kPa is the same as the final test result. Features •Open throat design enables large samples to be conventiently tested for rapid set-up and test •Menu-driven software •Air volumes 1/1 and 1/10th volume air receiver speeds up testing for smoother paper •Pressure intervals 50.66-48.00 and 50.66-29.33 kPa •Estimated Test Result: 10 seconds after start of test an ETR value is displayed, this represents the expected result at test completion •Calibration adjustment using Paper tabs •System check to check if the vacuum system is airtight •Lists statistics on screen •Multi-language standard •RS-232 C serial data output •Porosity Test Option •Applications in Paper, Board •Meets ISO 5627, TAPPI T-479, DIN 53107

Open the catalog to page 1

Main Headquarters Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Messmer Instruments Unit F1 Imperial Business Estate West Mill, Gravesend Kent DA11 0DL UK Tel:+44 (0) 1474 566488 Fax:+44 (0) 1474 560310 Büchel BV Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396...
