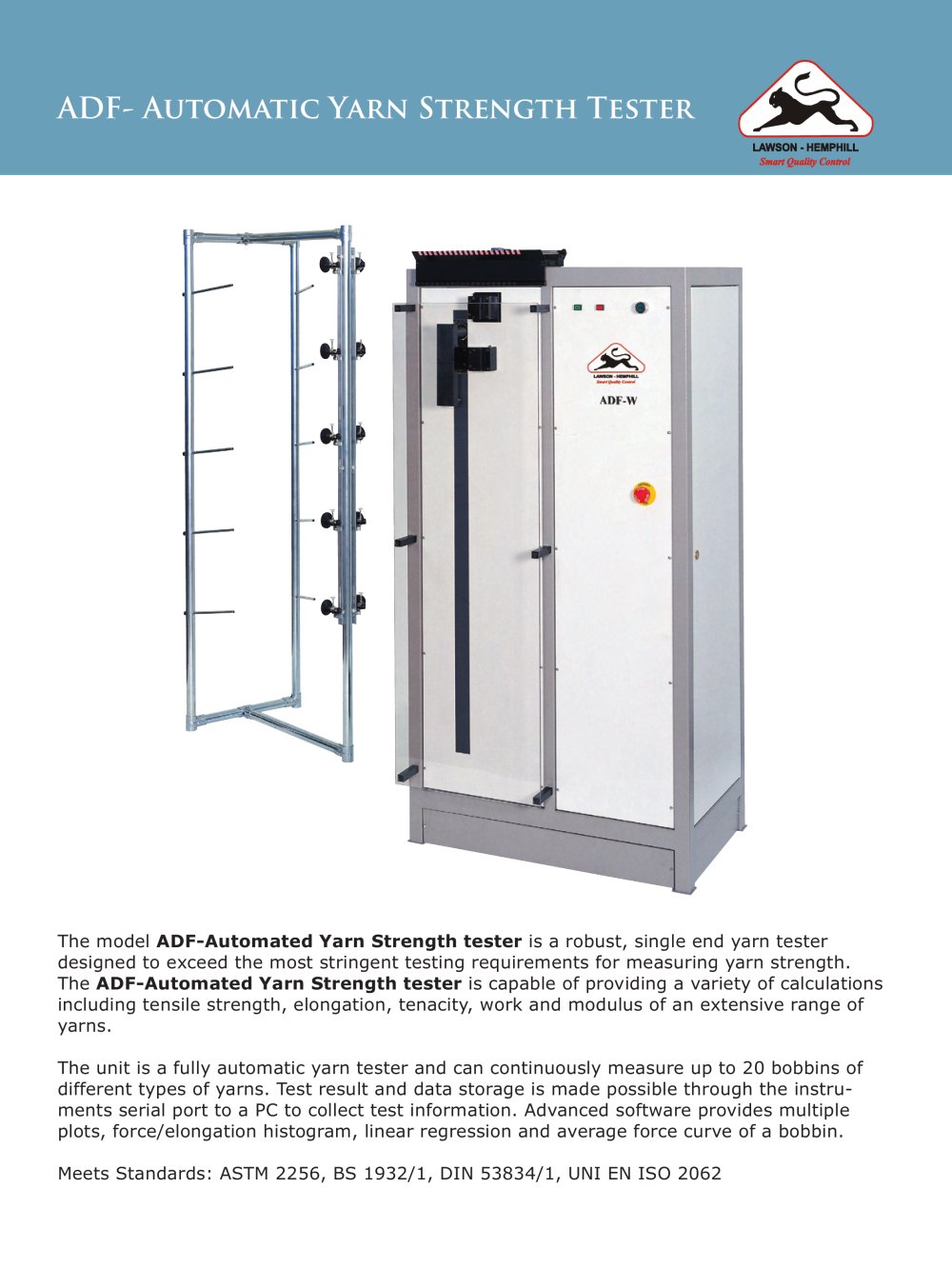

ADF- Automatic Yarn Strength Tester The model ADF-Automated Yarn Strength tester is a robust, single end yarn tester designed to exceed the most stringent testing requirements for measuring yarn strength. The ADF-Automated Yarn Strength tester is capable of providing a variety of calculations including tensile strength, elongation, tenacity, work and modulus of an extensive range of yarns. The unit is a fully automatic yarn tester and can continuously measure up to 20 bobbins of different types of yarns. Test result and data storage is made possible through the instruments serial port to a PC to collect test information. Advanced software provides multiple plots, force/elongation histogram, linear regression and average force curve of a bobbin. Meets Standards: ASTM 2256, BS 1932/1, DIN 53834/1, UNI EN ISO 2062

Open the catalog to page 1

Automatic Yarn Strength Tester During a test, the mobile clamp quickly positions the yarn in place for a measurement. The sample is then pulled to failure and the wasted yarn is vacuumed away. The test results and data are automatically stored. The mobile clamp then returns to the staring position to begin a new test. This operation automatically continues for a pre-set number of tests or until the entire bobbin is tested. £ Linear diagram with 100 samples tested £ Report showing available ADF test results and statistics for 20 tests £ Data and graphics summary chart TEST RESULTS

Open the catalog to page 2

Automatic Yarn Strength Tester SOFTWARE £ Trend analysis curve for force, elongation and tenacity Set up screen allows the selection of critical data collection parameters before test sequence £ Multiple curve plot of force/elongation measurement SOFTWARE SPECIFICATIONS Compatibility Windows XP and Vista Automated Testing Features Automatically test up to 20 different bobbins with different sample settings (Count, Speed, Pre-tension, etc.) Print Features Programmable scheduling of print options to include changeable graph font and colors, include company letterhead and logo, automatic or...

Open the catalog to page 3

Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Büchel BV t/a Messmer Büchel Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1...
