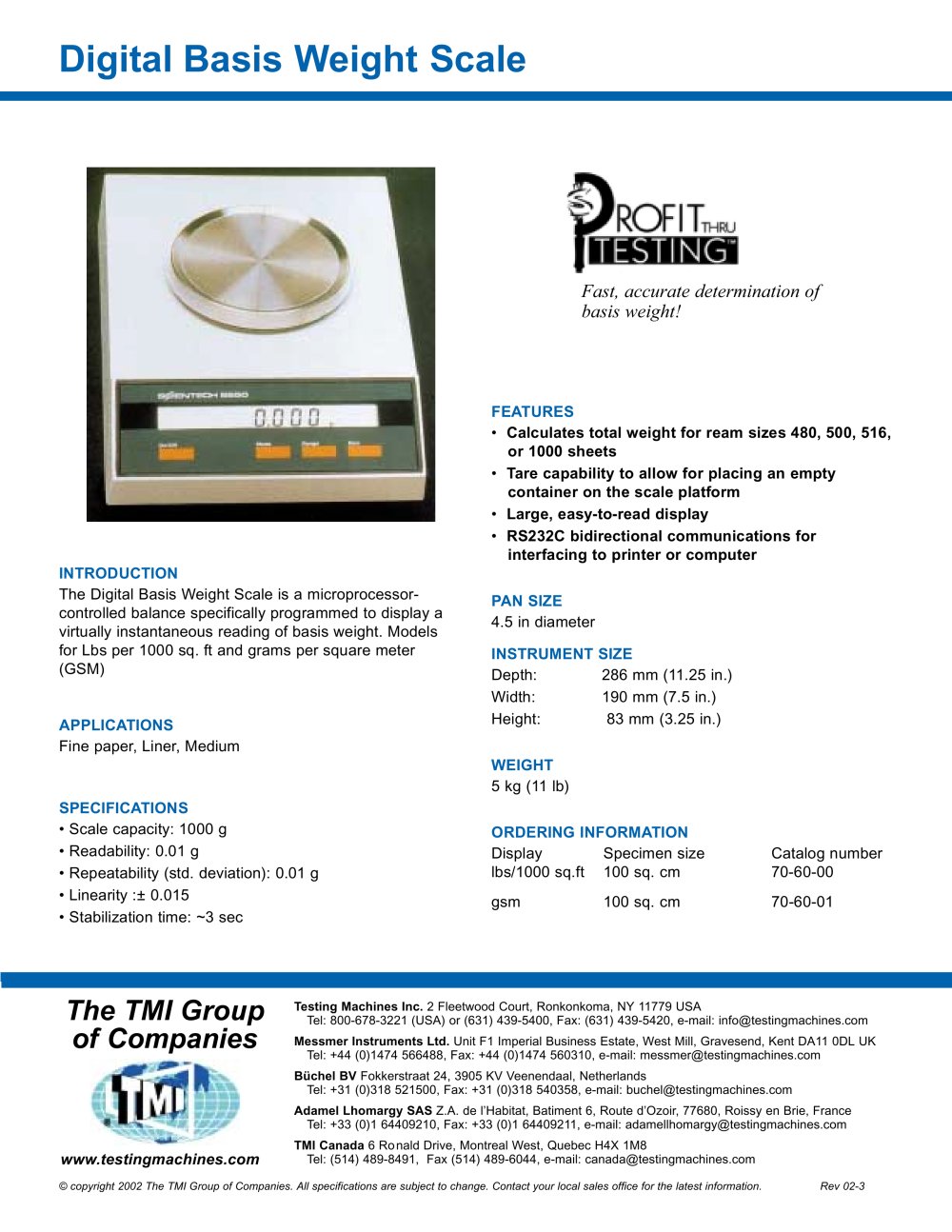

Testing Machines Inc. 2 Fleetwood Court, Ronkonkoma, NY 11779 USA Tel: 800-678-3221 (USA) or (631) 439-5400, Fax: (631) 439-5420, e-mail: [email protected] Messmer Instruments Ltd. Unit F1 Imperial Business Estate, West Mill, Gravesend, Kent DA11 0DL UK Tel: +44 (0)1474 566488, Fax: +44 (0)1474 560310, e-mail: [email protected] Büchel BV Fokkerstraat 24, 3905 KV Veenendaal, Netherlands Tel: +31 (0)318 521500, Fax: +31 (0)318 540358, e-mail: [email protected] Adamel Lhomargy SAS Z.A. de l’Habitat, Batiment 6, Route d’Ozoir, 77680, Roissy en Brie, France Tel: +33 (0)1 64409210, Fax: +33 (0)1 64409211, e-mail: [email protected] TMI Canada 6 Ronald Drive, Montreal West, Quebec H4X 1M8 Tel: (514) 489-8491, Fax (514) 489-6044, e-mail: [email protected] © copyright 2002 The TMI Group of Companies. All specifications are subject to change. Contact your local sales office for the latest information. Rev 02-3 INTRODUCTION The Digital Basis Weight Scale is a microprocessorcontrolled balance specifically programmed to display a virtually instantaneous reading of basis weight. Models for Lbs per 1000 sq. ft and grams per square meter (GSM) APPLICATIONS Fine paper, Liner, Medium SPECIFICATIONS • Scale capacity: 1000 g • Readability: 0.01 g • Repeatability (std. deviation): 0.01 g • Linearity :± 0.015 • Stabilization time: ~3 sec FEATURES • Calculates total weight for ream sizes 480, 500, 516, or 1000 sheets • Tare capability to allow for placing an empty container on the scale platform • Large, easy-to-read display • RS232C bidirectional communications for interfacing to printer or computer PAN SIZE 4.5 in diameter INSTRUMENT SIZE Depth: 286 mm (11.25 in.) Width: 190 mm (7.5 in.) Height: 83 mm (3.25 in.) WEIGHT 5 kg (11 lb) ORDERING INFORMATION Display Specimen size Catalog number lbs/1000 sq.ft 100 sq. cm 70-60-00 gsm 100 sq. cm 70-60-01 Digital Basis Weight Scale
