58-06 Parker Print Surf (PPS)
1Pages

{{requestButtons}}

Catalog excerpts

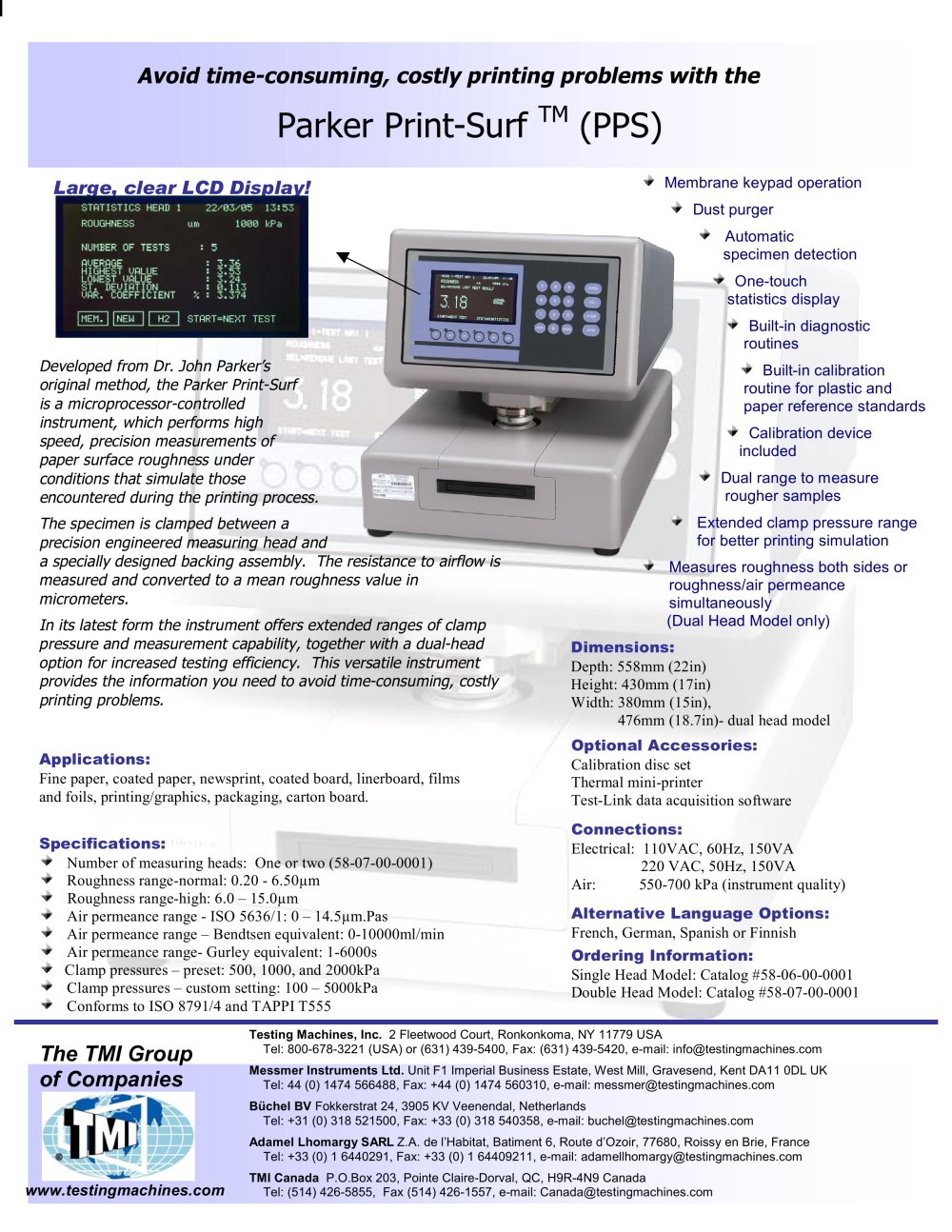

58-06 Parker Print Surf (PPS) - 1

The TMI Group of Companies www.testingmachines.com Parker Print-Surf TM (PPS) Large, clear LCD Display! Alternative Language Options: French, German, Spanish or Finnish Ordering Information: Single Head Model: Catalog #58-06-00-0001 Double Head Model: Catalog #58-07-00-0001 Avoid time-consuming, costly printing problems with the Developed from Dr. John Parker’s original method, the Parker Print-Surf is a microprocessor-controlled instrument, which performs high speed, precision measurements of paper surface roughness under conditions that simulate those encountered during the printing process. The specimen is clamped between a precision engineered measuring head and a specially designed backing assembly. The resistance to airflow is measured and converted to a mean roughness value in micrometers. In its latest form the instrument offers extended ranges of clamp pressure and measurement capability, together with a dual-head option for increased testing efficiency. This versatile instrument provides the information you need to avoid time-consuming, costly printing problems. Specifications: Number of measuring heads: One or two (58-07-00-0001) Roughness range-normal: 0.20 - 6.50ìm Roughness range-high: 6.0 – 15.0ìm Air permeance range - ISO 5636/1: 0 – 14.5ìm.Pas Air permeance range – Bendtsen equivalent: 0-10000ml/min Air permeance range- Gurley equivalent: 1-6000s Clamp pressures – preset: 500, 1000, and 2000kPa Clamp pressures – custom setting: 100 – 5000kPa Conforms to ISO 8791/4 and TAPPI T555 Dimensions: Depth: 558mm (22in) Height: 430mm (17in) Width: 380mm (15in), 476mm (18.7in)- dual head model Membrane keypad operation Dust purger Automatic specimen detection One-touch statistics display Built-in diagnostic routines Built-in calibration routine for plastic and paper reference standards Calibration device included Dual range to measure rougher samples Extended clamp pressure range for better printing simulation Measures roughness both sides or roughness/air permeance simultaneously (Dual Head Model only) Applications: Fine paper, coated paper, newsprint, coated board, linerboard, films and foils, printing/graphics, packaging, carton board. Connections: Electrical: 110VAC, 60Hz, 150VA 220 VAC, 50Hz, 150VA Air: 550-700 kPa (instrument quality) Optional Accessories: Calibration disc set Thermal mini-printer Test-Link data acquisition software Testing Machines, Inc. 2 Fleetwood Court, Ronkonkoma, NY 11779 USA Tel: 800-678-3221 (USA) or (631) 439-5400, Fax: (631) 439-5420, e-mail: info@testingmachines.com Messmer Instruments Ltd. Unit F1 Imperial Business Estate, West Mill, Gravesend, Kent DA11 0DL UK Tel: 44 (0) 1474 566488, Fax: +44 (0) 1474 560310, e-mail: messmer@testingmachines.com Büchel BV Fokkerstrat 24, 3905 KV Veenendal, Netherlands Tel: +31 (0) 318 521500, Fax: +33 (0) 318 540358, e-mail: buchel@testingmachines.com Adamel Lhomargy SARL Z.A. de l’Habitat, Batiment 6, Route d’Ozoir, 77680, Roissy en Brie, France Tel: +33 (0) 1 6440291, Fax: +33 (0) 1 64409211, e-mail: adamellhomargy@testingmachines.com TMI Canada P.O.Box 203, Pointe Claire-Dorval, QC, H9R-4N9 Canada Tel: (514) 426-5855, Fax (514) 426-1557, e-mail: Canada@testingmachines.com

Open the catalog to page 1
