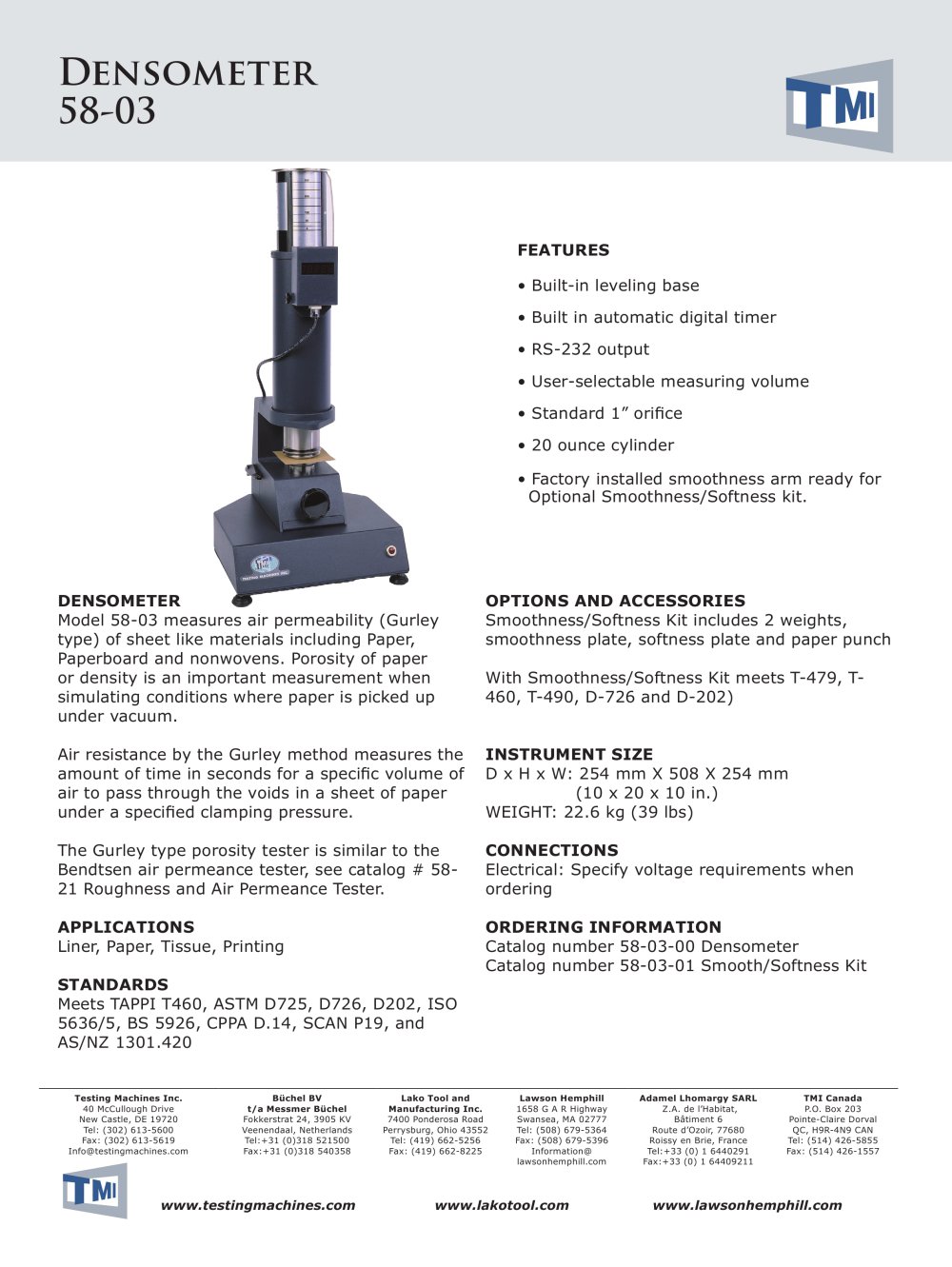

FEATURES • Built-in leveling base • Built in automatic digital timer • RS-232 output • User-selectable measuring volume • Standard 1” orifice • 20 ounce cylinder • Factory installed smoothness arm ready for Optional Smoothness/Softness kit. DENSOMETER Model 58-03 measures air permeability (Gurley type) of sheet like materials including Paper, Paperboard and nonwovens. Porosity of paper or density is an important measurement when simulating conditions where paper is picked up under vacuum. OPTIONS AND ACCESSORIES Smoothness/Softness Kit includes 2 weights, smoothness plate, softness plate and paper punch Air resistance by the Gurley method measures the amount of time in seconds for a specific volume of air to pass through the voids in a sheet of paper under a specified clamping pressure. INSTRUMENT SIZE D x H x W: 254 mm X 508 X 254 mm (10 x 20 x 10 in.) WEIGHT: 22.6 kg (39 lbs) The Gurley type porosity tester is similar to the Bendtsen air permeance tester, see catalog # 5821 Roughness and Air Permeance Tester. CONNECTIONS Electrical: Specify voltage requirements when ordering APPLICATIONS Liner, Paper, Tissue, Printing ORDERING INFORMATION Catalog number 58-03-00 Densometer Catalog number 58-03-01 Smooth/Softness Kit STANDARDS Meets TAPPI T460, ASTM D725, D726, D202, ISO 5636/5, BS 5926, CPPA D.14, SCAN P19, and AS/NZ 1301.420 Testing Machines Inc. 40 McCullough Drive New Castle, DE 19720 Tel: (302) 613-5600 Fax: (302) 613-5619 Info@testingmachines.com Büchel BV t/a Messmer Büchel Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+31 (0)318 521500 Fax:+31 (0)318 540358 With Smoothness/Softness Kit meets T-479, T460, T-490, D-726 and D-202) Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557
