53-45 Portable Moisture Meter DC-2000-BP
1Pages

{{requestButtons}}

Catalog excerpts

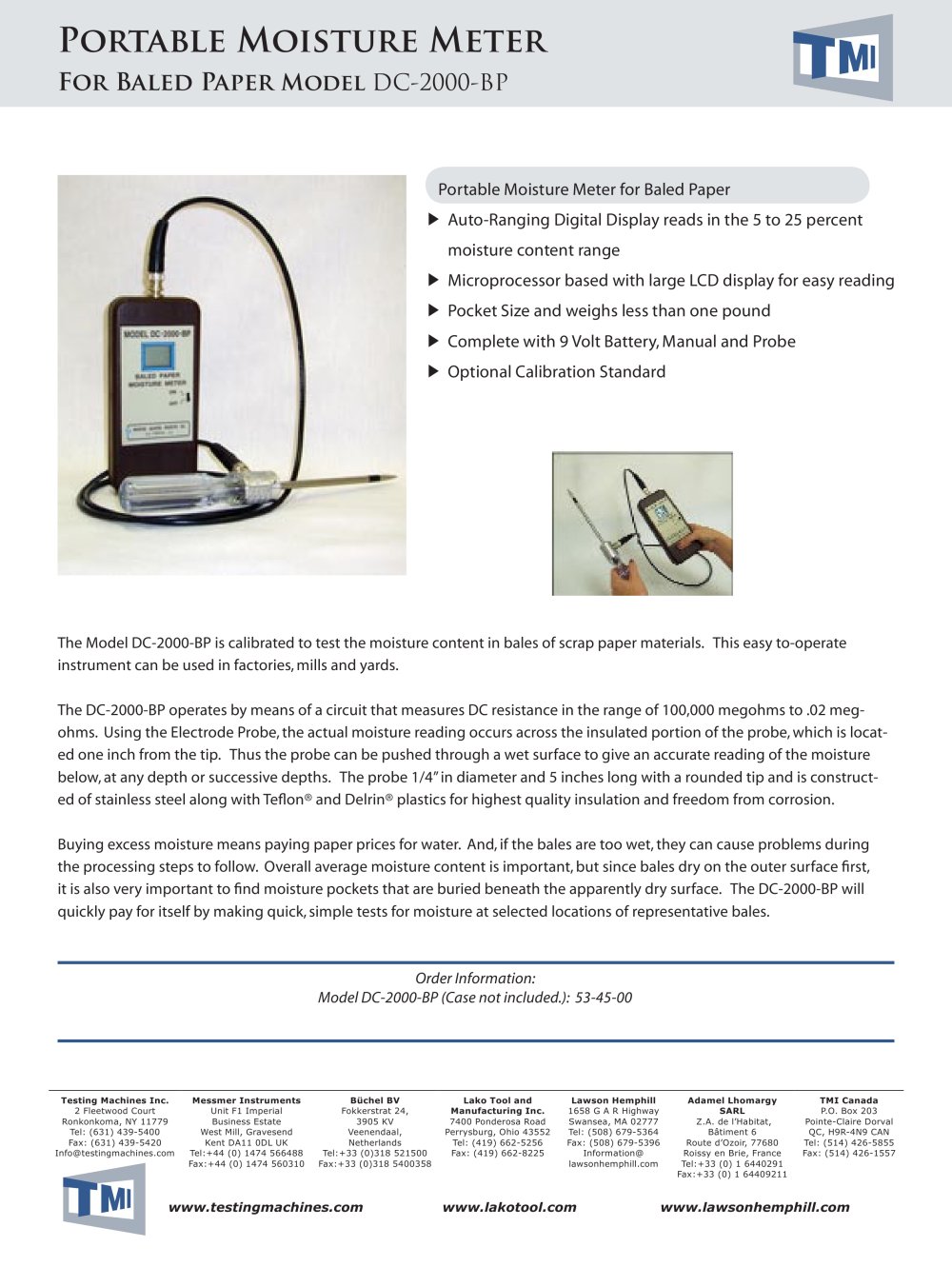

53-45 Portable Moisture Meter DC-2000-BP - 1

Portable Moisture Meter For Baled Paper Model DC-2000-BP Portable Moisture Meter for Baled Paper Auto-Ranging Digital Display reads in the 5 to 25 percent moisture content range Microprocessor based with large LCD display for easy reading Pocket Size and weighs less than one pound Complete with 9 Volt Battery, Manual and Probe Optional Calibration Standard The Model DC-2000-BP is calibrated to test the moisture content in bales of scrap paper materials. This easy to-operate instrument can be used in factories, mills and yards. The DC-2000-BP operates by means of a circuit that measures DC resistance in the range of 100,000 megohms to .02 megohms. Using the Electrode Probe, the actual moisture reading occurs across the insulated portion of the probe, which is located one inch from the tip. Thus the probe can be pushed through a wet surface to give an accurate reading of the moisture below, at any depth or successive depths. The probe 1/4” in diameter and 5 inches long with a rounded tip and is constructed of stainless steel along with Teflon® and Delrin® plastics for highest quality insulation and freedom from corrosion. Buying excess moisture means paying paper prices for water. And, if the bales are too wet, they can cause problems during the processing steps to follow. Overall average moisture content is important, but since bales dry on the outer surface first, it is also very important to find moisture pockets that are buried beneath the apparently dry surface. The DC-2000-BP will quickly pay for itself by making quick, simple tests for moisture at selected locations of representative bales. Order Information: Model DC-2000-BP (Case not included.): 53-45-00 Testing Machines Inc. 2 Fleetwood Court Ronkonkoma, NY 11779 Tel: (631) 439-5400 Fax: (631) 439-5420 Info@testingmachines.com Messmer Instruments Unit F1 Imperial Business Estate West Mill, Gravesend Kent DA11 0DL UK Tel:+44 (0) 1474 566488 Fax:+44 (0) 1474 560310 Büchel BV Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lako Tool and Manufacturing Inc. 7400 Ponderosa Road Perrysburg, Ohio 43552 Tel: (419) 662-5256 Fax: (419) 662-8225 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557 www.testingmachines.com www.lakotool.com www.lawsonhemphill.com

Open the catalog to page 1
