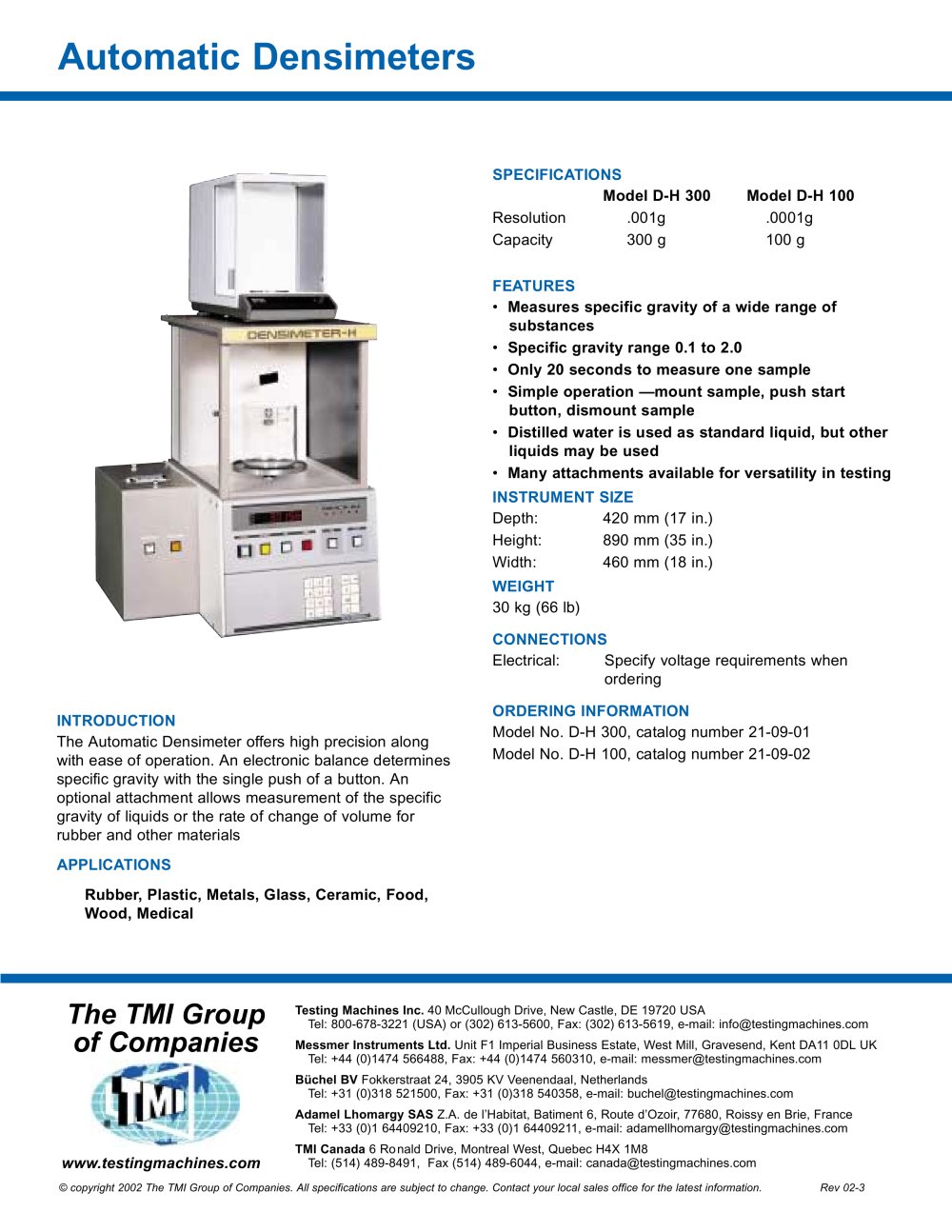

© copyright 2002 The TMI Group of Companies. All specifications are subject to change. Contact your local sales office for the latest information. Rev 02-3 Automatic Densimeters INTRODUCTION The Automatic Densimeter offers high precision along with ease of operation. An electronic balance determines specific gravity with the single push of a button. An optional attachment allows measurement of the specific gravity of liquids or the rate of change of volume for rubber and other materials APPLICATIONS Rubber, Plastic, Metals, Glass, Ceramic, Food, Wood, Medical SPECIFICATIONS Model D-H 300 Model D-H 100 Resolution .001g .0001g Capacity 300 g 100 g FEATURES • Measures specific gravity of a wide range of substances • Specific gravity range 0.1 to 2.0 • Only 20 seconds to measure one sample • Simple operation —mount sample, push start button, dismount sample • Distilled water is used as standard liquid, but other liquids may be used • Many attachments available for versatility in testing INSTRUMENT SIZE Depth: 420 mm (17 in.) Height: 890 mm (35 in.) Width: 460 mm (18 in.) WEIGHT 30 kg (66 lb) CONNECTIONS Electrical: Specify voltage requirements when ordering ORDERING INFORMATION Model No. D-H 300, catalog number 21-09-01 Model No. D-H 100, catalog number 21-09-02 Testing Machines Inc. 40 McCullough Drive, New Castle, DE 19720 USA Tel: 800-678-3221 (USA) or (302) 613-5600, Fax: (302) 613-5619, e-mail: [email protected] Messmer Instruments Ltd. Unit F1 Imperial Business Estate, West Mill, Gravesend, Kent DA11 0DL UK Tel: +44 (0)1474 566488, Fax: +44 (0)1474 560310, e-mail: [email protected] Büchel BV Fokkerstraat 24, 3905 KV Veenendaal, Netherlands Tel: +31 (0)318 521500, Fax: +31 (0)318 540358, e-mail: [email protected] Adamel Lhomargy SAS Z.A. de l’Habitat, Batiment 6, Route d’Ozoir, 77680, Roissy en Brie, France Tel: +33 (0)1 64409210, Fax: +33 (0)1 64409211, e-mail: [email protected] TMI Canada 6 Ronald Drive, Montreal West, Quebec H4X 1M8 Tel: (514) 489-8491, Fax (514) 489-6044, e-mail: [email protected]
