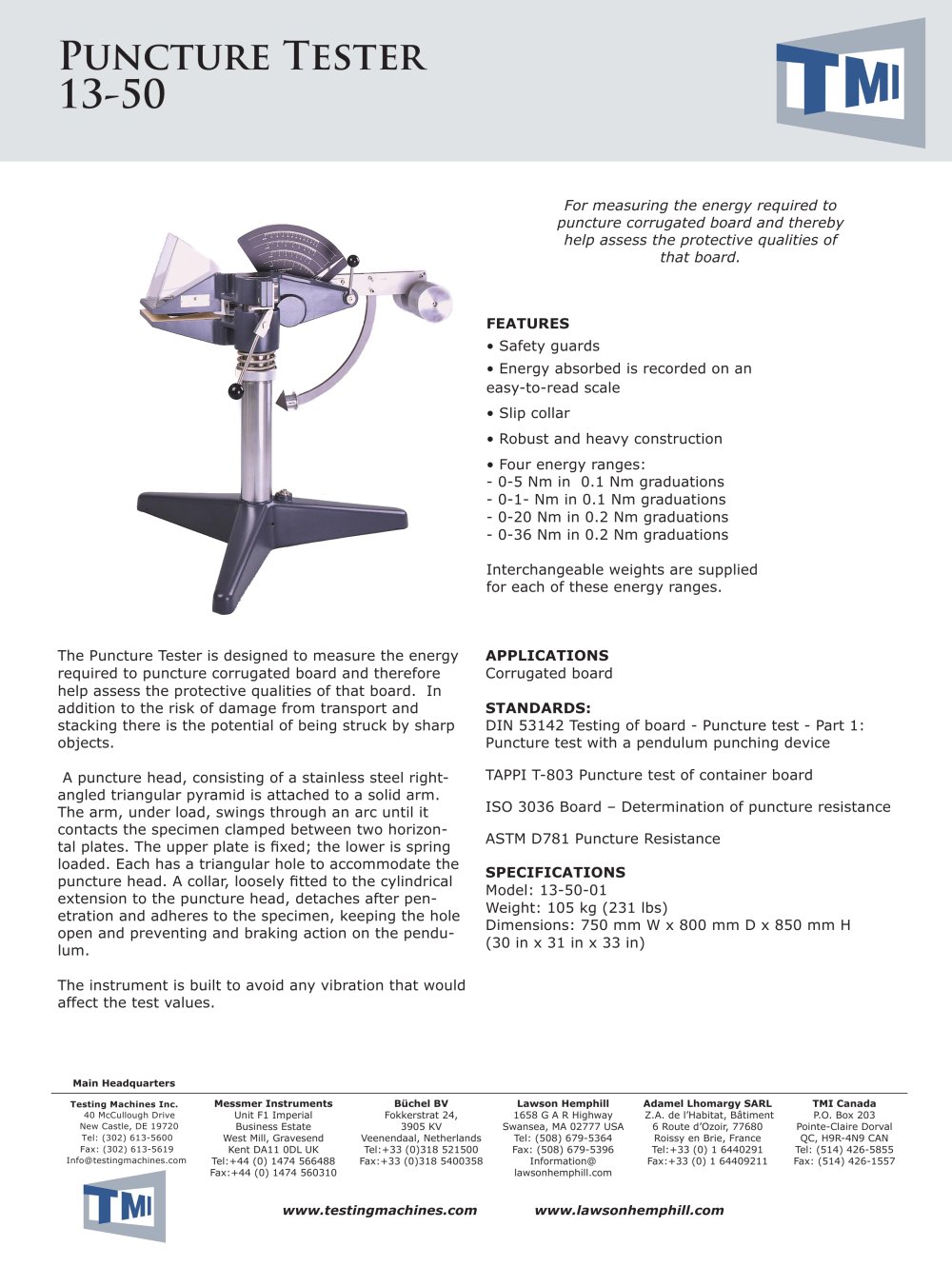

Main Headquarters Messmer Instruments Unit F1 Imperial Business Estate West Mill, Gravesend Kent DA11 0DL UK Tel:+44 (0) 1474 566488 Fax:+44 (0) 1474 560310 Büchel BV Fokkerstrat 24, 3905 KV Veenendaal, Netherlands Tel:+33 (0)318 521500 Fax:+33 (0)318 5400358 Lawson Hemphill 1658 G A R Highway Swansea, MA 02777 USA Tel: (508) 679-5364 Fax: (508) 679-5396 Information@ lawsonhemphill.com Adamel Lhomargy SARL Z.A. de l’Habitat, Bâtiment 6 Route d’Ozoir, 77680 Roissy en Brie, France Tel:+33 (0) 1 6440291 Fax:+33 (0) 1 64409211 TMI Canada P.O. Box 203 Pointe-Claire Dorval QC, H9R-4N9 CAN Tel: (514) 426-5855 Fax: (514) 426-1557 www.testingmachines.com www.lawsonhemphill.com Puncture Tester 13-50 The Puncture Tester is designed to measure the energy required to puncture corrugated board and therefore help assess the protective qualities of that board. In addition to the risk of damage from transport and stacking there is the potential of being struck by sharp objects. A puncture head, consisting of a stainless steel right-angled triangular pyramid is attached to a solid arm. The arm, under load, swings through an arc until it contacts the specimen clamped between two horizontal plates. The upper plate is fixed; the lower is spring loaded. Each has a triangular hole to accommodate the puncture head. A collar, loosely fitted to the cylindrical extension to the puncture head, detaches after penetration and adheres to the specimen, keeping the hole open and preventing and braking action on the pendulum. The instrument is built to avoid any vibration that would affect the test values. APPLICATIONS Corrugated board STANDARDS: DIN 53142 Testing of board - Puncture test - Part 1: Puncture test with a pendulum punching device TAPPI T-803 Puncture test of container board ISO 3036 Board – Determination of puncture resistance ASTM D781 Puncture Resistance SPECIFICATIONS Model: 13-50-01 Weight: 105 kg (231 lbs) Dimensions: 750 mm W x 800 mm D x 850 mm H (30 in x 31 in x 33 in) FEATURES • Safety guards • Energy absorbed is recorded on an easy-to-read scale • Slip collar • Robust and heavy construction • Four energy ranges: - 0-5 Nm in 0.1 Nm graduations - 0-1- Nm in 0.1 Nm graduations - 0-20 Nm in 0.2 Nm graduations - 0-36 Nm in 0.2 Nm graduations Interchangeable weights are supplied for each of these energy ranges. For measuring the energy required to puncture corrugated board and thereby help assess the protective qualities of that board. Testing Machines Inc. 40 McCullough Drive New Castle, DE 19720 Tel: (302) 613-5600 Fax: (302) 613-5619 Info@testingmachines.com
