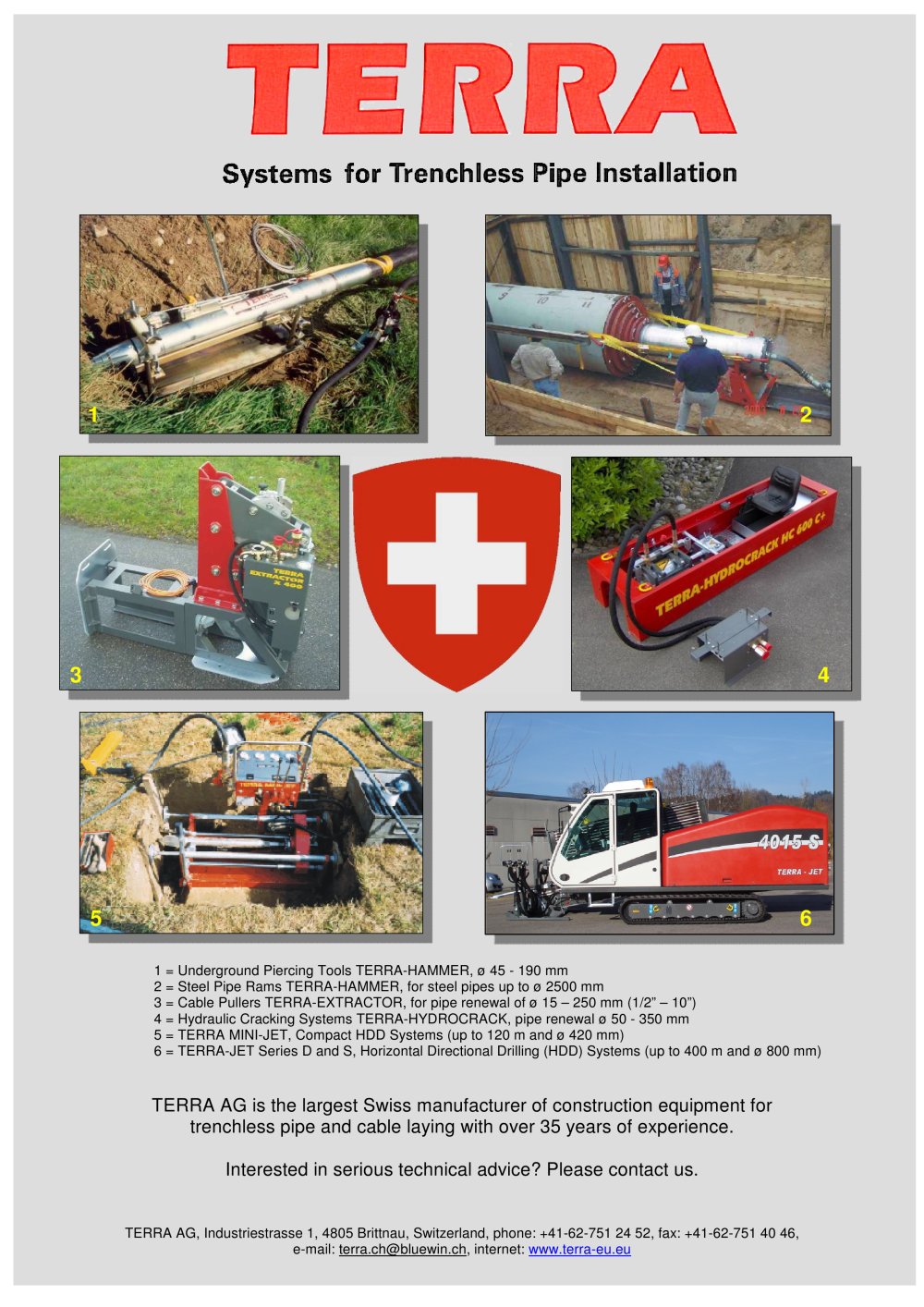

1 2 3 4 5 6 > 1 = Underground Piercing Tools TERRA-HAMMER, 45 - 190 mm 2 = Steel Pipe Rams TERRA-HAMMER, for steel pipes up to 2500 mm 3 = Cable Pullers TERRA-EXTRACTOR, for pipe renewal of 踸 15 250 mm (1/2֔ 10֔) 4 = Hydraulic Cracking Systems TERRA-HYDROCRACK, pipe renewal 50 - 350 mm 5 = TERRA MINI-JET, Compact HDD Systems (up to 120 m and 420 mm) 6 = TERRA-JET Series D and S, Horizontal Directional Drilling (HDD) Systems (up to 400 m and 踸 800 mm) TERRA AG is the largest Swiss manufacturer of construction equipment for trenchless pipe and cable laying with over 35 years of experience. Interested in serious technical advice? Please contact us. TERRA AG, Industriestrasse 1, 4805 Brittnau, Switzerland, phone: +41-62-751 24 52, fax: +41-62-751 40 46, e-mail: terra.ch@bluewin.ch , internet: www.terra-eu.eu size="-2">

With production facilities in Switzerland and own sales outlets in Germany and in various countries worldwide, TERRA prides itself for being a leader in production of construction equipment for trenchless pipe and cable laying. Having maintained our position in the forefront of technical developments for more than 35 years, TERRA offers the following major product lines. TERRA-HAMMER The TERRA-HAMMER in it's standard design can be used in 2 different applications: 1. TERRA-HAMMER Underground piercing tool (soil displacement hammer, "mole") 2. TERRA-RAM Primary force to ram steel pipes The...

Rod burster TERRA-HYDROCRACK (Pipe Renewal System) Pipe renewal system to renew gas pipes, water pipes or sewer lines. It cracks or cuts PE pipes, steel pipes, cast iron pipes or even ductile cast iron pipes from OD 50 mm up to 350 mm. New HDPE pipes up to OD 355 mm may be pulled in. The thrust and pullback force is 600 kN (60 tons) at a hydraulic pressure of 235 bar. The TERRA-HYDROCRACK is offered in different models, as Comfort Version HC 600 C+ (with operators seat) or as Short Version HC 600 S+. The automatic foot control AFC allows one-man-operation. Cable burster TERRA-EXTRACTOR X...

For smaller applications, the TERRA MINI-JET and TERRA MINI-JET/LV are available, starting their drilling operation in a pit. The TERRA MINI-JET/LV can also be started from the surface. The TERRA MINI-JET produces thrust and pullback forces of 8 tons and torques up to 1600 Nm. As compact HDD systems they are unbeatable. All TERRA-JET models can be modified to the system TERRA-ROCK. The TERRA-ROCK operates without any Bentonite (drilling fluid). It can provide HDD bores in nearly every ground condition, even stone and rock. The following TERRA-JET systems are available: TERRA MINI-JET TERRA...
