TEREX Mobile Processing Equipment
Crushing - J1175 Jaw Crusher

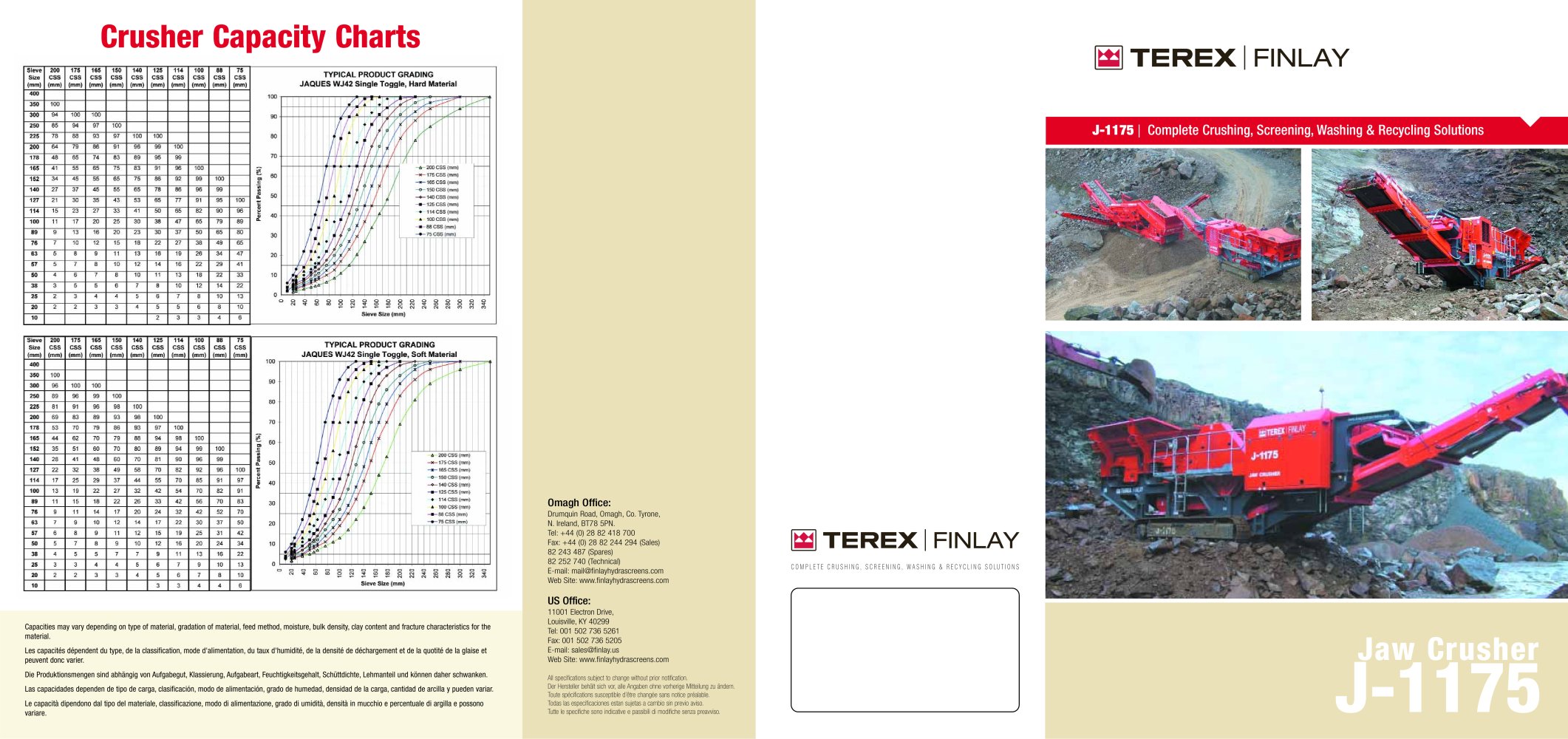

Crushing - J1175 Jaw Crusher

Product catalog summary

Overview
The document provides detailed specifications and features of the J-1175 Jaw Crusher, a product designed for complete crushing, screening, washing, and recycling solutions. It includes contact information for offices in Northern Ireland and the US.

Key Features

Rapid set-up time and high throughput with a large reduction ratio.
Full galvanised access platforms around the crushing chamber and power unit.
Grizzly feeder with integrated pre-screen and selectable discharge to by-pass or main conveyor.
Two-speed tracks with 'soft start' and optional full remote control.
Advanced electronic control system.

Jaw Chamber Specifications

Single toggle jaw chamber with dimensions of 1070 x 762mm (42” x 30”).
Hydrostatic drive with reversible action for clearing blockages.
Hydraulically adjustable closed side setting.

Technical Specifications

Hopper capacity: 9m3 (11.7yd3).
Engine type: CAT C9, power rating 261kW @ 1900 rpm (350HP).
Product conveyor: 1000mm (40”) 3 Ply Grade X.
By-pass conveyor: 650mm (26”) 3 Ply.
Portability: Track mounted.
Weight: 52 tonnes (57.2 US) fully loaded.

Dimensions

Working Position: Length 15.7m (51’ 8”), Width 4.26m (14’), Height 3.6m (12’).
Transport Position: Length 14.5m (47’ 8”), Width 2.9m (9’ 6”), Height 3.49m (11’ 6”).
Transport Position with Wheeled Bogie: Length 14.5m (47’ 8”), Width 2.9m (9’ 6”), Height 3.8m (12’ 6”).

Additional Information
All specifications are subject to change without prior notification. The document is available in multiple languages, indicating a global market presence.

Catalog excerpts

1070 mm x 762EinschwingerBackenbrecher Hydrostatischer Antrieb Vor- und rckwrtslaufenderBackenbrecher > Rapid set-up time Mise en service rapide Kurze Aufrstzeiten Tiempo de montaje rpido. Rapidit졠 di installazione e set up (1070 x 762 mm) Un fusible Accionamiento hidro -esttico. High throughput and large reductionratio Production levᩩe et fort pourcentagede rduction Hohe Durchsatzleistung mit grossemZerkleinerungsgrad Alto rendimiento y proporcin dereducci鳳n grande Elevata capacit produttiva coneccellente riduzione Technical Specifications > Accin reversible paralimpiar obstrucciones Hopper...
