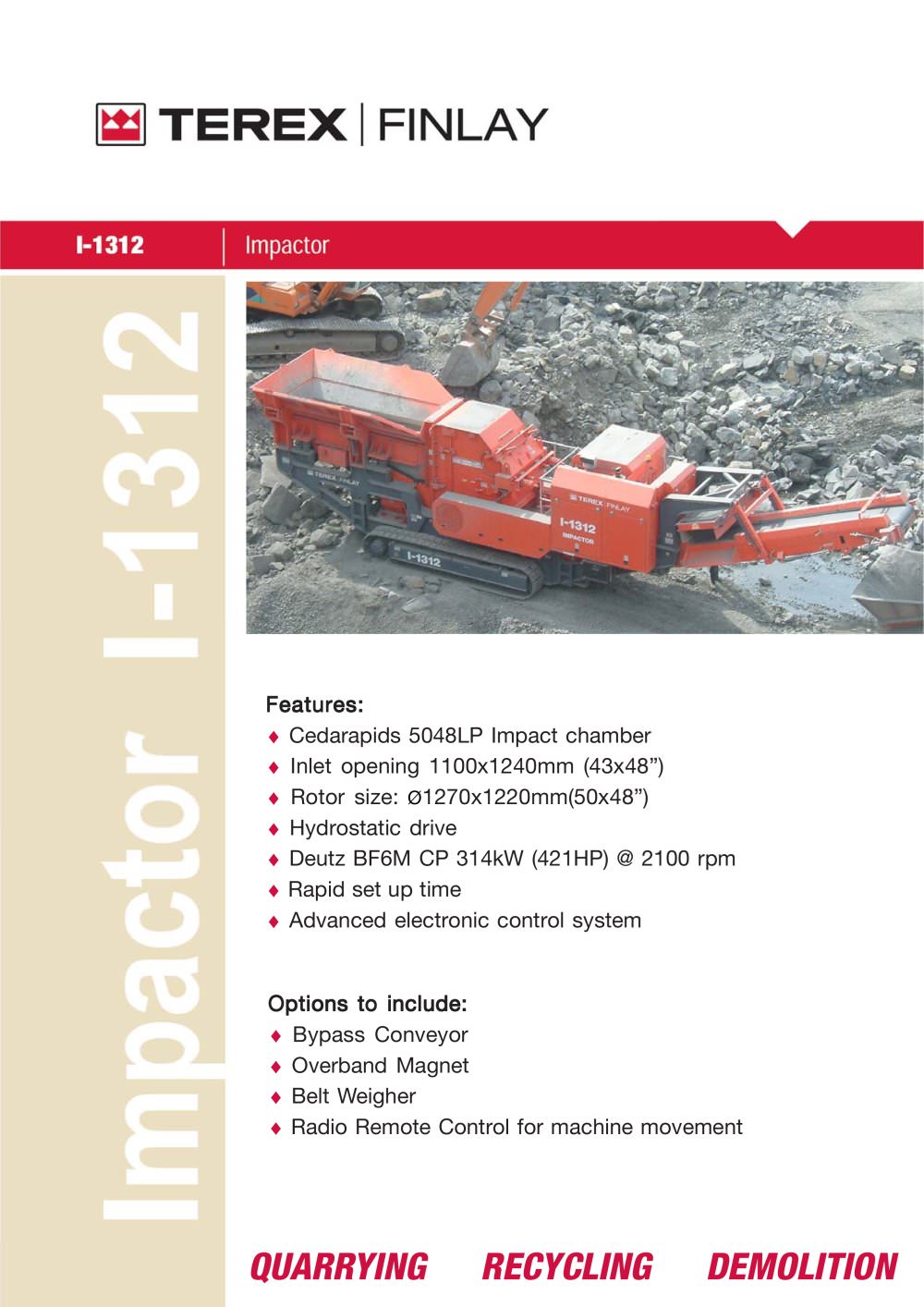

• Cedarapids 5048LP Impact chamber with an inlet opening of 1100x1240mm (43x48”) and a rotor size of Ø1270x1220mm (50x48”).
• Hydrostatic drive powered by a Deutz BF6M CP engine delivering 314kW (421HP) at 2100 rpm.
• Rapid setup time and an advanced electronic control system.

• Bypass Conveyor
• Overband Magnet
• Belt Weigher
• Radio Remote Control for machine movement

TEREX Finlay, Drumquin Road, Omagh, Co.Tyrone, N. Ireland, BT78 5PN
Tel: +44 (0) 28 82 418 700
Fax: +44 (0) 28 8224 4294 (Sales), 8224 3487 (Spares), 8225 2740 (Technical)
Email: [email protected]
Website: www.finlayhydrascreens.com

• Transport Dimensions: 14.8m (48’ 8”) Long x 2.9m (9’ 6”) Wide x 3.65m (11’ 7”) High
• Hopper: 9m³ (11.7yd³) capacity with hydraulic folding sides and Hardox side walls.
• Grizzly Feeder: Integral screen with direct hydraulic drive.
• By-pass Conveyor: 650mm (26”) belt with left or right discharge.
• Undercarriage: 3780mm (12’ 5”) centres with 500mm (20”) shoe and dual speed.
• Catwalks: Fully galvanised with access to all key areas.
• Powerunit/Hydraulics: Deutz BF6M 1015 CP engine with hydrostatic hydraulic system.
• Impact Chamber: Cedarapids 5048LP with hydrostatic drive.
• Product Conveyor: 1000mm (40”) Ripstop belt with Hardox liners at feedpoint, hydraulically lowered top section, and folding head section for transport. Discharge height is 3660mm (12’).
• Electronic Control System: Advanced CANBUS compliant system with a large operator screen (IP67 rated) and five simple operating modes with a menu-driven graphic user interface.
