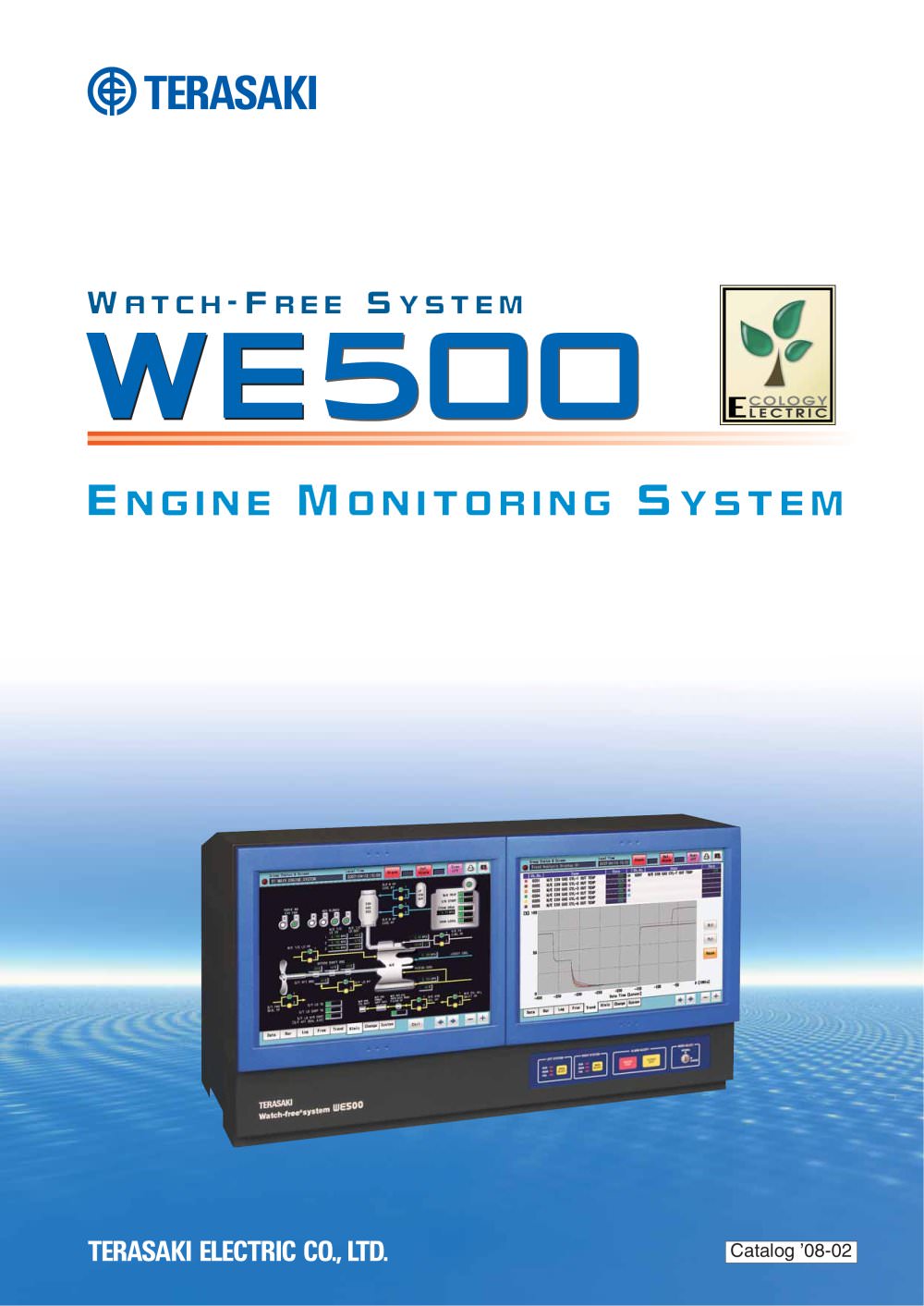

Overview: The document is a technical catalog for a monitoring system, detailing enhancements and features of the system, including specifications, functionalities, and system configurations.

Specifications: The system features a larger LCD screen, increased resolution, and expanded color display capabilities. It supports up to two external LCDs. The system operates with a dual hot standby configuration for reliability and has a compact design to minimize installation space.

Functionalities: Key functionalities include a download feature for on-site modification of monitoring points, enhanced trend analysis display for real-time data viewing, and a hardcopy function for screen printing. Remote control capabilities are available for pumps and valves via mimic screens.

System Configuration: The system supports various communication protocols, including RS-485 and Ethernet, and can connect to multiple external devices such as alarm boxes and control panels. It includes a 32-bit RISC CPU with dual hot standby and supports a range of input/output points.

Standards and Compliance: The system complies with several classification societies, including NK, LRS, ABS, DNV, and GL. It operates within specified temperature and humidity ranges without condensation.

Additional Features: The system includes a touch panel operation interface, with an optional trackball, and supports a TERASAKI extension alarm system. It also provides detailed logging and alarm functionalities, including high/low alarms and deviation alarms.
