HTT-900

HTT-900

HTT-900

Product catalog summary
Overview
The HTT-900 personal role radio provides secure voice and data communication for team members. It supports full duplex, priority-based voice conferencing, allowing multiple simultaneous speakers. The radio utilizes ad-hoc networking with multi-hop voice and data capabilities, featuring self-synchronization technology for rapid network synchronization without external sources.
Application Scenario
The radio enhances situational awareness and operational effectiveness in challenging field conditions. It supports ad-hoc networking with automatic multi-hop services, enabling group and all-call functionalities across four groups.
Situational Awareness
An application on the intelligent terminal allows team members to share GPS positions, mark targets, erase parameters remotely, and send SMS and multimedia information. It also supports intelligence gathering, position tracking, and command functions on a map.
Specifications
  • Frequency Range: 350-450MHz
  • Bandwidth: 20kHz, 75kHz
  • Data Rate: ≤60kbps
  • Data Interface: TTL serial port, WLAN, and Bluetooth
  • COMSEC: AES-256
  • Weight: ≤370g (with battery and antenna)
  • Sensitivity: ≤–118dBm@BW=20kHz, ≤–110dBm@BW=75kHz
  • Storage Temperature: -40°C to 70°C
  • Operating Temperature: -30°C to 60°C
  • Environmental Standard: MIL-STD-810G
  • Networking Capability: 24-node, 3-hop
  • Electromagnetic Standard: MIL-STD-461F
  • Dimensions: 152 x 62.5 x 37 mm (without antenna)
  • Immersion: 2 m, 4h
  • Output Power: Up to 3W
Voice Communications
The radio supports up to 6 simultaneous speakers with net call and group call PTT functionalities.
Accessories
  • Antenna
  • Charger
  • Power Adapter (2400mAh)
  • Ruggedized Headset
  • Wireless PTT
  • Belt Clip
  • Carrying Case
Contact Information
Teltronic S.A.U. Headquarters, Polígono Malpica, C/F West, 50016 Zaragoza, Spain. Email: [email protected]
See more

Catalog excerpts

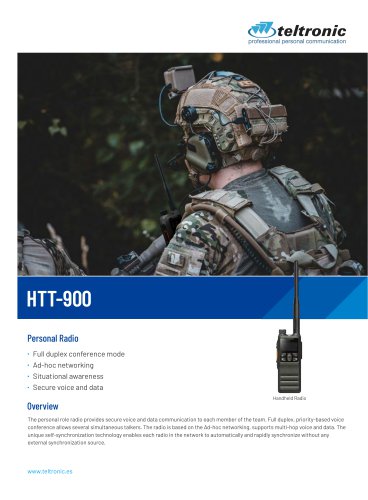

HTT-900-1

professional personal communication Full duplex conference mode Ad-hoc networking Situational awareness Secure voice and data Handheld Radio The personal role radio provides secure voice and data communication to each member of the team. Full duplex, priority-based voice conference allows several simultaneous talkers. The radio is based on the Ad-hoc networking, supports multi-hop voice and data. The unique self-synchronization technology enables each radio in the network to automatically and rapidly synchronize without any external synchronization source.

 Open the catalog to page 1
HTT-900-2

This radio offers Ad-hoc networking capabilities including automatic multi-hop services for voice and data, significantly enhancing situational awareness and operational effectiveness over harsh field conditions. The team can be divided into 4 groups to share network and realize group call and all call. The situational awareness APP runs on the intelligent terminal. Through the transmission channel provided by the personal role radio, team members can use function such as sharing GPS position, target marking,remote parameter earsing, SMS and multimedia information sending intelligence, position...

 Open the catalog to page 2

All TELTRONIC catalogs and technical brochures

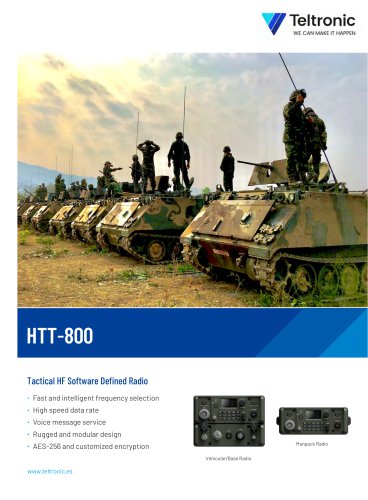

  1. HTT-800
