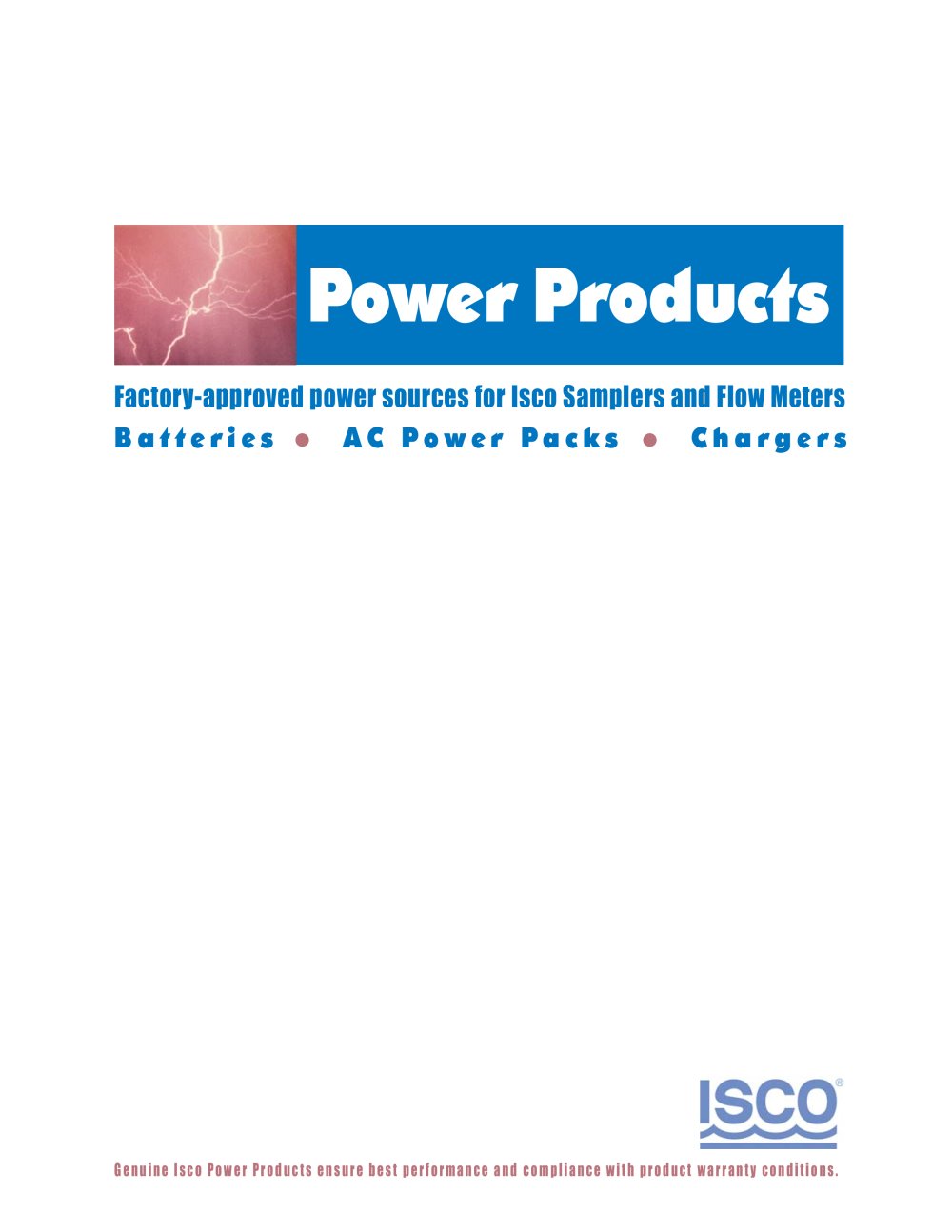

B a t t e r i e s • AC Power Pa c k s • C h a r g e r s Power Products Factory-approved power sources for Isco Samplers and Flow Meters G e n u i n e I s c o P o w e r P r o d u c t s e n s u r e b e s t p e r f o r m a n c e a n d c o m p l i a n c e w i t h p r o d u c t w a r r a n t y c o n d i t i o n s .

Open the catalog to page 1

2 Lead-Acid Batteries Isco Lead-Acid Batteries are best wherever portable standby power is required. They have a very low self-discharge rate and outperform Ni-Cad batteries in applications where battery power is used sporadically over long periods of time. All are environmentally sealed and maintenance-free. Fluid level checks and refilling are not required. Recommended for: Sites with intermittent or sporadic activity - stormwater runoff monitoring, inflow & infiltration (I&I) studies, combined sewer overflow (CSO) monitoring, etc. Model 947 Isco Part No. 60-3114-011 Model 945 Isco Part...

Open the catalog to page 3

3 High-capacity Power Packs Our rugged, High capacity Power Packs safely and reliably convert available AC voltage to DC power. Not battery-backed. Intended for use only where a reliable AC power source exists. Model 913 Isco Part #60-1684-088 UL and cUL listed. Model 923 Isco Part #60-3004-190 Built-in Battery Charger Use the Power Pack to charge a battery while it supplies DC current to your equipment. Environmentally Sealed From the case and connectors to the electronics, Isco Power Packs withstand the harshest conditions. Recommended for: Fixed Installations and/or sites with reliable...

Open the catalog to page 4

4 Battery-backed Power Packs Isco Battery-backed Power Packs assure that your equipment will keep running if AC line voltage is interrupted. Battery Backup The built-in 1.2 AHr nickel-cadmium battery runs your equipment if AC power is interrupted. Benchmark Reliability Our field-proven design assures dependable operation for years to come. Model 914 Isco Part #60-3004-130 UL and cUL listed. Model 924 Isco Part #60-3004-160 Recommended for: Fixed installations and/or sites with available AC power Sites with an unreliable AC power supply Input 120V AC 240V AC Voltage 50 or 60 Hz 50 or 60 Hz...

Open the catalog to page 5

5 Chargers with Amphenol Connectors Model 961 Isco Part #60-3004-059 This charger efficiently charges a single Isco Model 934 nickel-cadmium battery. Model 963 Isco Part #68-3004-198 Intended for use with Isco lead-acid batteries only. UL Listed. * Contact factory for 240V AC 50 Hz input voltage. Automatic Temperature Compensation Temperature-compensated, fan-cooled electronics automatically adjust to assure accurate charging. Rugged Design A tough metal case and sturdy connectors deliver reliable performance and long life under demanding conditions. Model 965 Isco Part # 68-3000-965...

Open the catalog to page 6

6 Clamp-on Style 12V Charger Fully Automatic This unit constantly monitors 12 volt/6 Amp charge status, shuts down when charging is complete, and gives notification via LED. Polarity Protection Special circuitry prevents charger or battery damage if improperly connected. 12 Volt, 6 Amp Isco Part #68-3004-198 Specifically compatible with Isco Model 948 Batteries. UL listed. Isco Solar-powered Chargers deliver energy in long-term applications where AC power isn’t available. Units are selected from a variety of solar panel options to best suit your specific application. Contact Isco or your...

Open the catalog to page 7

Teledyne Isco, Inc. 4700 Superior Street Lincoln, NE 68504 USA Phone: (402) 464-0231 USA & Canada: (800) 228-4373 fax: (402) 465-3022 e-mail: iscoinfo@teledyne.com website: www.isco.com Isco reserves the right to change specifications without notice. ©2009 Teledyne Isco, Inc. • Printed in U.S.A. • L-0104 • Rev. 8/09 Appropriate Battery Model Ni-Cad Lead-Acid 934 945 946 947 948 * Isco Power Pack Models 913 and 923 include battery charging capability. † Requires Lantern Battery Charger Adapter. Isco Part #60-2004-040. Recommended Requires Connector # 60-311-4015 Charger and Power Pack*...
