Model 1000D Syringe Pump
2Pages

{{requestButtons}}

Catalog excerpts

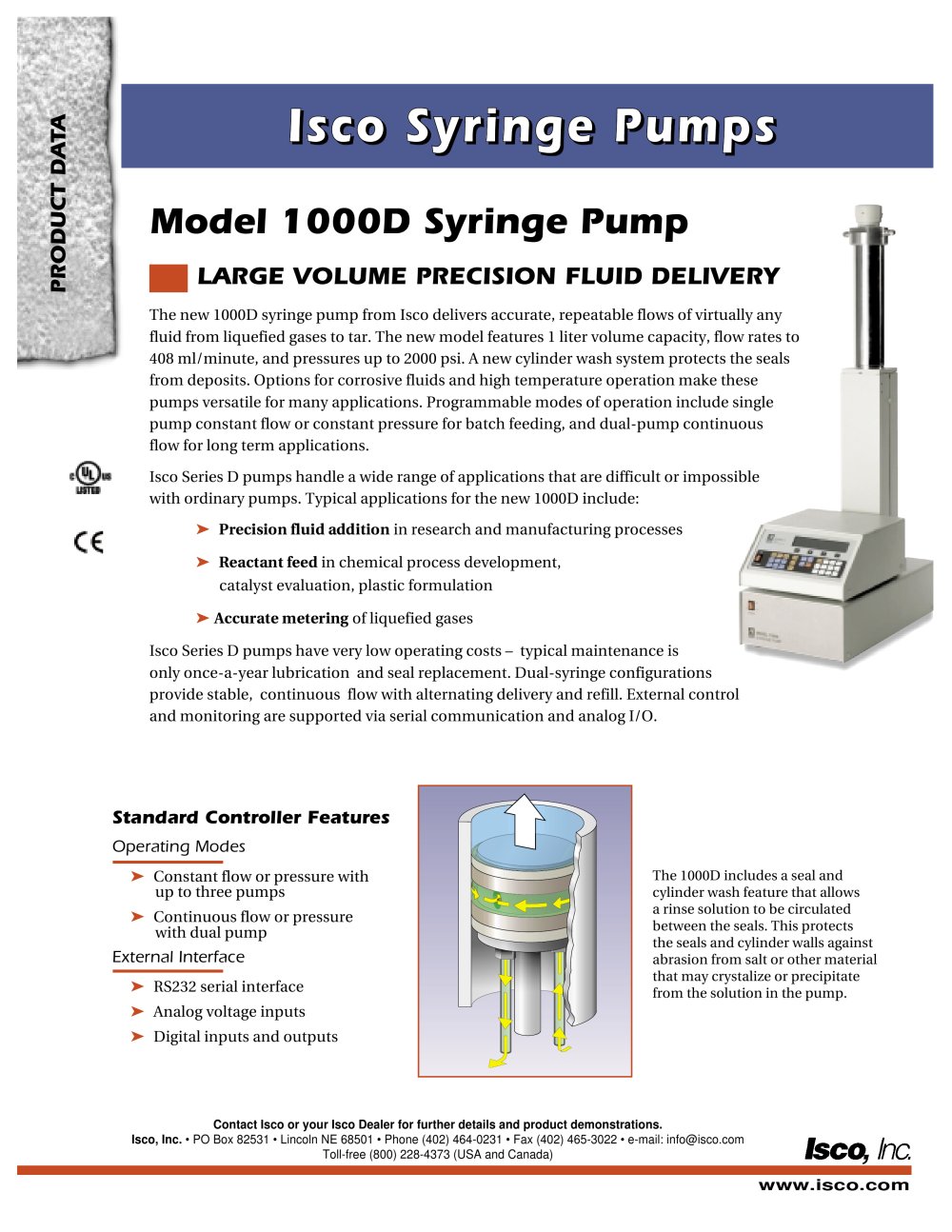

Model 1000D Syringe Pump - 1

Model 1000D Syringe Pump LARGE VOLUME PRECISION FLUID DELIVERY The new 1000D syringe pump from Isco delivers accurate, repeatable flows of virtually any fluid from liquefied gases to tar. The new model features 1 liter volume capacity, flow rates to 408 ml/minute, and pressures up to 2000 psi. A new cylinder wash system protects the seals from deposits. Options for corrosive fluids and high temperature operation make these pumps versatile for many applications. Programmable modes of operation include single pump constant flow or constant pressure for batch feeding, and dual-pump continuous flow for long term applications. Isco Series D pumps handle a wide range of applications that are difficult or impossible with ordinary pumps. Typical applications for the new 1000D include: . Precision fluid addition in research and manufacturing processes . Reactant feed in chemical process development, catalyst evaluation, plastic formulation . Accurate metering of liquefied gases Isco Series D pumps have very low operating costs – typical maintenance is only once-a-year lubrication and seal replacement. Dual-syringe configurations provide stable, continuous flow with alternating delivery and refill. External control and monitoring are supported via serial communication and analog I/O. PRODUCT DATA Contact Isco or your Isco Dealer for further details and product demonstrations. Isco, Inc. • PO Box 82531 • Lincoln NE 68501 • Phone (402) 464-0231 • Fax (402) 465-3022 • e-mail: info@isco.com Toll-free (800) 228-4373 (USA and Canada) www.isco.com The 1000D includes a seal and cylinder wash feature that allows a rinse solution to be circulated between the seals. This protects the seals and cylinder walls against abrasion from salt or other material that may crystalize or precipitate from the solution in the pump. Standard Controller Features Operating Modes . Constant flow or pressure with up to three pumps . Continuous flow or pressure with dual pump External Interface . RS232 serial interface . Analog voltage inputs . Digital inputs and outputs IIsco Syrr iinge Pumps
