Isco 3710C Compact Portable Composite Sampler

Isco 3710C Compact Portable Composite Sampler
2Pages

Catalog excerpts

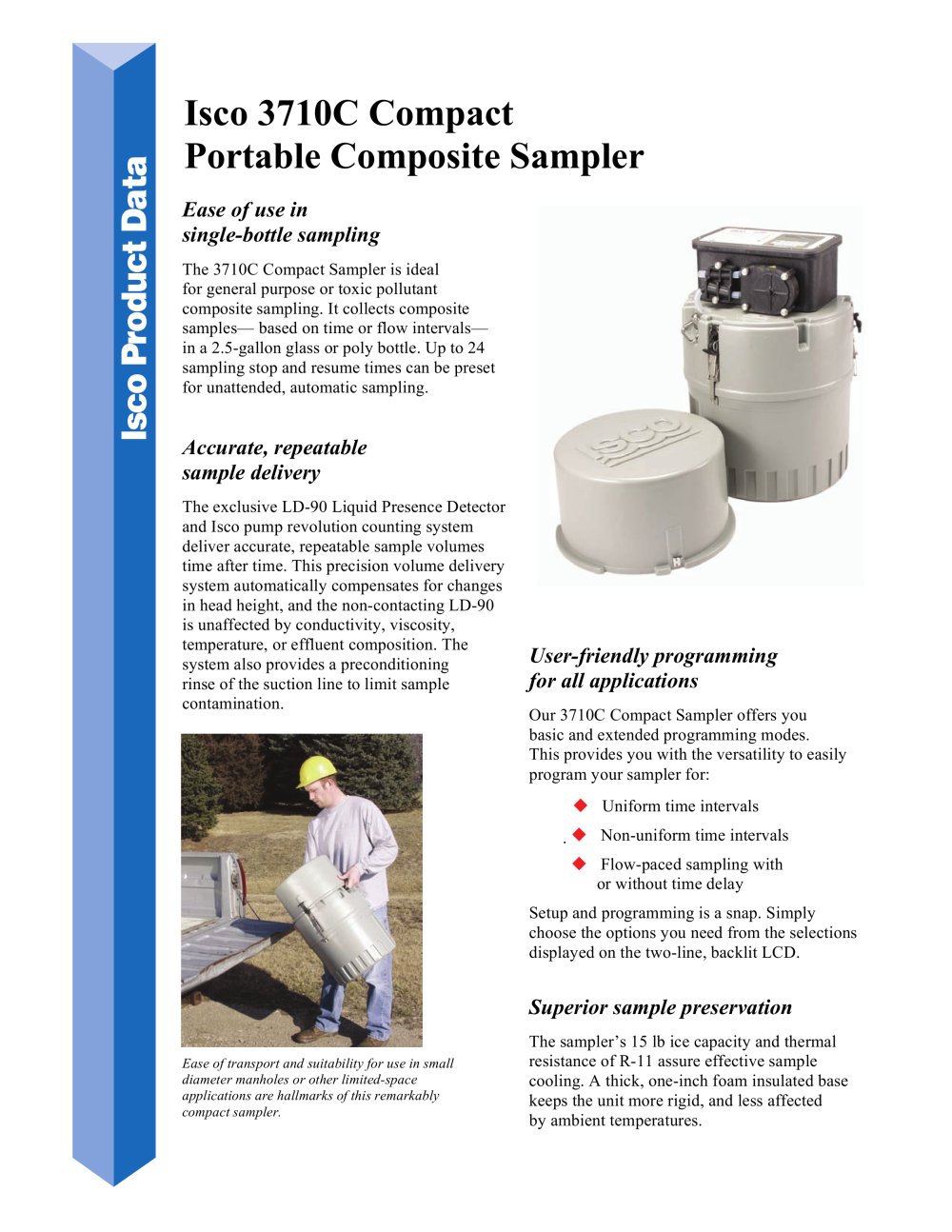

Isco 3710C Compact Portable Composite Sampler - 1

Ease of use in single-bottle sampling The 3710C Compact Sampler is ideal for general purpose or toxic pollutant composite sampling. It collects composite samples— based on time or flow intervals— in a 2.5-gallon glass or poly bottle. Up to 24 sampling stop and resume times can be preset for unattended, automatic sampling. Accurate, repeatable sample delivery The exclusive LD-90 Liquid Presence Detector and Isco pump revolution counting system deliver accurate, repeatable sample volumes time after time. This precision volume delivery system automatically compensates for changes in head height, and the non-contacting LD-90 is unaffected by conductivity, viscosity, temperature, or effluent composition. The system also provides a preconditioning rinse of the suction line to limit sample contamination. Ease of transport and suitability for use in small diameter manholes or other limited-space applications are hallmarks of this remarkably compact sampler. User-friendly programming for all applications Our 3710C Compact Sampler offers you basic and extended programming modes. This provides you with the versatility to easily program your sampler for: .. Uniform time intervals ƒn.. Non-uniform time intervals .. Flow-paced sampling with or without time delay Setup and programming is a snap. Simply choose the options you need from the selections displayed on the two-line, backlit LCD. Superior sample preservation The sampler’s 15 lb ice capacity and thermal resistance of R-11 assure effective sample cooling. A thick, one-inch foam insulated base keeps the unit more rigid, and less affected by ambient temperatures. Isco 3710C Compact Portable Composite Sampler

Open the catalog to page 1

Isco 3710C Compact Portable Composite Sampler - 2

Teledyne Isco, Inc. 4700 Superior Street Lincoln NE 68504 USA Phone: (402) 464-0231 USA and Canada: (800) 228-4373 Fax: (402) 465-3022 E-Mail: iscoinfo@teledyne.com Internet: www.isco.com Isco reserves the right to change specifications without notice. ©2006 Teledyne Isco, Inc. • L-1124 • 04/06 3710c Sampler Height: 27.75 in (70.5 cm) Diameter: 17.75 in (45.1 cm) Weight: (Dry, less battery) 32 lbs (14.5 kg) Bottle Types: 2.5-gallon, polypropylene or glass Ice capacity: 12 to15 lbs (5.4 to 6.8 kg) Sample cooling: 39°F (4°C) (w/glass bottle, maximum ice capacity, and 75°F ambient temperature)...

Open the catalog to page 2
